China Professional Conveying Equipment Bucket Elevator for Powder
- Shanghai Qingdao Tianjin
- T/T Credit Card PayPal
You May Like
-
Sand Bucket Elevator,fertilizer Bucket Elevator, Elevating Conveyer
-
Bucket Lift Conveyor, Bucket Lifting Conveyor Price
-
Vertical Lifting Conveyor,bucket Chain Conveyor, Lift Conveyor
-
Vertical Lift Conveyor,feeding Conveyor,portable Conveyor for Truck Unloading
-
Mining Ore Bucket Elevator,vertical Bucket Elevator,bucket Elevator for Sale
-
Vertical Bucket Conveyor With Best Quality
Product Details
| Place of Origin | Henan, China | Brand Name | Huahong | |
| Model Number | 160 |
bucket elevator packed by standard export package or in wood case or nude packing
Product Description
1. Application of Bucket Elevator
Bucket Hoist /elevator Conveyor designed for vertical transportation powder, granular materials and small block and grinding of small materials, such as: coal, cement, stones, sand, clay, ore and so on. or other industries of dry mortar for construction, chemistry and foodstuff.
It is widely used in metallurgy, chemical industry, building materials, mine, grain and vegetable oil, food, fodder, plastic and medicine etc.Usually, a vertical bucket elevator consists of head section with driving pulley, elevator boot (down section)with take-up pulley, elevator casing, driving device with back stop.
2. Advantage of Bucket Elevator
The bucket hoist conveyor has the advantages of big conveying capacity, high hoisting height,stable and reliable running and long service life. The machine is applicable for the crushed materials, and block materials, such as coal, cement, block,sand, clay and ore. The bucket elevator is allowed to convey materials with hightemperature when armed with special circle chain tructure.
3.Main technical parameters of bucket elevator:
| Model | 160 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Max. hoisting height(m) | 28 | 31.5 | 30.16 | 30.16 | 31 | 32 | 32.7 | 32.7 |
| Conveying capacity(m³/h) | 3-8 | 6-15 | 10-25 | 25-35 | 19-40 | 35-50 | 42-60 | 58-70 |
| Pitch of buckets(mm) | 500 | 500 | 500 | 500 | 600 | 600 | 600 | 600 |
| Motor power(kw) | 3-7.5 | 3-7.5 | 4-11 | 5.5-15 | 7.5-18.5 | 7.5-22 | 7.5-30 | 11-37 |

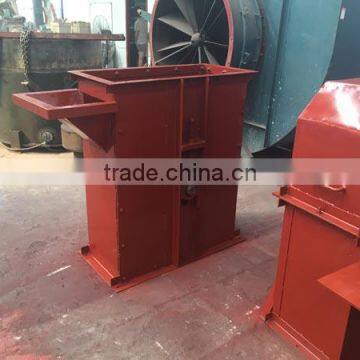

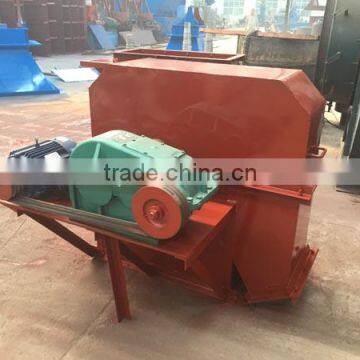

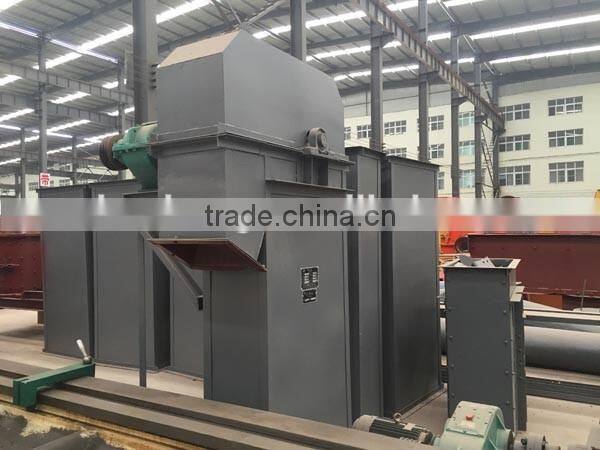

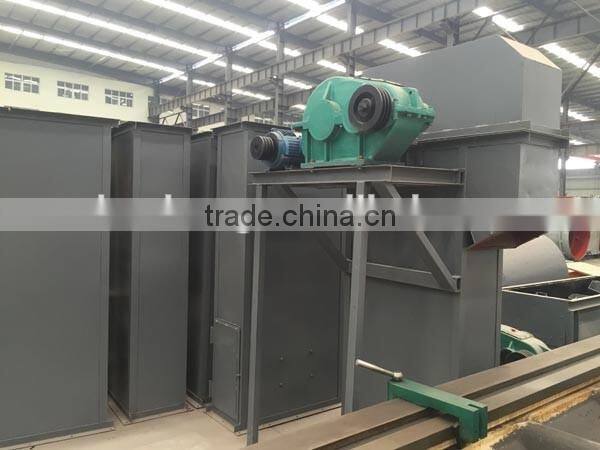

Pictures show of bucket elevator:

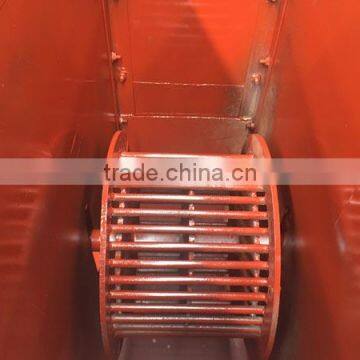

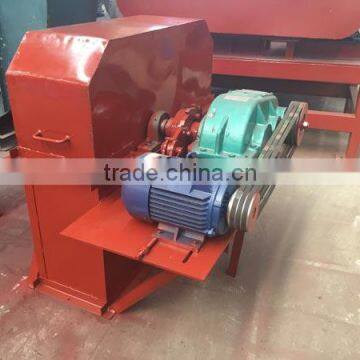

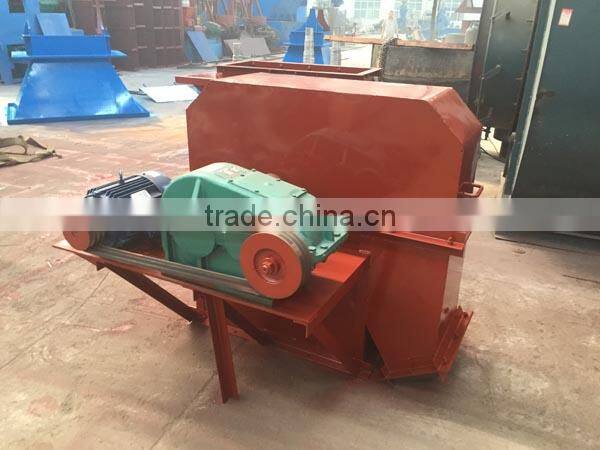

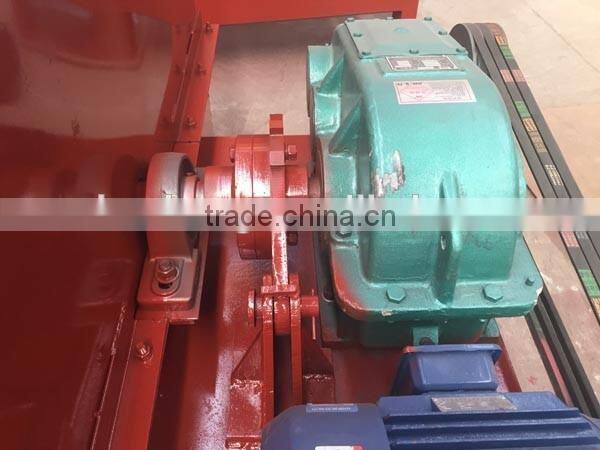

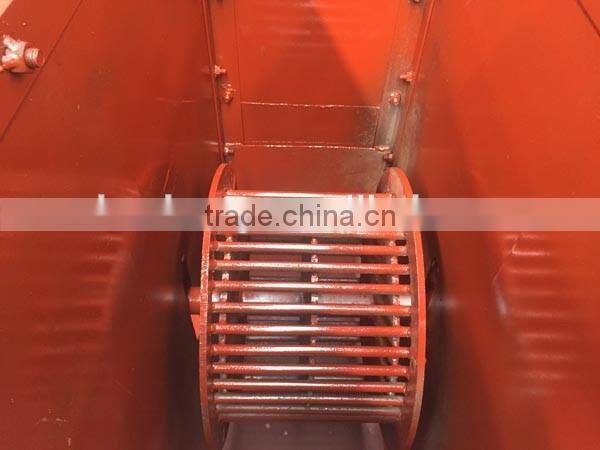

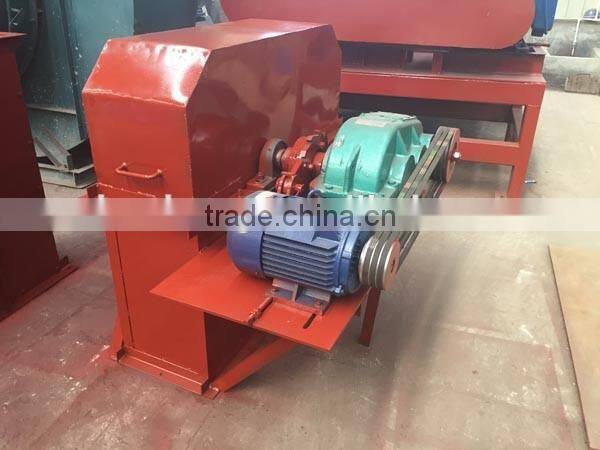

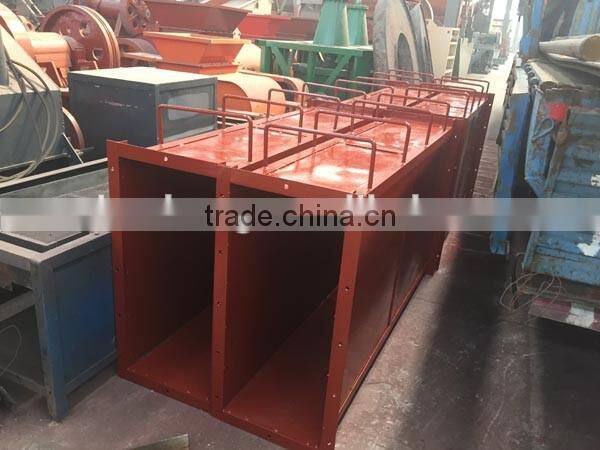

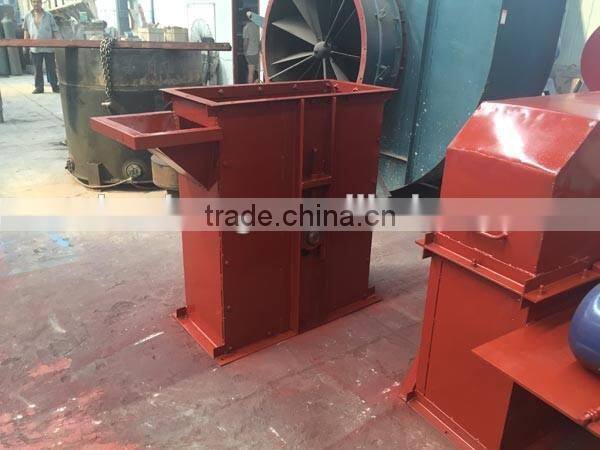

Bucket elevator details show:

| Packing details | standard export packing; nude packing, wood case package |
| Delivery time | within 5 - 25 days after order confirmed |
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4>.We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.

Zhengzhou Huahong Machinery & Equipment (Group) Co., Ltd. is located in National Hi-Tech Industrial Development Zone of Zhengzhou City, Henan Province, Our products passed the ISO9001 international quality system certification. It has won the glory of provincial superior enterprise. Huahong company's quality of products have been in a leading and dominant position in machinery industry of China. Its high-quality products and first-class services were also have been praised by overseas and domestic customers.

Contact Person: Linda
Skype: huahongmachine05
Tel/WhatsApp: +86 15093303198
Company Profile
Zhengzhou Huahong Machinery Equipment Co., Ltd. is located in Zhengzhou National Hi-Tech Industrial Development Zone, Henan Province. Our company has passed ISO9001 international quality system certification. Our company has two industrial plants of 10,000 square meters and we have 200 sets of large and medium-sized processing, welding and assembly equipment, with the maximum lifting capacity of 150 tons. Our company mainly produces all kinds of jaw crushers, impact crushers, cone crushers, hammer crushers, Raymond mills, sand making machines, mineral processing equipment, milling machines, ball mills, and building material equipment. Stone Production Line: mobile crushers, vertical compound crushers, roll crushers, roller crushers, impact crushers, impact crushers, hammer crushers, jaw crusher machines, efficient crushing machines, spiral stone washing machines, high efficiency sand washing machines, sixth generation sand products, hammer crushers, cone crushers and others. Mineral production equipment: pressure machines, cylinder cooling machines, dryer belts, vertical dryers, rotary drum dryers, high frequency screens, spiral classifiers, flotation machines, dry magnetic separators, wet magnetic separators, ceramic ball mills, tube mills, energy saving ball mills and others. Building equipment: cement production lines, cement mills, separators, rotary kilns, vertical coolers, vertical preheaters, 8-15 automatic hydraulic block making machines, 6-15 automatic block making machines, pulping machines, casting machines, steam curing cars, autoclave reactors, concrete block cutting machines, aerated concrete production lines and others. Common equipment: feeders, pendulum feeders, ultrafine mills, screw conveyors, Raymond mills, vibrating screens, stone vibrating screens, electromagnetic vibrating feeders, TH ring chain bucket elevator machines, TD belt elevators, belt conveyors, scraper conveyors and others. We have won a good reputation among customers with good quality, competitive prices and advanced techniques since our establishment. We have 22 existing senior engineers, 30 engineers, 70 senior technicians and more than 800 employees. The Chief Engineer of China Machinery Industry has designed and developed several generations of leading crushers, sand (sand) machines and others for our company. Our company has introduced these products in recent years. Our products are popular in the United States, Germany and other countries and regions around the world. We have advanced equipment and techniques. Since our inception, we have been sticking to our motto of "product update and advanced processing equipment and exquisite craft, rigorous inspection and testing, providing customers with quality products, and to obtain users' favor". Our products are exported worldwide. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
