Home > Products > Pavement Machinery > 2Y8X10B Double Drum Static Road Roller

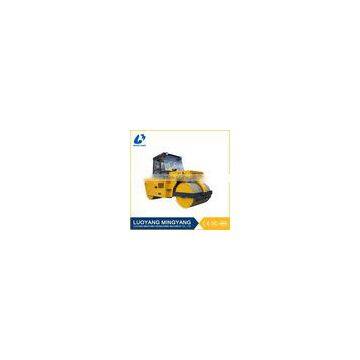

2Y8X10B Double Drum Static Road Roller
- Shanghai/Qingdao/Tianjin
- T/T
You May Like
Product Details
| Condition | New | Type | Double Drum Roller | |
| Static Linear Pressure | - | Travel Speed | 4 km/h | |
| Grade Ability | 20 % | Place of Origin | Henan, China | |
| Brand Name | YTO | Model Number | 2Y8X10B | |
| Power(W) | 36.75 Kw | Dimension(L*W*H) | 4500*1580*2660 | |
| Weight | 10000 Kg | Certification | CE & ISO9001 Certification | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2Y8X10B Double Drum Static Road Roller
Tandem static rollers are of mechanical travel drive, suitable for compaction of
various stabilized soils and bituminous concrete and etc. On road surface
construction, which are ideal compaction equipments for highway, municipal road
and industrial ground.
Main Features:
1. Mechanical travel drive and hydraulic power steering with reliable and stable performance.
2. Steering drum installed on rectangular frame with low center of gravity and high stability.
3. Narrow front frame and spacious driver’s cabin with excellent steering visibility.
4. Scrapers and sprinkling devices on all drums.
Technical Specifications:
Model | 2Y8X10B | |
Operating mass (kg) | Without ballast | 8000 |
With ballast | 10000 | |
Front axle load (kg) |
| 3800 |
Rear axle load (kg) |
| 6200 |
Front linear load (N/cm) | Without ballast | 230 |
With ballast | 310 | |
Rear linear load (N/cm) | Without ballast | 410 |
With ballast | 500 | |
Travel speeds (km/h) | 1st gear | 2.0 |
2nd gear | 4.0 | |
Grade ability (°) |
| 20 |
Turning radius (mm) | Inside | 5230 |
Outside | 6500 | |
Overall length (mm) | 4500 | |
Overall width (mm) | 1580 | |
Overall height (mm) | 2660 | |
Front wheel size (mm) | 1270 | |
Rear wheel size (mm) | Width | 1020 |
Diameter | 1270 | |
Width | 1320 | |
Wheel base (mm) | Diameter | 1270 |
Ground clearance (mm) | 320 | |
Engine model | 495AY | |
Diesel power (kw) | 36.75 | |
Diesel speed (r/min) | 2000 | |
Fuel tank capacity (L) | 150 | |
Electrical voltage (V) | 12 | |
Hydraulic tank capacity(L) | 50 | |
