LT216S 16t Single Drum Vibroroll

FOB Price

US$ 5,000 - 100,000 / Set

1 Set(Min. Order)

Port Shanghai/Tianjin/Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Single Drum Roller
Static Linear Pressure	378 N/cm	Travel Speed	2~10.5 Km/h
Grade Ability	35 %	Place of Origin	Henan, China
Brand Name	LuYang	Model Number	LT216S
Power(W)	105 Kw	Dimension(LWH)	5860X2280X3020
Weight	16000 Kgs	Certification	ISO9001 Certification
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

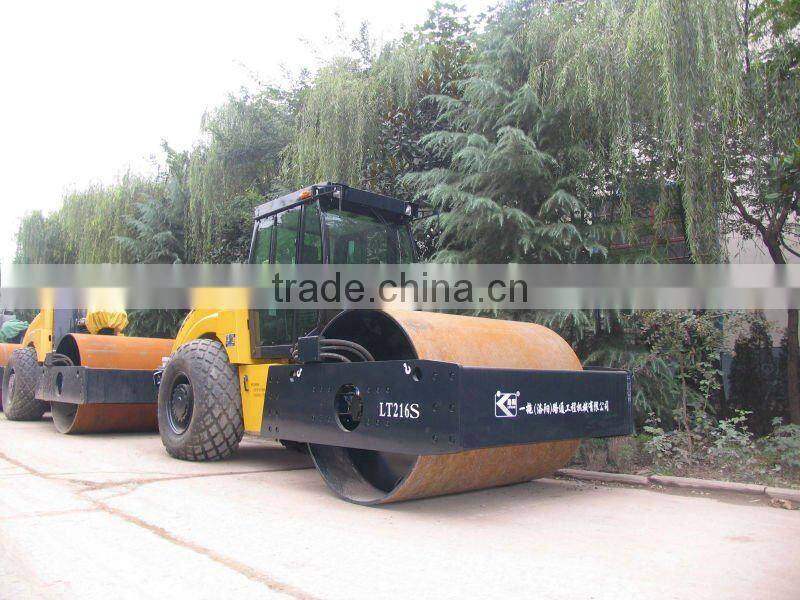

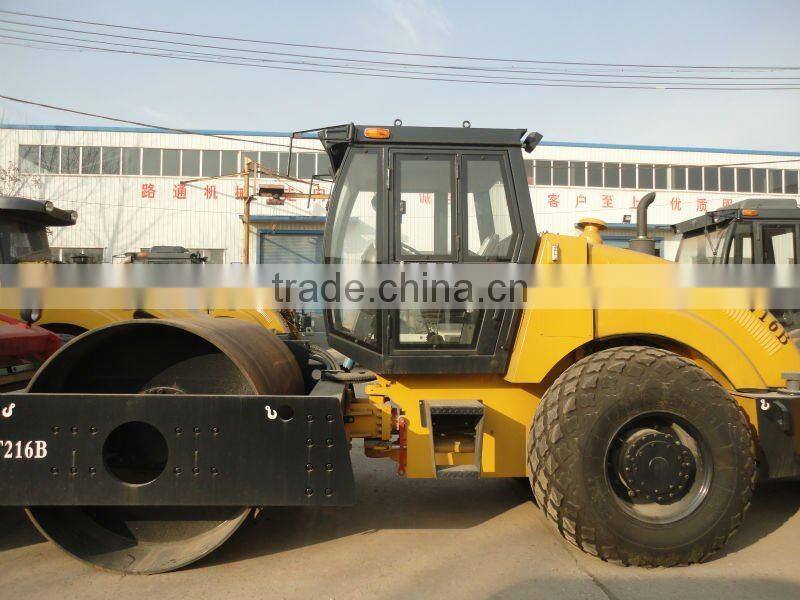

LT216S 16t Single Drum Vibroroll

LT216S Heavy duty vibratory rollers effect powerful centrifugal force and great static linear load. They are suitable for non-cohesive materials, such as sandy soil, gravel, crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbors, railways and industrial areas etc.

Main Features:

Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.
Reliable Cummins 6BT5.9 diesel engine for convenient operation and maintenance.
Two sets of brake devices, a hand brake and foot pedal brake, assure the machine’s safety and dependability.
Spacious and comfortable cab mounted on top quality rubber damping elements.
World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.

Main Technical Specifications:

Model	Unit	LT216S
Operating mass	Kg	16000
Static linear load	N/cm	380
Vibration amplitude	Mm	1.7/0.9
Vibration frequency	Hz	30
Centrifugal force	KN	320/180
Travel speed
1st	km/h	2.0
2nd	km/h	4.0
3rd	km/h	10.5
Grade ability	%	30
Steering angle	°	35
Turning radius	mm	7000
Vertical oscillation		8
Overall dimension	mm	6025X2280X3050
Min. ground clearance	mm	432
Electrical voltage	V	24
Drum width	mm	2100
Drum diameter	mm	1570
Drum rim thickness	mm	24
Type size		23.1-26
Wheelbase	mm	3265
Diesel engine model		6BT5.9
Diesel power	Kw	105
Fuel tank capacity	L	220
Hydraulic tank capacity	L	160
Diesel speed	r/min	2000
