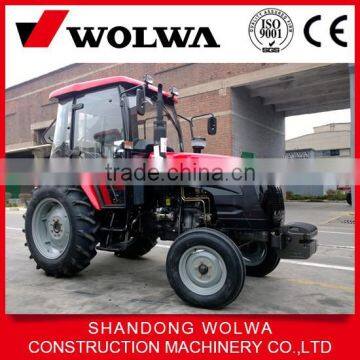

2t agricultural mini tractor with dual-stage clutch for sale in china

Model

GN600

General Specifications

Type

4x2

Overall dimensions LxWxH(mm)

3829×1708×2200/2550

Constructional weight(kg)

1875/2255

Rated traction force(kn)

9.7

Wheel base(mm)

2044

Front wheel tread(mm)

1270(1270-1670)Adjustable

Rear wheel tread(mm)

1320(1220-1620)Adjustable

Min.land clearance(mm)

420

Min.quality in use(kg)

2109/2415

Front wheel tyre size

6.5-16

Rear wheel tyre size

13.6-28

Min.turning radius(mm)Unilateral Braking/Unilateral Nonbraking)

4.1/3.4

Engine

Model

YTR4105T91A

Type

Straight line,upright,water-cooled,4-stroke

12 hours power(kw)

44.1

Rated Speed(r/min)

2300

Fuel consumption(g/kw.h)

≤242

Max.torque(N.m)

≥232.1

Speed of Max.torque(r/min)

≤1500

BorexStroke(mm)

Φ105×120

Diesel Consumption(g/kW.h)

≤2.04

Starting mode

  Electric

Break System

Service Brake

 mechanical,wet,disk

Parking Brake

 locking pedaltype

Transmission

Clutch

 Dry type,single disk,two stage,constant mesh

Gear box

8F+4R,direct gear compound shaft,creeper gear and shuttle gear optional

Steering

 Hydraulic steering

Steering type

  Wheelsteering

Main Drive

 Spiral bevel gear

Differential Mechanism

 Dowel pin type,two planetary gearing,closed

Final Drive

 Single stage,external,planetary gearing

Operating System

Lifter tilling depth control

 Draft & position adjustable lifter

Max.lifting capacity(kn)

≥9.9

Suspension type

 postposition, Three- point,I category

Speed of P.T.O.(r/min)

(540,1000);or (720,1000),or (540,720)

Type of P.T.O.

Six splines, postpositional, semiindependent

Traction Equipment

 Swing draw bar

Optional Devices

 creeping gear,shuttle gear,air brake,rollbar and canopy,sealed luxury cabin and multi-way hydraulic output
