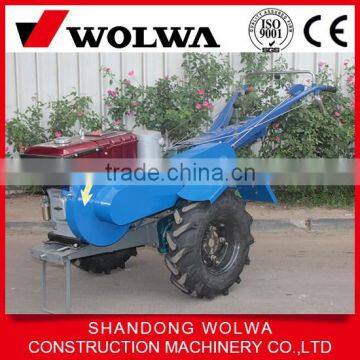

china factory supply 9KW 2wd mini walking agricultural tractor
- 100 Set / Sets per Month
- Qingdao
You May Like
-
hot sale 4*2 2wd multifunction walking type mini tractor GN121H in china
-
hot sale GN111-3 4*2 walking type tractor with low price
-
hot sale 11hp 4*2 walking-behind tractor for agriculture
-
china factory supply drive and pull agricultural mini tractor 11hp
-
china factory supply 8KW 2wd mini walking agricultural tractor
-
hot sale 4*2 2wd multifunction walking type mini tractor GN111-3 in china
Product Details
| Condition | New | Type | Walking Tractor | |
| By wheel | 2WD | Usage | Farm Tractor | |
| Drive Type | Gear Drive | Power(W) | 9KW | |
| Certificate | Other, CE,ISO | Brand Name | Wolwa | |
| Model Number | GN121H | Place of Origin | Shandong, China | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Introduction
Specifications
1)Type:4*2
2)Tractor Model: GN121H
3)Wheel base(mm):: 680-685
Specification
Item | unit | value | |
whole machine |
| / |
|
type | / | GN121H | |
model | / | drive and pull | |
dimension | mm | 2520×980×1250 | |
wheelbase | mm | 680-785 | |
min ground clearance | mm | 210 | |
min use weight | kg | 336 | |
bob-weight | kg | / | |
gear number | / | 6/2 | |
Engine and clutch coupling mode | / | triangle type | |
start way | / | manual | |
engine | brand | / | wolwa |
model | / | single cylinder,horizontal type,water cooling,four travel,votex shedding | |
type | / | GN196 | |
company name | / | wolwa | |
cylinder number | / | 1 | |
cylinder diameter×travel | mm | 96×100 | |
discharge capacity | L | 0.723 | |
compression ratio | / | 17:1 | |
calibration power | kW | 9.00 | |
calibration rotate speed | r/min | 2200 | |
fuel injection pump model ,type | / | monomer rack pump /BF1AK | |
fuel spray nozzle model type | / | long porous type /PF68S | |
air filter type model | / | two section oil bath type | |
cooling system model | / | evaporation water cooling | |
Hand starting anti-reverse device model type |
| handle start equipment 185-S0000 | |
headlight | type | / | SJ18418 |
fuel tank | type | / | 195A-11100 |
work pressure | kPa | 100-120 | |
volume | L | 11 | |
Figure Photos
