8 Ton Wheel Excavator With Grab Bucket

FOB Price

US$ 33,000 - 35,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	WOLWA
Model Number	DLS880-9A sugar cane loader	Condition	New
Moving Type	Wheel Excavator	Operating Weight	8000kg
Bucket capacity	0.3 cbm capacity	Maximum Digging Height	6756mm
Maximum Digging Depth	4721mm	Machine Weight	7600kg
Max Digging Radius	6758mm	Rated Speed	20 to 30 km/h
Certification	iso & ce	After-sales Service Provided	Engineers available to service machinery overseas

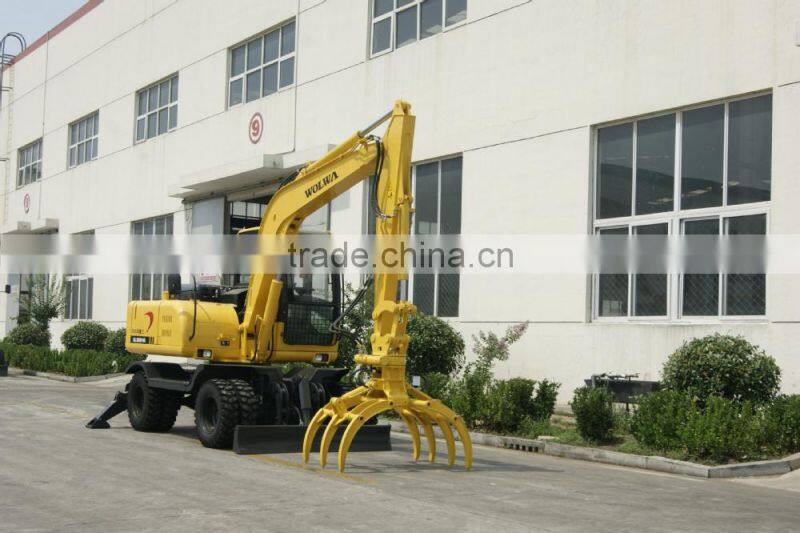

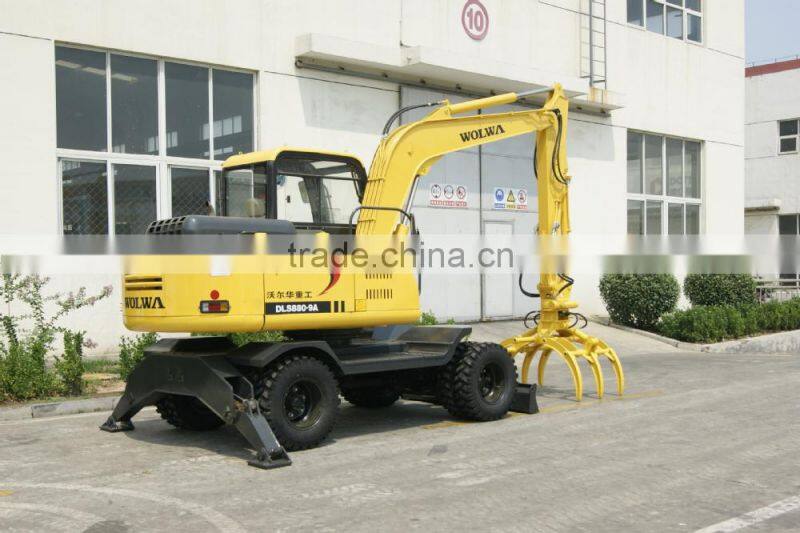

PRODUCTS PHOTO:

PRODUCTS SPECIFICATION:

The Parameter of DLS880-9A Loader
wheel hydraulic loader		unit	DLS880-9A
motor		model	Xinchai
hydraulic pump		model	SHIMADZU Japan
main val		model	Korea imported
Operating weight		kg	7200
power		kw/rpm	48/2300
Dimensions	overall width	mm	2000
	machine height (the top of the device)	mm	2710
	overall length	mm	6321
	machine height (the top of the swing arm)	mm	2730
	ground clear ance(bob-weight)	mm	985
	min.ground clearnce	mm	280
	tyre gauge	mm	1560
	wheel shaft diameter	mm	2310
	mouldboard width	mm	2024
	mouldboard height	mm	310
	outline dimension	mm	150010201600
	opening width	mm	1266
	grab weight	kg	390
Operating scope	boom length	mm	3500
	arm length	mm	2000
	max.loading range	mm	7439
	max.loading weight	kg	460
	max.dischargging height	mm	6639
Specifications	working pressure	Mpa	22
	rated flow	L/min	55*2
	swing speed	rpm	9.2
	travel speed	Km/h	0~30
	buckte digging force	KN	#
	arm digging force	KN	#
	max.hauling force	KN	43.2
	max.torque	N.m/rpm	230/1800
	gradeability	.	20
	fuel tank	L	125
	hydraulice oil tank	L	105
	rated acpacity	ml/r	2*25
