Wheeled Hydraulic Excavator DLS100-9A in Hot Sale

FOB Price

US$ 20,000 - 30,000 / Set

1 Set(Min. Order)

Port Qingdao port

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	WOLWA
Model Number	DLS100-9A	Condition	New
Moving Type	Wheel Excavator	Operating Weight	10600 kg
Bucket capacity	0.35 m³	Maximum Digging Height	7508 mm
Maximum Digging Depth	3926 mm	Machine Weight	9700 kg
Max Digging Radius	6503 mm	Rated Speed	0-20km/h
Certification	ce.iso	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

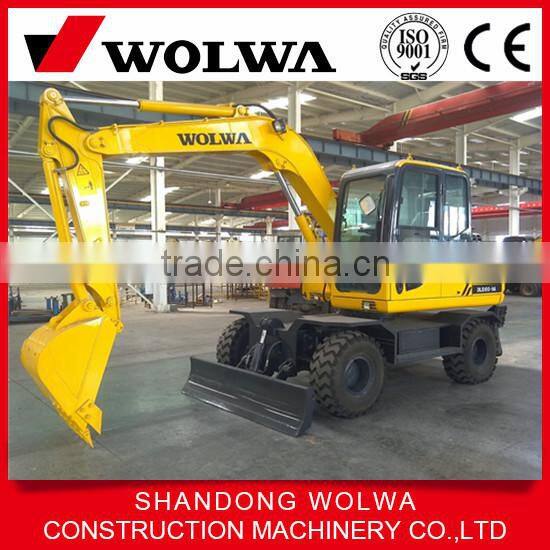

wheeled hydraulic excavator DLS100-9A

Equipped with strong engine system and international advanced hydraulic system, with the pilot-turning function, high speed of arm and bucket, to improve the working efficiency.

1. Silicone oil rubber damper equipped in the cab,suspended seat,air-conditioning system, and good pilot-operating system, for workers to operate naturally and accurately, and reduce the tiredness of workers.

2. The newly designed dozer blade with large scope of raising and descending, is suitable for road,piping and other complex working condition. Besides, the optimal design of the leg is adaptable to rough road, to ensure the stability of the whole machine.

3. Intelligient controller monitor the machine.When there is something wrong with the enginge fuel oil,water temperature, and the engine oil pressure, reminding information would be displayed on the LCD, for the worker to read easily. Structural parts is made from domestic high quality 16Mn steel, with advanced welding technology, greatly increasing the structural strength,to ensure construction safety. The whole machine is vehiche shot blasted, increasing the adhesion of painting, to delay component corrosion and improve service life.

Working weight:9700KG Bucket volume:0.35 m3 Power:75KW/2200rpm

DLS100-9A Wheel Excavator
SPECIFICATION
WORKING PRESSURE	Mpa	28
RATED FLOW	L/min	2*79.2
SWING SPEED	rpm	12
TRAVEL SPEED	Km/h	0-20
BUCKET DIGGING FORCE	KN	57.7
ARM DIGGING FORCE	KN	41.9
MAX HAULING FORCE	KN	58.2
MAX TORQUE	N.m/rpm	400/1500
GRADEABILITY	°	20
FUEL TANK	L	155
HYDRAULIC OIL TANK	L	110
SPECIFIED DISCHARGE	ml/r	2*36
DIMENSION
OVERALL WIDTH	mm	2238
OVERALL HEIGHT(cab top)	mm	2900
OVERALL LENGTH	mm	6932
GROUND CLEARANCE(bob-weight)	mm	1110
MIN GROUND CLEARANCE	mm	362
TYRE GAUGE	mm	2210
WHEEL BASE	mm	2400
MOULDBOARD WIDTH	mm	2234
MOULDBOARD HEIGHT	mm	460
OPERATING SCOPE
BOOM LENGTH	mm	3908
STICK LENGTH	mm	1748
MAX DIGGING REACH	mm	6750
MAX DIGGING DEPTH	mm	3926
MAX DIGGING HEIGHT	mm	7508
MAX DUMPING HEIGHT	mm	5321
MIN SWING RADIUS	mm	2140
REAR-END SEINGRADIUS	mm	2191
MAX FLOORING REACH	mm	3558
MAX HADE DIGGING DEPTH	mm	6503
