Home > Products > GreenHouse&Orchard Tractors > Farming tractor prices 304 with hydraulci steering ,sunshade &roll bar

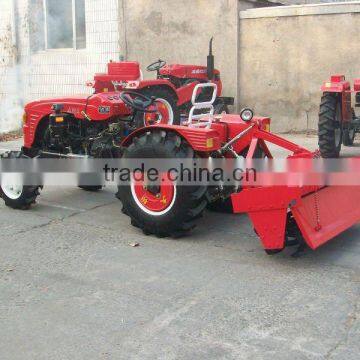

Farming tractor prices 304 with hydraulci steering ,sunshade &roll bar
- Qiangdao
- T/T
You May Like
-
LAWN MOWER TRACTOR WITH 4WD ,THE MAX HEIGHT is 1100mm,mainly using in the green house or under the Grape plant
-
GARDEN/ORCHARD TRACTOR WITH 4WD (Green House Tractor),Max Height 1100mm
-
Orchards 304 with hydraulci steering ,sunshade &roll bar,mainly working for gren house or under the tree
-
2012 HOT sale Gree House Tractor 304,4WD,4 cylinders engine, fitted with Rotary tiller
-
4 wheels Tractor 304 with hydraulci steering ,sunshade &roll bar
-
Tractor Greenhouse-King 350
Product Details
| Condition | New | Type | Wheel Tractor | |
| By wheel | 4WD | Usage | Garden Tractor | |
| Certificate | EPA | Brand Name | haotian | |
| Model Number | TY354 | Place of Origin | Shandong, China |
Product Description
Specifications
Tractor1) creeping shift,double stage clutch
2) dual-way hydraulic output
3) hydraulic steering
Type | TY354 | ||||
Type | 4×4 Wheeled Type | ||||
Over all dimension | Length | 3082/3168 | |||
Width | 1340/1222/1296/1560 | ||||
Height | 1080 | ||||
Tread | Front Wheel | 910/1000 /1200Fixed | |||
Rear Wheel | 1000/1200Adjusted | ||||
Wheel Base | 1686/1772 | ||||
Min.Ground Clearance | 223 | ||||
(kg)Dry Mass | Six Shift : 1270 Eight Shift:1300 | ||||
Engine | Model | 4L22BT | |||
| Double cylinder ,Vertical, Water Cooled and 4-stroke | ||||
(kw)Rated Power | 25.8 | ||||
(r/min)Rated Rev. | 2350 | ||||
Fuel | Diesel Oil | ||||
Tire | Front Wheel | 6.0-16 | |||
Rear Wheel | 9.5-24 | ||||
Clutch | Dry-friction,single stage or Dry-friction,Two Stage | ||||
Steering | Mechanical Type/Mechanical Type or Hydraulic Type | ||||
Transmission Box | (3+1)×2or(4+1)×2or(4+1)×2×2(with creeping Shift) | ||||
Suspension Type | Post Positioned Tri-point suspension Cat a or1 | ||||
PTO shaft | (r/min) Type and Rev | Non-independent Type 540/720 or Semi-independent Type 540/1000,540/720 | |||
Spline Size | 135Rectangle Spline With 6 teeth (6×28.91×34.79×8.69) | ||||
