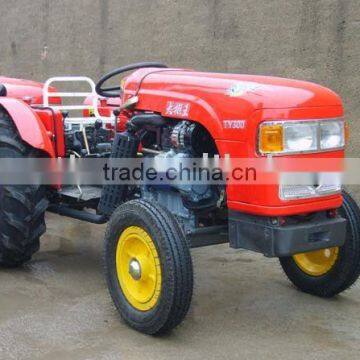

Farm Tractor TY300

   This series product is a middle and small hp tractor directly connected with its engine. It has the characteristics of high transmission efficiency, low tremble, high traction, high adaptability and easy start, it is the upgraded generation shift product. Jaw type differential lock can improve the pass-ability. Hydraulic output interface can make direct connection with the dump trailer. This series tractor can have many different configurations according to customers demands: single stage clutch or two stage clutch, (3+1) ×2 six shifts or (4+1) ×2 eight shifts in which the creeping shift can be selected, one or two standard PTO rev., fixed or adjusted tread, back catalogue 0 or 1 suspensions.

Main Technical Specifications

 Model

TY300

 Type

4×2    2WD

Length

2654/2767

  Width

1296/1596

 Depth

1365/1414

mm

Wheel base

 Front wheel

950 or 1270fixed or 970~1270 adjustable

 Main Dimensions of Tractors

 Rear wheel

1300 fixed  or 1000~1300 adjustable

 Tread

1465/1559

Min. Ground Base

330

kgDry Mass

1010-1060

Engine

Model

2102

Type

(kw)

22.06

Rated Power

Rated rev.(r/min)

2400

Fuel

  Diesel Oil

Tyre

Front tyre

4.50-16/5.00-16

Rear tyre

9.5-24

Clutch

Dry-friction, Single Stage or Dry-friction, Two Stage

Steering

 Mechanical Type

Gearbox

(3+1)×2 or (4+1)×2

Suspension Type

Post Postitioned Tri-point Suspension Catalogue O or I

Type and Rev(r/min)

 Non-independent Type 540 or Non-independent Type 540/1000, 540/720 or             Semi-independent Type 540/1000,540/720

PTO Shaft

Spline

I35 Rectangle Spline with 6 teeth6×28.91×34.79×8.69

Structure and specification are subject to change without notice.
