Home > Products > GreenHouse&Orchard Tractors > New Wheel Tractor with roll bar &sunshade,best price

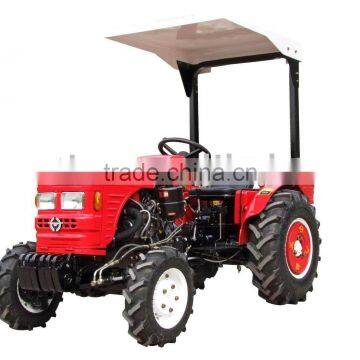

New Wheel Tractor with roll bar &sunshade,best price
- Qingdao
You May Like
-
mini garden tractors HT224
-
Farming tractor prices 304 with hydraulci steering ,sunshade &roll bar
-
LAWN MOWER TRACTOR WITH 4WD ,THE MAX HEIGHT is 1100mm,mainly using in the green house or under the Grape plant
-
GARDEN/ORCHARD TRACTOR WITH 4WD (Green House Tractor),Max Height 1100mm
-
Orchards 304 with hydraulci steering ,sunshade &roll bar,mainly working for gren house or under the tree
-
2012 HOT sale Gree House Tractor 304,4WD,4 cylinders engine, fitted with Rotary tiller
Product Details
| Condition | New | Type | Wheel Tractor | |
| By wheel | 4WD | Usage | Farm Tractor | |
| Certificate | Other, CCC | Brand Name | HAOTIAN | |
| Model Number | TY304 | Place of Origin | Shandong, China |
Product Description
Specifications
1) Wheel Tractor 17-35hp2) 2WD or 4WD
3) Implements up to choice
4) installation up to you
Wheel Tractor:
We manufacture 17-35hp wheel tractor.
Model: TY304
Our factory manufacture wheel tractors ranging from 17hp to 35 hp.
Main Technical Specification | ||||
Model | TY254 | TY304 | ||
Type | 4×4 | |||
Overall Dimensions(mm) | Length | 2589 | ||
Width | 1230 | |||
Height | 1228 | |||
Tread(mm) | Front wheel | 1000 | ||
Rear wheel | 960 | |||
Wheel base | 1670 | |||
Structural Mass(kg) | 1100 | |||
Engine | Model | KM385BT | 3T30 | |
Type | 3-cylinder, Vertical, Water Cooled and 4-Stroke | |||
Rated Power(KW) | 18.4 | 22.1 | ||
Rated Rev.(r/min) | 2350 | 2350 | ||
Clutch | Single Disc, Dry-friction, Single | |||
Transmission | (4+1)×2 | |||
Steering | Mechanical Type or Hydraulic Type | |||
PTO | Rev.(r/min) | 540/720 or 540/1000 | ||
Spline Size (mm) | Post positioned I35 Rectangle Spline with 6 teeth (6×28.91×34.79×8.69) | |||
Theoretical Speed (km/h) | Forward | 1.77~26.98 | ||
Reverse | 2.33~10.77 | |||
Tyre | Front Wheel | 6.00-12 | ||
Rear Wheel | 9.50-16 | |||
