Home > Products > 70-100hp tractor with cabin > BOMR 804 Tractor With YTO Engine
BOMR 804 Tractor With YTO Engine
- Qingdao
- T/T L/C Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Wheel Tractor | |
| By wheel | 4WD | Usage | Farm Tractor | |
| Drive Type | Other, wheel drive | Power(W) | 58.8KW | |
| Certificate | Other, ISO9001:2008 | Brand Name | BOMR | |
| Model Number | BOMR804 | Place of Origin | Henan, China | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
BOMR 804 tractor with YTO engine
BOMR 804 tractor with YTO engine
1. 12+12 shuttle shift
2. Turbo charge
3. Italy fiat chassis
4. Increase 30% efficiency
5. Save 25% of fule
The characteristic of tractor from 70hp to 100hp
1.Our tractors have YTO or Quanchai engine; the engine has the strong power and high quality.
2.Gearbox has 12 forward shifts and 4 reverse shifts.
3.The side shift control made the shifting more comfortable and humanistic.
4.Gearbox and rear axle use engagement sleeve shift. Shifting flexibly and stably, never neutral
5.Hydraulic steering system has independent oil circuit.
6.Independent PTO shaft has so many speed of rotation to choose. For example, 540/760/850/1000. It can meet customer’s different requirements when using tractor in the farm.
7.Pedal operated hydraulic driving brake system and hand shank operated mechanical parking brake system, made the brake system is safety and reliable.
8.Force buried lifter (force, position comprehensive control and floating control) is using reliably and mending conveniently. Hydraulic system use oil separate structure, which has strong lifting capacity. It matches with many large agricultural implements.
9.1 or 2 pair hydraulic outputs can be chose. And air-brake can be chose.
10. Use 4 planetary wheeled differential, transmission stably and reliably.
11. Our tractor adopt underneath double diesel tank. The diesel tank’s volume is large, which reaches 150L. And it is satisfied with using tractors for long-time.
12. Reinforced 3 point-suspension postposition is stronger, using reliable and long life. The bottom tie rod can float.
Technical Parameters
| Technical Parameters | ||||||
| Model | 754 | 804 | 904 | 1004 | 1104 | |
| General Parameter | Drive Type | 4WD | ||||
| Dimensions LxWxH (mm) | 4520×2135×2750 | 4520×2135×2750 | 4520×2170×2850 | 4520×2170×2850 | 4650×2150×3040 | |
| Front Wheel Track (mm) | 1569-2005 | 1630-1960 | ||||
| Rear Wheel Track (mm) | 1500-2100 | 1520-2120 | ||||
| Wheel Base(mm) | 2325mm | |||||
| Ground Clearance (mm) | 370 mm | 430mm | 440mm | |||
| Rated Traction Force (kN) | 16.5 kn | 17.6 kn | 19.8kn | 24kn | 26kn | |
| Min. use weight (Kg) | 3540kg | 3675kg | 3920kg | |||
| Min. Turning Radius (m) | ≤5.3 m | |||||
| Speed range | 1.55-27.99Km/H | 1.57-28.35Km/H | 1.6-33.77Km/H | |||
| Diesel Engine | Model | YT4B4-23 | YT4B4-23 | LR4M5-23 | LR4V5-23 | LR6B3-23 |
| Type | 4 Cylinder , 4-Stoke Cycle Water Cooled,Vertical aligned | 6 Cylinder , 4-Stoke Cycle Water Cooled, Vertical aligned | ||||
| Rated Power (kw/hp) | 55.1kw75HP | 58.8kw/80HP | 66.1kw/90HP | 73.5kw/100HP | 80.8kw/110HP | |
| Rated Speed (rpm) | 2300 | 2300 | 2300 | 2300 | 2300 | |
| Bore x Stroke (mm) | 108×130 | 108×130 | 112×135 | 115x135 | 108x125 | |
Rated fuel consumptio rate | ≤242 (g/Kw.h) | |||||
| Transmission System | Gear Box | Combined 12F+4R 12 forward gears , 4 reverse gears,creeper shift (24F+8R) or shuttle shift (12F+12R) for option | ||||
| Rear axle--Central transmission | Spiral Bevel gear | |||||
| Rear axle--Differential | 4 planet bevel gears | |||||
| Rear axle--Differentila Lock | Locking pin type | |||||
| Rear axle--Final Transmission | Single planet bevel gear,outer mounted at both sides of rear axle | |||||
| Front drive --Transmission shaft | Central Transmission shaft | |||||
| Front drive -Central transmission | Spiral Bevel gear | |||||
| Front drive -Front diffenential | 2 planet bevel gears | |||||
| Front drive-Final Transmission | Single-planet gearsing | |||||
| Clutch | dry style double action | |||||
Traveling Mechanism | Front Tyre | 11.2-24 | 11.2-28 | 13.6-24 | ||
| Rear Tyre | 16.9-30 | 13.6-38 | 16.9-34 | |||
| Steering Gear | Hydraulic Steering | |||||
| Brake | Oil Immersed Multiplate Disc | |||||
Working Device | Oil fuel tank | 145 L | ||||
Lifting Capacity (at 610 mmBehind LiftPoint (N)) | ≥13.3kN | ≥14.2kN | ≥15.9kN | ≥17.6kN | ≥19.5kN | |
| Hydraulic System: | 3-Point Suspension | |||||
P.T.O shaft : Rotating Speed (rpm) | 540/1000 | |||||
| Spline Size | 6-Ø35 Rectangular Spline | |||||

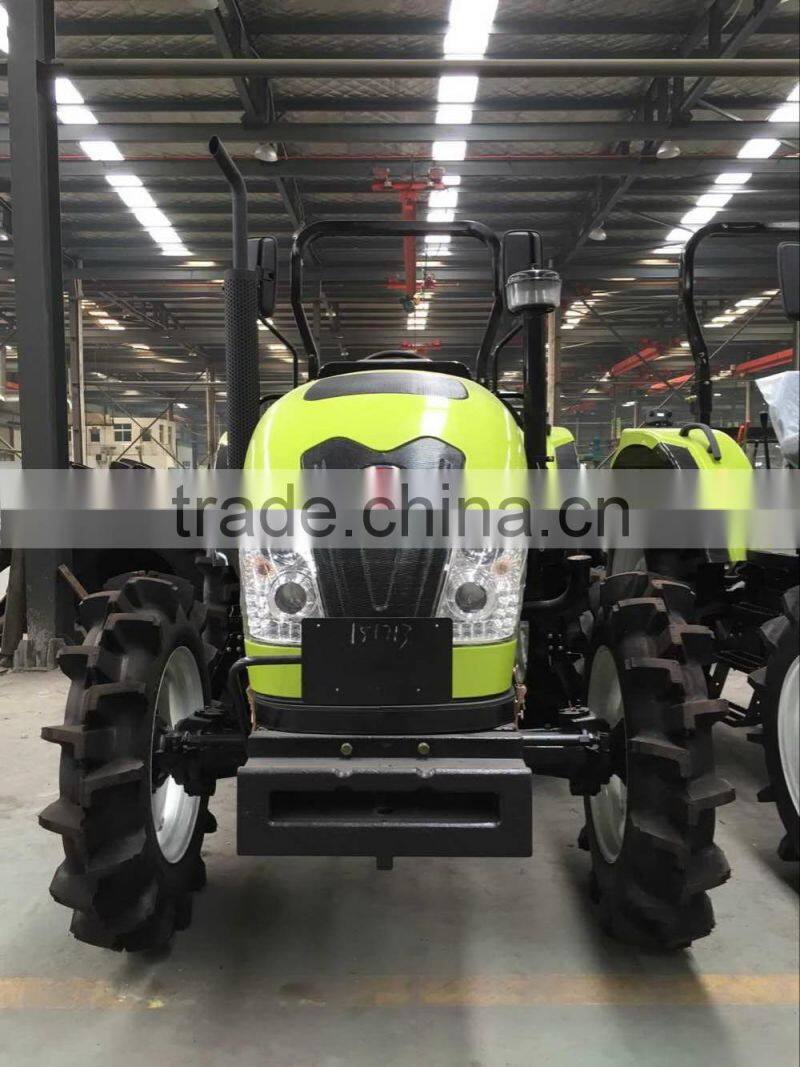

BOMR 804 tractor with YTO engine

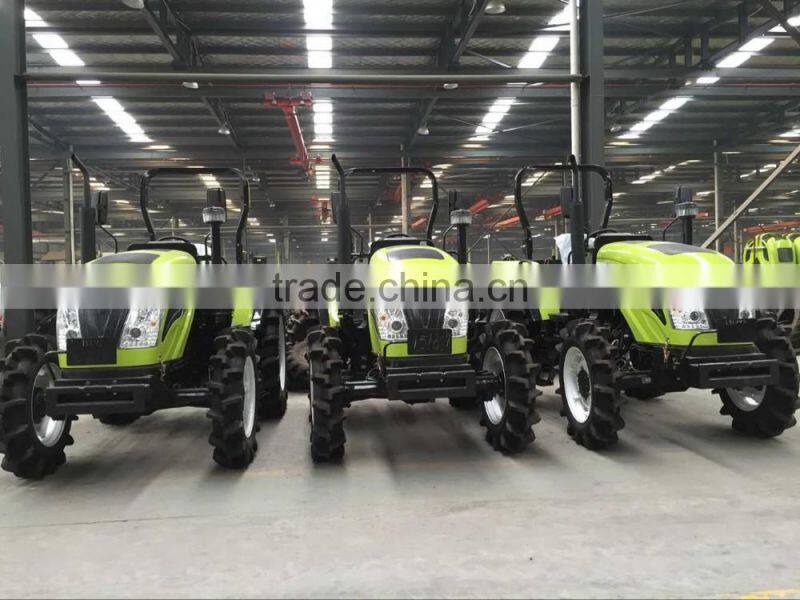

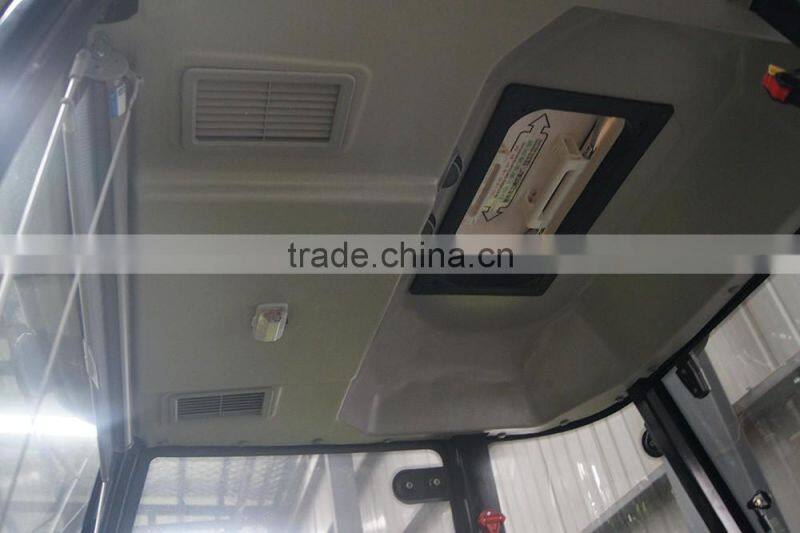

Tractor detail pictures
BOMR 804 tractor with YTO engine
PACKING IN NUDE ,ONE 40HQ LOAD 2 SETS
Our services
Warranty:
12 months is from the date of commissioning, or at the latest, 12 months from delivery.
After-sale service:
1. When loading tractor, we will delivery some normal spare part and tools as free together
with tractor, including tool box.
2. When the tractor have problem in warranty, pls take pictures as evidence. After make sure
(the problem must not be caused by man made destructive factors), we will send out the spare parts as free at once. But freight is paid
by customer.
3. After the warranty, the spare parts cost is paid by customer.
Our tractor in Canton fair:

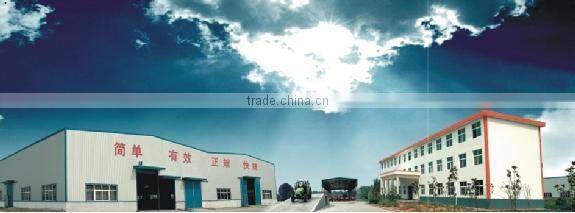

Company certification:
Please do not hesitate to contact us , if you are interested in our products.
we will try our best to meet your needs !!!
BOMR 804 tractor with YTO engine
BOMR 804 tractor with YTO engine BOMR 804 tractor with YTO engine BOMR 804 tractor with YTO engine BOMR 804 tractor with YTO engine BOMR 804 tractor with YTO engine BOMR 804 tractor with YTO engine BOMR 804 tractor with YTO engine BOMR 804 tractor with YTO engine BOMR 804 tractor with YTO engine BOMR 804 tractor with YTO engine BOMR 804 tractor with YTO engine BOMR 804 tractor with YTO engine BOMR 804 tractor with YTO engine BOMR 804 tractor with YTO engine
