316 stainless steel wire mesh screen

Product information:

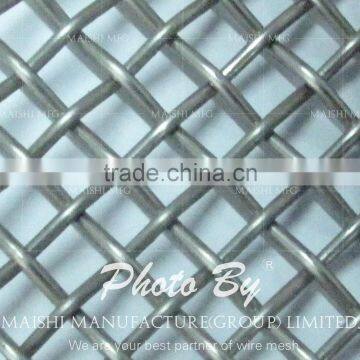

316 stainless steel wire mesh screen

Material: NO MAGNET NO NICKEL, AISI202, AISI302, AISI304, AISI 304 L, AISI 316, AISI 316 L, AISI317, 321 and 430 etc.

Weaving type:

Plain Weave Mesh
Plain Dutch Weave Mesh
Twill Weave Mesh
Plain Dutch Weave Mesh

Twill Dutch Weave Mesh
Reverse Dutch Weave Mesh

1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

316 stainless steel wire cloth normal mesh sizes:
plain weave: 0.5X0.5mesh to 635X635 mesh;
twill weave:20x20mesh to 400x400mesh;
plain dutch weave:10X64mesh to 80X700mesh;
twill dutch weave:20x250mesh to 400X2800mesh;
reversed dutch weave: 48x10mesh to 720x150mesh.

Wire diameter:1.8mm-0.025mm
Roll width:0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request.
Roll length:30m or 50m,any length available at request.

Testing:

HEBEI MAISHI do strictly tested before the goods dispatched from our factory to ensure their quality. Make sure customers get perfect quality.

304 Stainless Steel Wire Cloth is the most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.
304L Stainless Steel Wire Cloth has similar properties as 304ss but lower carbon content to permit better welding.
316 Stainless Steel Wire Cloth has similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.
316L Stainless Steel Wire Cloth has similar properties as 316ss but lower carbon content to permit better welding.

Introduction:

Hebei Maishi Stainless Steel Wire Mesh Manufacture Factory is one of the top manufacturers and exporters of stainless steel wire mesh. Our company was connected with production of metal wire mesh since 1986 and monofilament polyester screen printing mesh(bolting cloth) and nylon printing meh since 1995, in China. The machinery( Width 3900mm from Switzerland Sulzer and WJ1300/1600 A, B, D) and apparatus used in production process fully based on the high computer technology.
26 sets stainless steel high mesh count looms and 50 sets P7150 Sulzer looms.
Dedicated and experienced weavers.
Consistent quality products.
On-time delivery.
We have 15 R&D technical staffs,with more than 10 years experience.
80% repeat customers.
Reasonable claim refund system.

Packing:

Inside the roll with "paper tube" to reduce the pressure while loading; Then wrapped with "plastic film" as well as the "woven bag" on the finished roll, Final loaded in the strong wooden case or as customers' requirement

Payment:

100%T/T in advance if order amount less thanUSD10000.00, 30%paid in advance and 70%paid before shipment if order amount more than USD10000.00.
L/C payment is workable.
Any other payment term can be negotiatory
