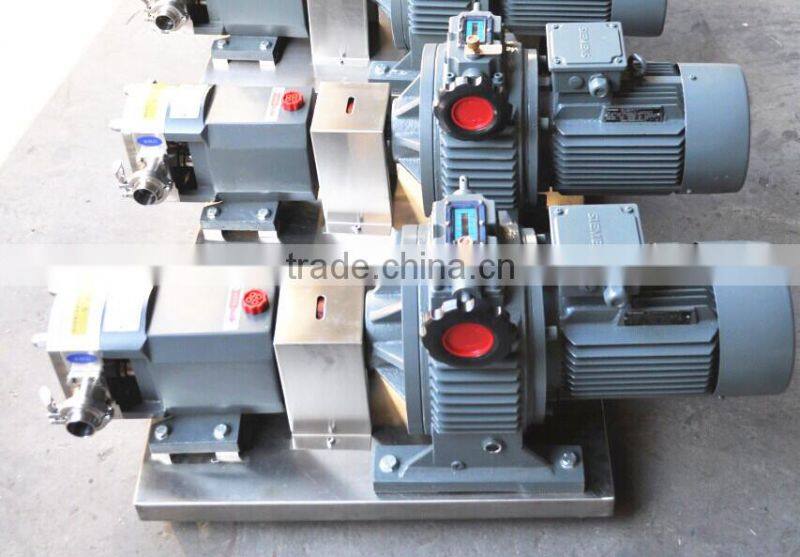

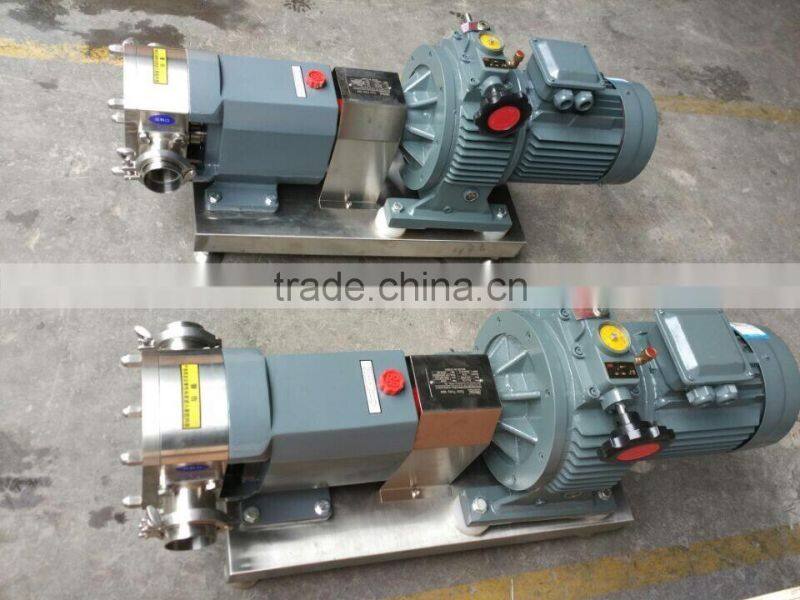

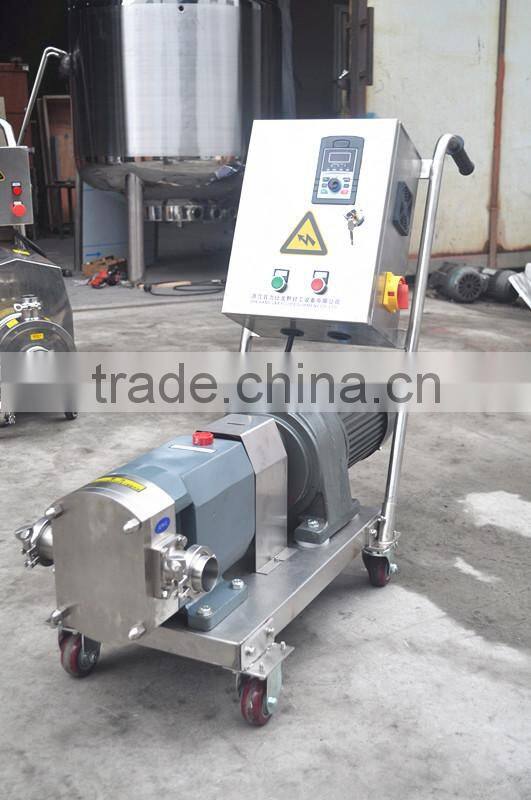

3000L/H Stainless Steel Sugar Syrup Pumps

peanut butter transfer pump
Brand: BLS
Material :304(L) 316(L)
Finish: Mirror or Matt Polish; Ra<0.4um
Connect:Tri Clamped,Flange

Rotary lobe pump is widely used to transfer various special material, stiff material, mixture with different specific gravity, corrosive material and material with large particle, such as yogurt, cheese, fruit jam, shampoo, cosmetics, syrup, paint etc.

1. Driving System

Stepless Speed Regulation Lobe Pump. The speed regulator changes the speed by manual adjustment, which is safe, reliable and infinitive flow adjustment. But the non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shut-off state.

 Fix Speed Output Reducer Lobe Pump: The driving is easy with constant rotary speed of the rotor,which also leads to non-adjustablity of flow.

 Variable Frequency Motor + Frequency Converter Lobe Pump: It realizes both automatic adjusting and infinitive adjustment of flow. It is highly automatic and has large torque in low speed.

2. Connection type: clamp, flange, thread.

3. Contact material: SS304, SS316, 316L.

4. Seal: silicon rubber, fluorine rubber, EPDM, PTFE rubber, nitrile rubber etc.

5. Mechanical seal: single face with silicon carbide/ hard alloy faces standard.

...
