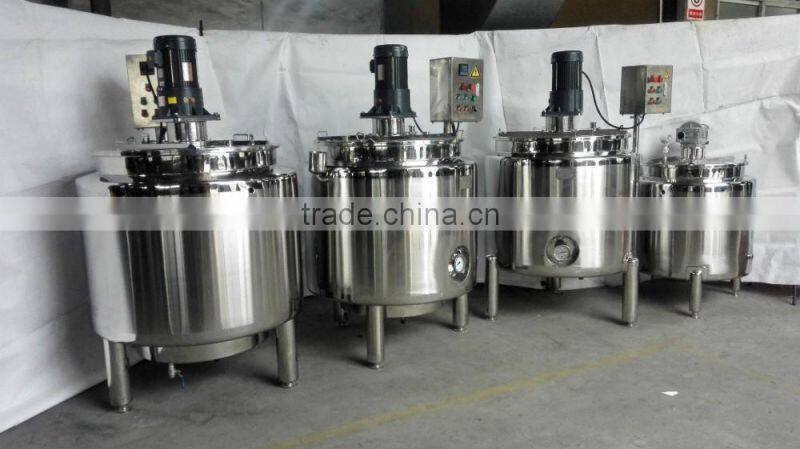

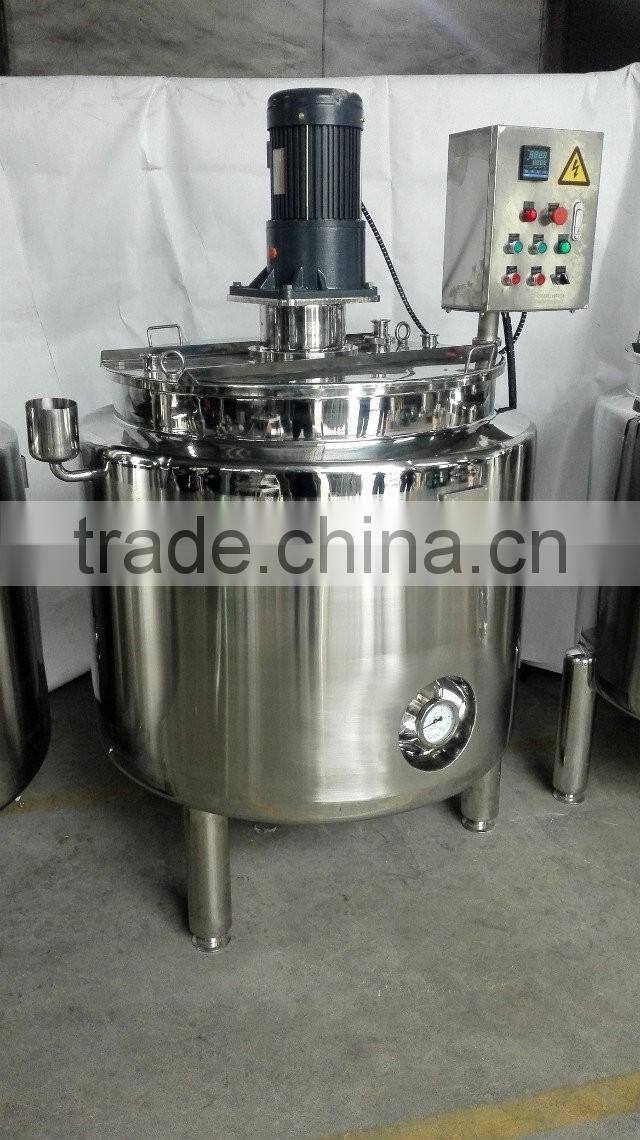

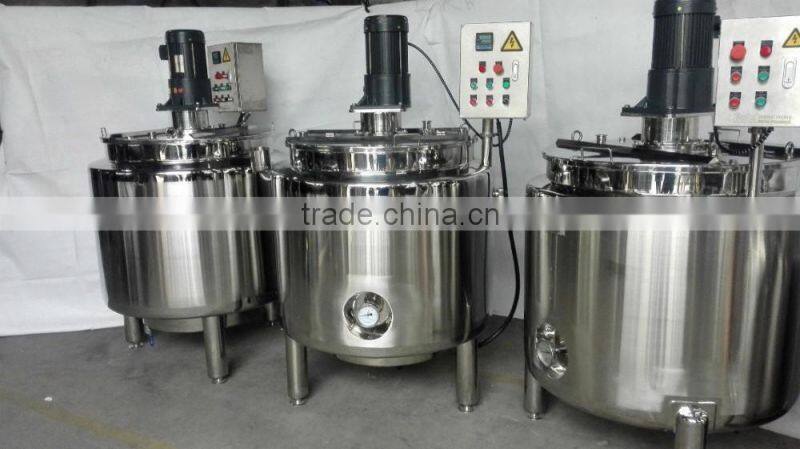

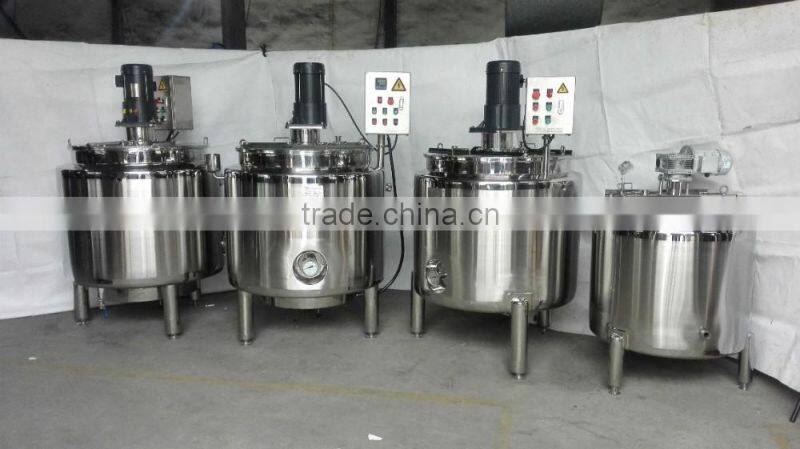

Electric Jacketed High Viscosity Additives Blending Plant

Electric Jacketed High Viscosity Additives Blending Plant

Description: Designed according to ISO9001/GMP standard, widely used for mixing liquid medium in the food-processing, cosmetics and pharmaceutical industries

Heating method: By electricity (oils or water), by steam, by gas

Material:

tank body: SS304/SS316L
jacket: dimple jacket/ miller board, hollow jacket or coil pipe jacket etc.
insulation layer: PU Foam
as to the thickness, we can make it according to your requirement.

Optional Configuration:

1.manhole
2.CIP spraying ball
3.adjusting feet
4.sample valve

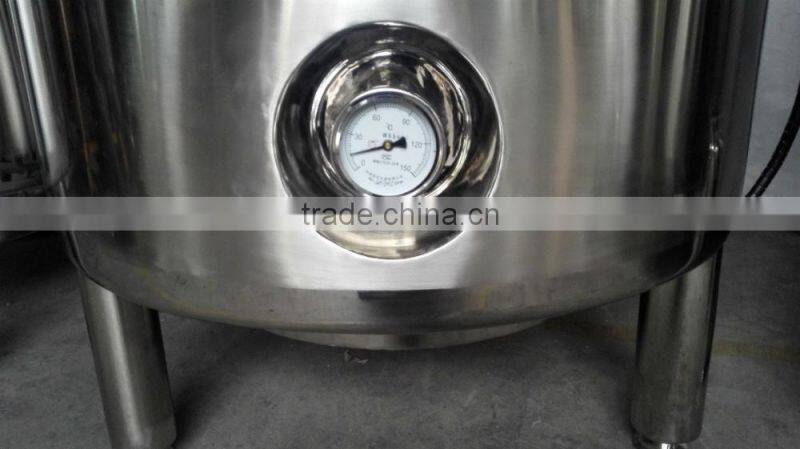

5.temperature gauge
ure gauge
7.level gauge

Capacity: 50L-10000L

Agitator: With agitator or not

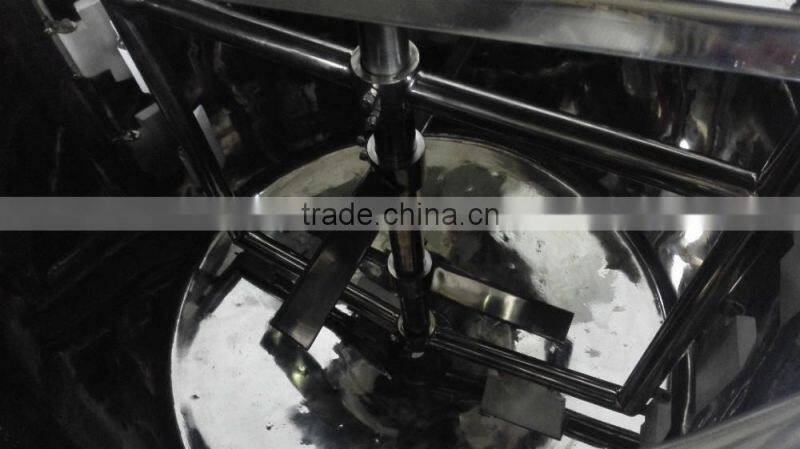

Agitator type:

Agitator which is capable of handling very thick highly viscous gel like paste on low speed(rpm) and at the same time should be capable for mixing oils with low to medium viscosity at medium to high speeds ( rpm)

Frame, paddle, scraper, homogenizer, turbo type etc is avaible.

Agitator Speed: 20-36rpm, 50-300rpm, 760-1450rpm, 2800-3000rpm

Mechanical seal: SIC/SiC/EPDM(Standard)

Agitator power: 0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …7.5KW

Sealing option: Sanitary single mechanical seal/Double mechanical seal with cooling system

Voltage: 110-480V, 50/60Hz

Motor: ABB, LOCAL,50hz/ 60hz

Surface treatment: Inner polished and outside polished

Available connection: Clamp, Thread Butt weld, Flange

Available standard: DIN, SMS, 3A, RJT, ISO/IDF

Operated: Electric

Application scope:  Dairy, food, beverage, pharmacy, cosmetic, etc

Packaging Details: Plywood case Or as per the request of customers

Delivery details: Usually within 35 days after receiving T/T down payment
