Miniature Stepper Motor Driver Pulse and Direction

Specifications

 stepper motor driver

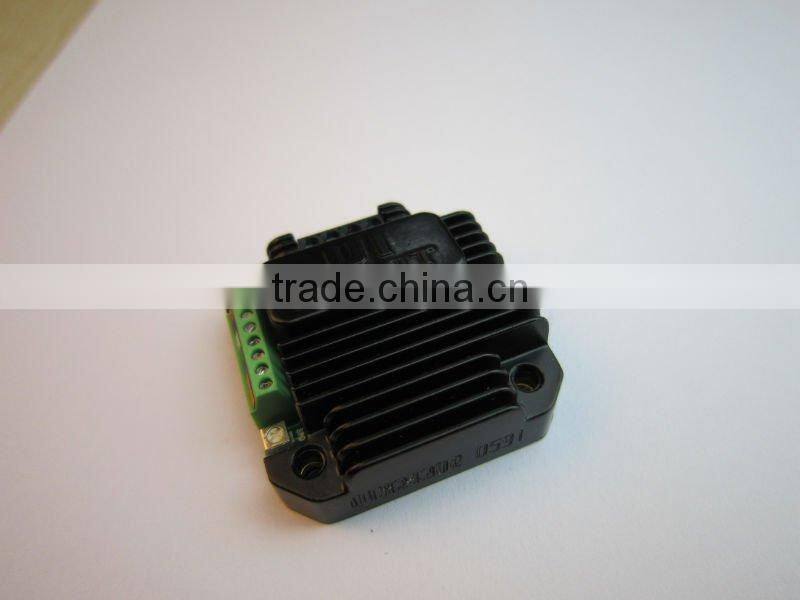

Integrated miniature stepper motor driver with microstep with parallel port(UIM240XX)

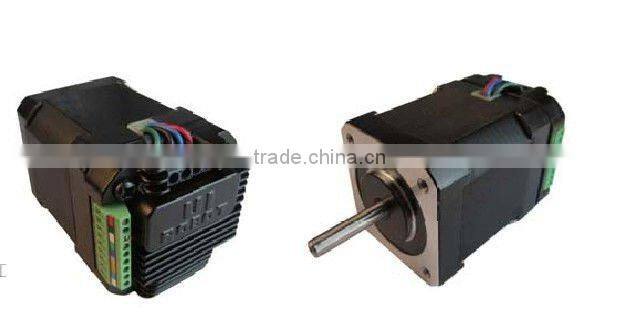

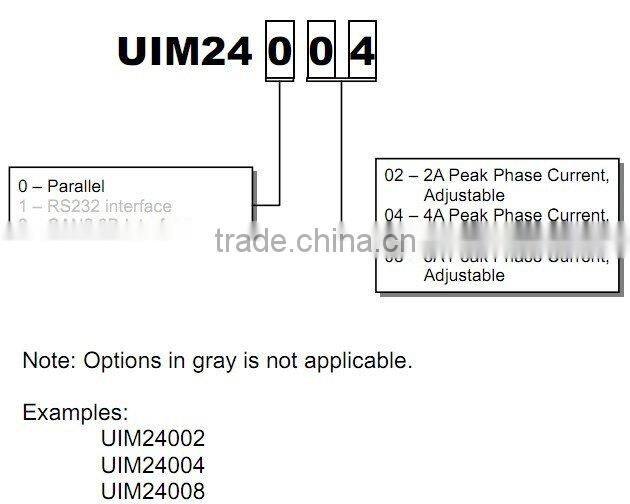

UIM24002/24004/24008 is a series of miniature, high performance PARALLEL PORT PWM Chopper Constant Current Bipolar stepper motor drivers. They can be mounted onto 42/57/60/86mm (They are NEMA17, NEMA23, NEMA24 and NEMA34 stepper motor) stepping motors seamless through corresponding flanges. The thickness of these stepper drives is less than 14mm, UIM 24002 is capable to provide 0.5-2A adjustable current output. UIM 24004 is capable for 1.5-4A adjustable current output. UIM24008 is capable for 2A-8A. Adjustable current output. Their mixed-decay current control reduces the back-EMF effect under high speed running condition and improves the performance. Except the UIM24002 takes 10-35VDC input, UIM240xx series stepper drives can work with 12 to 40VDC input...Enclosures of the UIM240xx stepper drivers are made of die-cast aluminum which provide a rugged and durable protection and improve the heat dissipation.

Electrical Characteristics (Ambient Temperature Ta = 25)

Supply Voltage: 12-40V DC  (10~35VDC for UIM24002)

Output Pahse Current: Max 2A/4A/8A ⁽¹⁾

Current Control:  Constant, PWM control

Microstepping: Full-, Half-, Quarter- and 16^th-step ⁽²⁾

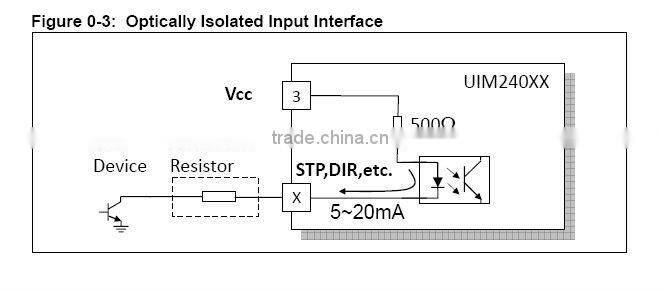

Photocoupler Isolation voltage: 2500 Vrms (min)

Photocoupler Input current:  MAX +/- 45mA

Note:

(1)   adjustable through on-board POT

(2)   adjustable through on-board DIP switch

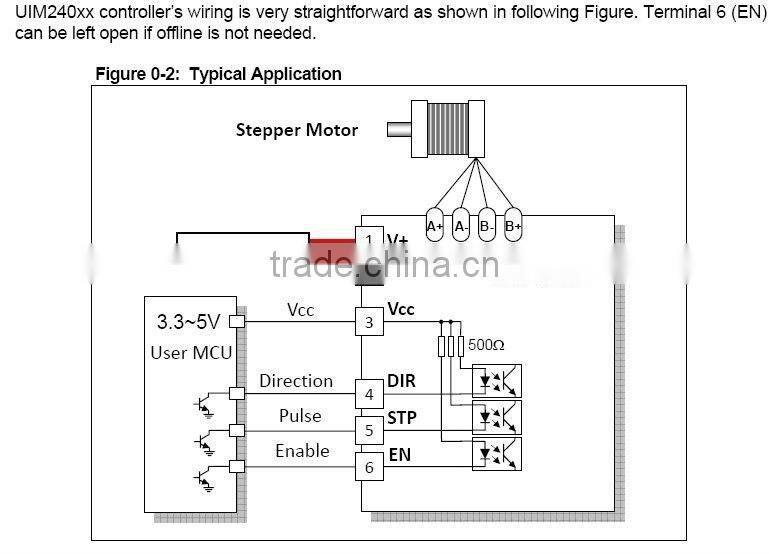

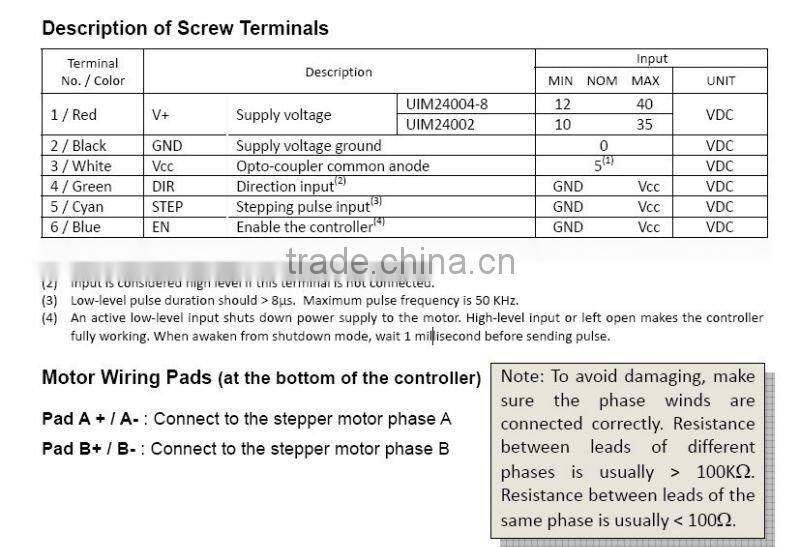

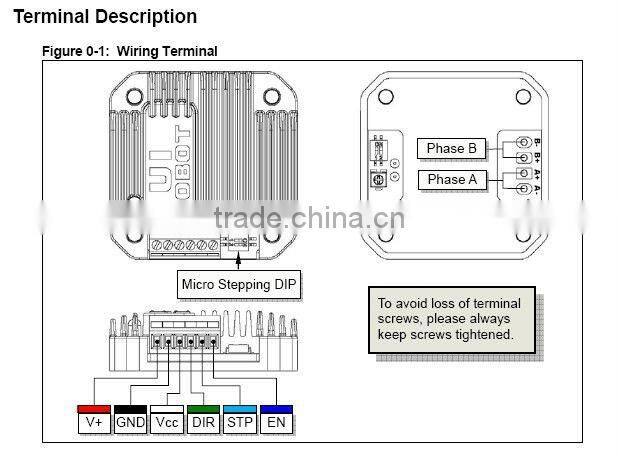

Communication: 3-wire, Step, Direction, and Enable signals

Handling, Storage and Size:

Cooling Type: Free air

Working Environment:      Free of heavy dust, oil mist and corrosive gas

                        Ambient Tempareture: -20 +50

                        Humidity: Lower than 80%RH, no condensation and frost

                        Vibration: 1G Max

Storage Tempareture: -20 - +125

Further more stepper  controller with rs232 and can bus stepper controller and smart self-pulsing stepper controller are available.
