UIM24008 Stepper Motor Driver for CNC Machine Milling Drilling Engraving Machine
- Shanghai
- Money Gram Credit Card
You May Like
-
Miniature Stepper Drivers for Nema17, Nema23 and Nema34
-
2 Amps Adjustable Phase Current UIM24002 Stepper Driver
-
UIM Stepper Controllers and Stepper Drivers
-
Stepper Motor Driver for Bipolar Stepper Motor
-
2 Amps Phase Current UIM 24002 Stepper Motor Driver
-
Two Phase Bipolar Integral Design Stepper Motor Driver
Product Details
| Place of Origin | Shanghai, China | Brand Name | UI Robot | |
| Model Number | UIM24008 | Motor Type | Stepper Motor |
Product Description
Specifications
stepper motor driversize:42.3mm*42.3mm*14.5mm
3-8A adjustable current
12-40V input voltage
can integrate with motor
stepper motor driver

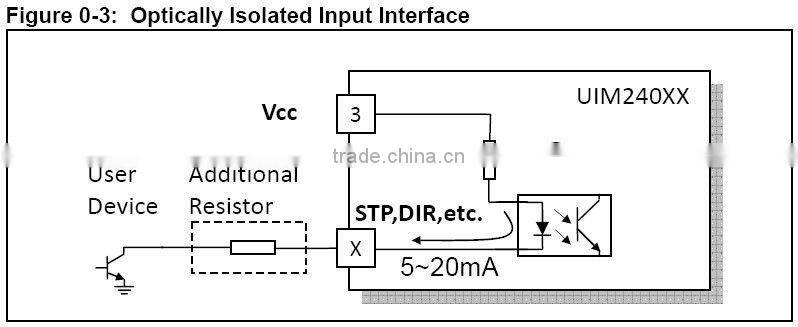

Optically Isolated Input Interface
UIM240xx controllers’ logic control inputs are all optically isolated. All opto-couplers share
one common anode (Vcc) as shown in above schematic diagram. Typically, Vcc is 5V.
However, 3.3V or voltages higher than 5V are also acceptable, so long as the current
through the opto-coupler’s emitter is between 5~20mA.
Automatic Current Reduction
UIM240XX controller is featured of Auto Current Reduction. If this function is enabled,
when the motor stops running, the phase current will be cut to 30% of the set value. As
soon as the motor goes back to working, the current will go back to the set value. This
function is enabled by turn the DIP1 (figure 0-4) to the ON position.
