Blister Card Packaging Machine for Hardwares and Tablewares

Main parameters:

installation and precautions:
1, before the installation to check whether the ground level is balanced.
2, should be in accordance with the location of the ground signs access to the ground.
3, full time personnel training operation, maintenance.
4, the machine should be kept clean and tidy.
5, the machine before the production of the parts must be refueling (to do)
6, machine factory gearbox watchband lubricants, must refuel before production.
7, it is proposed that the machine is best to use the oil free air compressor.
8, molding, heat sealing, such as indentation pressure were shoulds not be too big, otherwise it will affect the service life. Forming, indentation pad turn should leave a mm floating around the room.

Before operation:
1, according to the provisions of the safe use of electricity, lighting source is connected to the motor test power supply, open the power supply, move the host, whether the normal operation.
2, water: according to the body seat plate character display, cooling water inlet, a water faucet is dripping leakage phenomenon, to enter into the water, smooth as a standard.
3, pump: machine air pipeline and open airway access leading, air compressor, pressure up to 0.6 ~ 0.8MPA above can be used.
4, oil: filling into the box body and the transmission box, note: refueling for the box 2/3 oil amount.
5, VC plastic bearing material axis, is inside and outside the cone nut, the mode of transport to go to some, PVC plastic, the rear guide seat open pressed, pay attention to PVC plastic in the machine surface to orbit for quasi, on both sides of the same uniform.
operating procedures:
1, open a green indicating lamp bright, forming and heat Fenger only heating switch respectively open operation position. The controller of forming temperature, respectively preset 100 degrees C, second only to the temperature controller control heat sealing, preset temperature 130 degrees C~140 Shan'xi C. forming and heat sealing temperature controller with a preset temperature, specific discretionary.
2 and down lead material and the upper pressing block, forming temperature of the heating plate in place, open the host, PVC plastic molding, forming a bubble eye and heat sealing mold hole meet, pay attention to heat sealing mould cylinder seat down heat seal molded aluminum foil, aluminum foil will drive rushed to cut. To observe the plastic (of a machine surface has become type PVC) walking is offset. If there is bias to be adjusted cited pressure and block of the mobilization of the traction direction.
3, if the foil bias can be turned around, and a handwheel adjustment section. If the box before and after adjustable deviation move.
4, heat sealing punch load normal after moderate open feeder switch and the gate, the drug (tablet, capsule, grain vests) enter the right amount feed chamber, such as a small cylinder can be manually fill, such as drugs have been brought into the heat sealing mold, seriously affect the synchronization, should the aluminum foil sealing glue mold, to stop processing.
5, due to the increase in weight of the drug, aluminum foil tension and the machine temperature gradually changes in varying degrees, may produce hot forming and sealing synchronization phenomenon, leading or lagging, first check the PVC plastic and aluminum foil whether vaginal septum and available for fine-tuning adjustment. Adjustment mechanism in die backward and forward, because of the adjustment of distance or box before and after the adjustment. (see Figure 2) so before starting should placed in a position, only to move back and forth, also available in front of the box body mobile regulation, move the right, forum to wait walk ten edition to correct, and so did not finish, don't disorderly adjustment to adjust to.
6, plastic, aluminum foil heat sealing quality (uniform bonding Euparagonimus solid) by temperature or pressure, checkered plate flatness to eyewitness, if there is a heat sealing undesirable general appropriate temperature, pressure was slightly lower, regulator is temperature, the final adjustment screw volumes of the pressure.
7, punching bias, cut off the format offset, see figure (3). Stop moving the hand movement of the box, you can transfer mode.
8, in the daily operation of knowledge, for the operation of the work must understand know the structural principle and is driven by a cam top rod seat of the roller, stroke, cover template location fixed die, blister poor state appear, pay attention to forming die or heat sealing to TDC, the fastening column nut, do not pay attention to the susceptible to failure, the top roller pressure bar

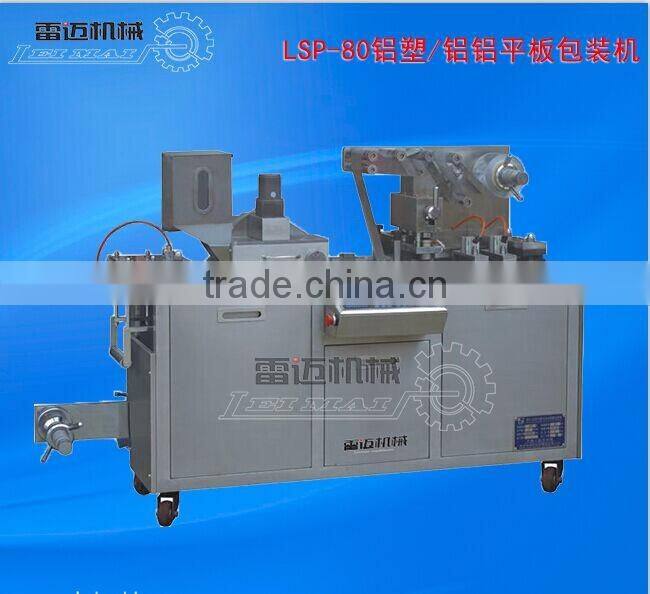

Product picture:

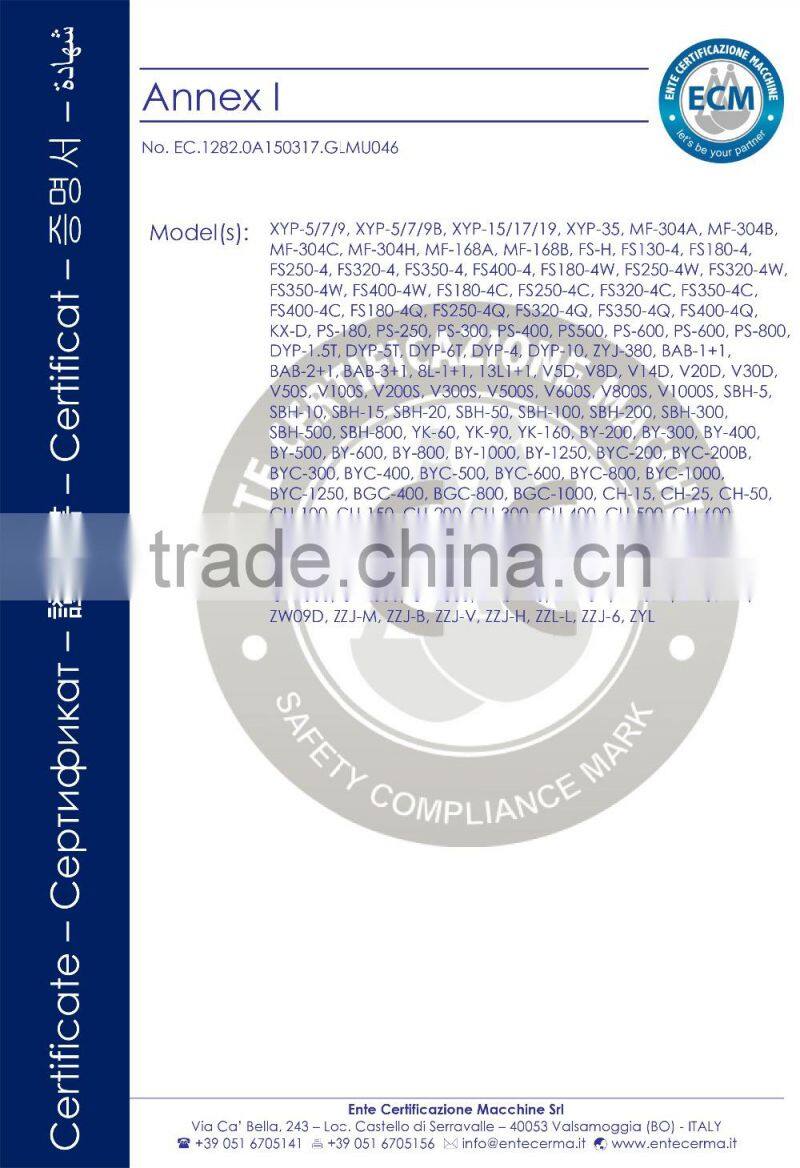

Certification:
