Automatic Food,sugar ,salt, Pepper Granule Packaging Machine

automatic food,sugar ,salt, pepper granule packaging machine

Advantage:

1Adopted programmable PLC controller and person and machine surface control system,and automatic optimization matching with behavior cooperation to reach the best packing speed.

2 Servo and central artery system,and lateral servo controlling,precise location,high accuracy,the error is less than 1mm.Function is the best,accurate and stable.

3 Stable and reliable light and electric checking system,rotary cutting knife,fast packing speed,can adjust the position of cutting knife when the machine is running to make sure the intact brand of the packing bag.

4 Adopted PID temperature controller,double circuit temperature control by the heat-sealer,intelligent temperature controlling,the temperature of the double side sealing place can be adjusted single,making sure the sealing quality,applied to many kinds of packing material.

5 With different filling structure,can make the packing perfect of the granulator,powder,liquid,sauce etc Measure device can make the inlet,filling,bag making,date printing,aeration(air-out),counting,goods output be fulfilled automatically.

6Lapel style bag making to make the bag flat and straight and beautiful.You can choose corner=insert sealing,the bag can be back sealing pillow shape.It is widely used,we can do according to your requirement.    The measure manner:container cup,screw ,pump and electric weighing.

7 All the part touching the material be SUS304 stainless steel,to make sure clean.

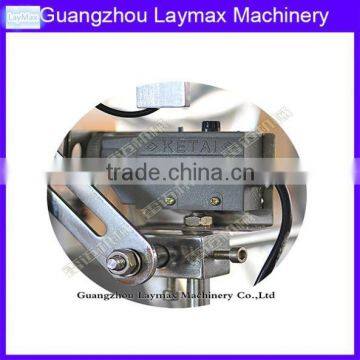

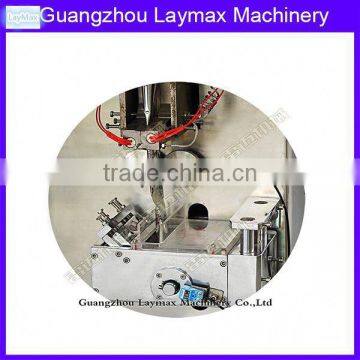

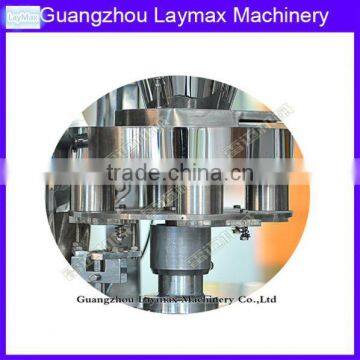

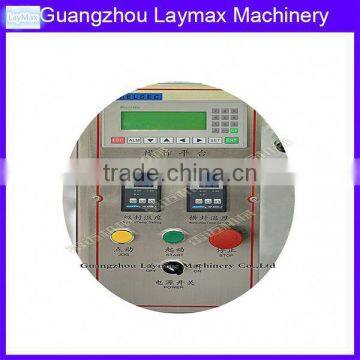

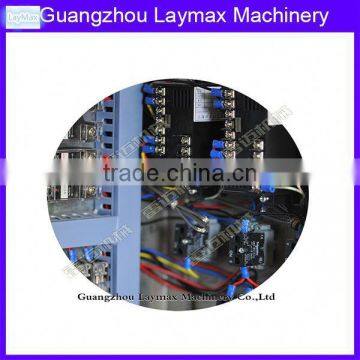

Product picture:

Parameters:

Packing speed(bag/min):30-50 Measuring range:20-100ml Bag making size(millimeter):Length:85-145mm  width:30-100mm Supply Voltage:380V/50Hz Power:1.64kw Packing material:all kinds of complex films The diameter of packing:≤300mm Film Thickness:0.04-0.09mm Machine dimensions:620*670*1670mm Pressure of air:4-6kg Air consumption:15L/min

FAQ:

1.Q:Are you a manufacturer or a trading company?

A:We are the manufacturer with over 10 years experience.

2.Q:What's the payment terms?

A:T/T/WETERN UNION,30% deposit and 70% balance before delivery.

3.Q:How to order?

A:You can send me an inquiry,then we could comfirm the details through emails or telephone.

4.Q:How much is the transpotation freight?

A:The freight depends on the weight and size,also the destination port.

Certification:

Packing:

About us:

  Guangzhou Laymax Machinery Company is a professional machine company,we are in this fields for several years.Our product have good price,service and quality.We have CE,ISO certification and meet the GMP standard.
  We have food and pharmaceutical and chemical machines which have the characteristic of advanced manufacturing technology, stable performance.
  There is a good after sales service team,and can provide 24 hours service.To make a long term cooperation is our aim.Our success can't without your support.

Company Information:

                                 Why choose laymax?

  Guangzhou Laymax Company is a professional company,our product range in pharmaceutical,chemical and food industries.We always put customers in the first place,life long cooperation is our aim.So we provide the best quality product and service to you.

    We also attend the canton fair each year,so our brand is famous.Choose us,we won't let you despair!
