Offset fluted fills

Offset fluted fills are also called cooling tower vertical offset fills, which combine low-fouling property of vertical flow with the enhanced water distribution of cross fluted designs. The fill modules are solvent welded design for maximum strength and pack integrity. The media is used for various application where water quality is average, such as power, steel, food processing, chemical, etc.

There is one piece of offset fluted fill on the ground, it is black.

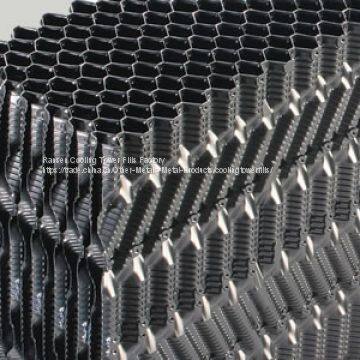

Black offset fluted fill is commonly used with lower potential for fouling and high thermal performance.There is one pack of cooling tower offset fluted fills in blue.

Blue cooling tower offset fluted fills combine low fouling characteristics of vertical flow with enhanced water distribution of cross-fluted design.

Feature

High thermal performance.

Resistant to UV, corrosion, organic/inorganic acids, alkali and chemicals that normally found in the cooling tower waters.

Reduced pressure drop and low fouling potential.

Bonded edge with dedicated bond points for added strength and durability.

Most versatile fill for use in varying water qualities while maintaining high performance.

Specification

Material: PP, PVC, HPVC.

Surface area: 147.8 m2/m3.

Sheet spacing: 20.8 mm.

Media pack size:

Depth: 300-600 mm.

Width: 127-458 mm.

Length: 305-3050 mm.

Application

Offset fluted fills are used in counter-flow cooling towers in power, chemical, food processing, refining applications where water contains a moderate level of total suspended solids.
