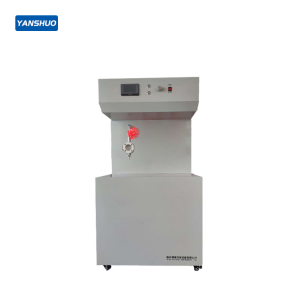

YS-071S Glove Chemical Penetration Tester
- 0 Unit / Units per Month
- T/T
You May Like
Product Description
【Applicable Scope】:
Used to test the penetration resistance of the waterproof layer of gloves under chemical liquid exposure and pressure conditions, observing whether visible liquid penetration occurs within a specified time and pressure sequence.
【Compliance Standards】:
GA 7-2004 Firefighting Gloves – Appendix D
【Instrument Features】:
1. Equipped with an air source capable of providing continuous pressurization (0.5~30±0.1) kPa to the sample, free from spatial constraints in the testing environment;
2. Adjustable air pressure range: (0.5~30) kPa, freely configurable;
3. Color touchscreen for display and operation;
4. Sample clamping pads made of imported special aluminum profiles—lightweight, smooth surface, and rust-proof;
5. Imported brushed aluminum panel with metal buttons for sensitive and durable operation;
6. Sample clamping device with locking protection to prevent synthetic blood splashing;
7. Precise and reliable clamping force;
8. Test tank features a dedicated placement mechanism for convenient operation;
9. Automated process: 0 kPa for 5 min → switches to 13.8 kPa for 1 min → returns to 0 kPa for 54 min, with alarm prompts for observation.
【Technical Parameters】:
1. Sample size: 75 mm × 75 mm;
2. Test area: 28.26 cm2;
3. Air pressure adjustment range: (0.5~30) kPa;
4. Overall dimensions: 500 mm × 500 mm × 500 mm (L×W×H);
5. Instrument weight: 40 kg;
6. Power supply: AC 220 V, 50 Hz.
