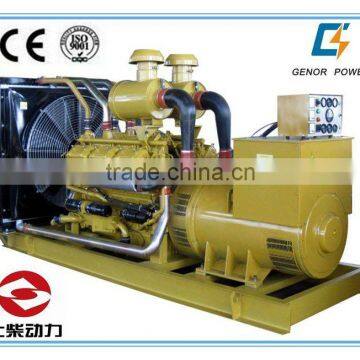

China Shangchai Water Cooled Cheap Diesel Generator Suppliers

China Shangchai water cooled Cheap diesel generator suppliers

2)This sets are designed for using in towns, fishing ports, high buildings, railways, sites, ships etc as an electric power source or as reserved power for using on emergent case.

3)The main technical data of GF series all meet the national standard of GB/T2820-1997, this item work out specially for the industrial using diesel generator sets.







Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNRS-55	40	50	44	55	4135D	≤226	4	8	135*140
GNRS-69	50	63	55	69	4135D-1	≤226	4	8	135*140
GNRS-88	64	80	71	88	4135AD	≤226	4	8.6	135*150
GNRS-104	75	94	83	104	4135AZD-1	≤221	4	8.6	135*150
GNRS-124	90	113	99	124	4135AZD	≤221	4	8.6	135*150
GNRS-138	100	125	110	138	4135AZD-2	≤221	4	8.6	135*150
GNRS-165	120	150	132	165	6135JZD	≤221	6	12.9	135*140
GNRS-235	150	188	165	235	6135AZD-1	≤221	6	12.9	135*150
GNRS-275	200	250	220	275	G128ZLD	≤218	6	12.9	135*150
GNRS-344	250	313	275	344	G128ZLD1	≤218	6	25.8	135*150
GNRS-385	280	350	308	385	12V135JZD	≤218	12	25.8	135*150
GNRS-413	300	375	330	413	G128ZLD11	≤218	6	26.8	135*150
GNRS-440	320	400	352	440	12V135AZD	≤218	12	26.8	135*150
GNRS-481	350	438	385	481	12V135AZLD	≤216	12	26.8	135*150
GNRS-550	400	500	440	550	12V135BZLD	≤216	12	26.9	135*150
GNRS-619	450	563	495	619	12V135BZLD2	≤216	12	26.9	135*150
GNRS-688	500	625	550	688	12V135BZLD1	≤216	12	26.9	135*150
GNRS-756	550	700	605	756	NT271LW53	≤216	12	26.9	138*150

Engine Features of  cheap generator:

1. Shangchai  engine 20kw-1000kw

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel

Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Control system:

1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
   b) Operation display:
       i) Unit voltage, tri-phase load current and frequency display
       ii) Water temperature, oil pressure display
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C
5 Filter system: oil, fuel and air filter
6 Accessories: exhaust elbow, bellow, muffler
