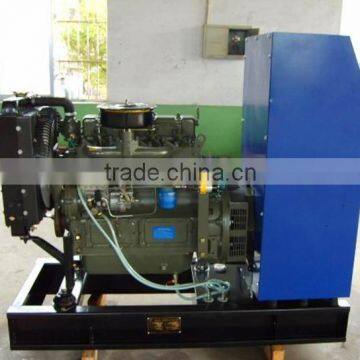

25kw to 150kw China Weichai Engine Cheap Price Diesel Generator

Specifications

     25kw to 150kw China Weichai Engine Cheap Price Diesel Generator

Weichai Generator set the full range of products with high power ,torque,high reliability,low fuel consumption,low emission ,low noise ,adaptation sex strong characteristic

1,  25kw~250kw Ricardo Generator set

weichai  diesel engine is basic on the introduction of foreign(Ricardo Britain) advanced diesel engine technology and developed which is characterized by economical fuel consumption,low noise,powerful,stable operation and reliable performance.

2,Main specification

a,3-Phase, 50Hz@1500RPM, 400/230V (Also Can Be Made According To Customers’ Special Requirements)

b,12V/24V DC start motor and storage battery

c,Brushless, Self-excited, IP21-23, insulation class H alternator

d, 40°C radiator as standard, 50°C is optional

e,Key start panel control system as standard, digital auto-start panel is optional

f,All generator sets are gone through rigorous testing  before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water   temperature, low oil pressure, battery charging fail, emergency stop)

3,Data of Generator Set

4,Engine Specification

5,Alternator Specification

6,Digital Control Panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown

7,Warranty and Maintenance

1) Do the full power load test for five hours before package.

2) One year or 1000 working hours, whichever comes first.

3) After expiration, we provide spare parts maintenance with low price.
