Home > Products > evaporative air cooler > Room Water Air Cooler
Room Water Air Cooler
- qingdao
You May Like
Product Details
| Condition | New | Type | Evaporative Air Cooler | |
| Place of Origin | Shandong, China | Brand Name | yinuo | |
| Model Number | YN-18AS | Operating Voltage | 380/400 VAC | |
| Mounting | Wall / Window Mount | Certification | Other, ccc | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Industrial evaporative air cooler Features:
♦Delivers 100% fresh air
♦Windows and doors can be left open
♦Greatly reduces costs of staying cool
♦Lower purchase and installation costs
♦Guarantees fresh, natural, healthy "lifestyle" cooling
♦Allergy free, asthma-safe environment
♦Replaces all of the air in your home every few minutes
♦Ensures full ventilation - drives out odours and stale air
♦Does not dry out skin and eyes
♦Helps keep insects and dust outside
Main Components:
Fan Blade:Made up of 3 pieces of high-rigid iron plastic fan blade. Strong wind volume.

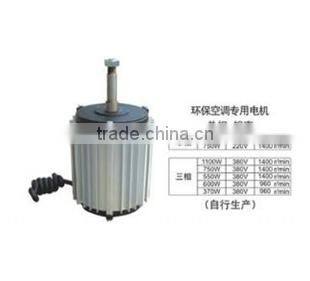

Motor: High efficiency, low noise, strong power volume; Full protection against over currents, over voltage and overload; Unsurpassed reliability.
Pump:Professionally manufactured, good heat-radiating performance; Powerful, durable, high lift, low noise; Exceptional reliability in extreme conditions.
Ball Float Valve:New type, smart designed, permanent magnetic valve; Small buoy, unsurpassed reliability.
PP Chassis
PP Top Tray
wet curtain
air piping
shutters
outer support
Model No | YN-18AS | YN-18DS | YN-18BS |
Airflow(m3/h) | 18000 | 18000 | 18000 |
Air pressure(pa) | 220 | 220 | 220 |
Power(kw) | 1.1/1.5/3kw | 1.1/1.5/3kw | 1.1/1.5/3kw |
Voltage (V) | 380V/220V | 380V/220V | 380V/220V |
Frequency(HZ) | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ |
Fan type | Axial | Axial | Axial |
Blade Material | 3 nylon blades/3 iron-plastic blades | 3 nylon blades/3 iron-plastic blades | 3 nylon blades/3 iron-plastic blades |
Speed | Single speed/multi-speed | Single speed/multi-speed | Single speed/multi-speed |
CELDEK | 7090 cooling pad | 7090 cooling pad | 7090 cooling pad |
Evaporate Efficency | 85% | 85% | 85% |
Water Tank(L) | 65L | 65L | 65L |
Consumption(L/h) | 20-25L/H | 20-25L/H | 20-25L/H |
Applicable Area(m2) | 120-150m2 | 120-150m2 | 120-150m2 |
Shell | Plastic | Plastic | Plastic |
Overall Size(L*W*H)(mm) | 1140*1140*950 | 1140*1140*950 | 1140*1140*950 |
Air Outlet Dim(mm) | 670*670 | 670*670 | 670*670 |
Noise(db) | Less than 60 | Less than 60 | Less than 60 |
Net Weight(kg) | 40kg | 40kg | 40kg |
Controller | Industry box | Industry box | Industry box |
Air Discharge | Top | Down | Side |
Color | White/yellow/grey/ Black&white | White/yellow/grey/ Black&white | White/yellow/grey/ Black&white |
Weifang yinuo Farming Technology Co., Ltd. is located in Qingzhou,Weifang City, Shandong Province, China. We are a greenhouse temperature control equipment designer, manufacture and installation technology-based enterprises.
We have produced wet curtain-exhaust fan humidification cooling system; Large livestock use exhaust fan; Large greenhouse use exhaust fans; Industrial plant use exhaust fan; Circulation exhaust fan; Automatic roof ventilator, etc. Fuel Heaters, Coal heater, Electric heaters, Heating dryer , Greenhouse temperature control device, etc.
Company products are exported to Southeast Asia, Japan, European Union, Africa and South America, etc. High quality, reasonable price, good service ventilation equipments would be provided to our customers.
Packaging: Plastic film, nylon liner and carton.
Shipping Port: Qingdao, Shandong, China.
Delivery time: 7-15 working days.
Payment: 30%deposit paid, 70%before delivery.
Applications

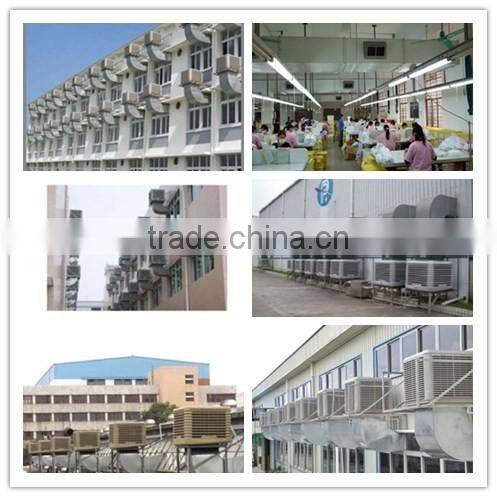

Widely used in clothing, textile and other high temperature industrial plants; Shopping malls, supermarkets and other public places.
1.Why choose us?
Yinuo farming technology is a professional factory of temperature control equipment.
2.What is your main products?
Ventilation systems such as Evaporative cooling pad, poultry exhaust fan, industrial evaporative air cooler and indoors portable air cooler.
3.Are the products tested before shipping?
Yes, all of our products were qualified before delivery.
4.What's your quality guarantee?
We will offer one year quality guarantee time.
5.Minimum Order Quantity?
One 20 feet container.
