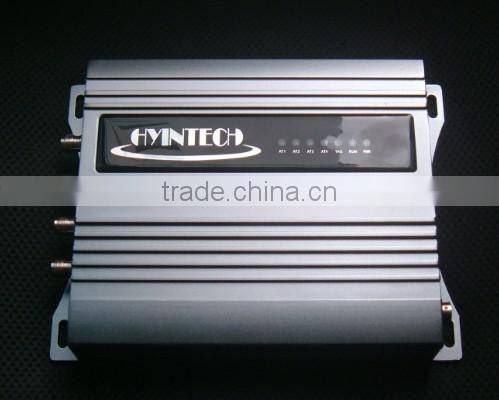

HYB804 is a high performance UHF RFID Separated reader, support 4 external antennas. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system..

FEATURES

l  Self-intellectual property;

l  Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;

l  902~928MHz frequency band(frequency customization optional);

l  FHSS or Fix Frequency transmission;

l  RF output power up to 30dbm(adjustable);

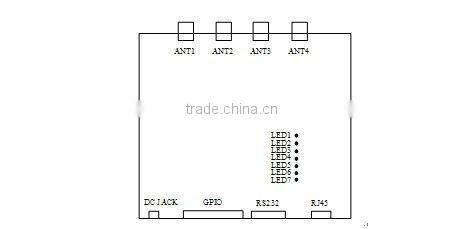

l  4 TNC antenna port;

l  Support auto-running, answer and trigger work mode;

l  Support EPC and TID inventory;

l  Low power dissipation with single +9 DC power supply;

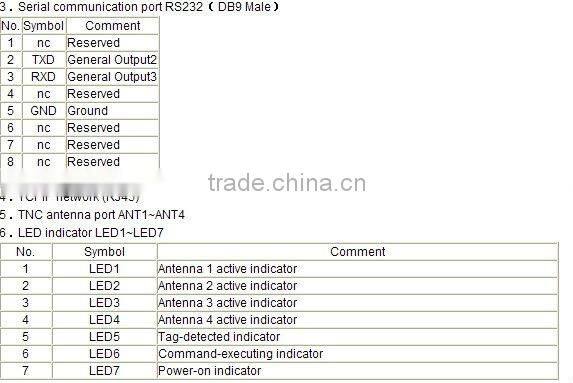

l  Support RS232, RS485, TCPIP with other interface optional;

l  Built-in LED, Buzzer, GPIO and Relay;

l  High reliability design.

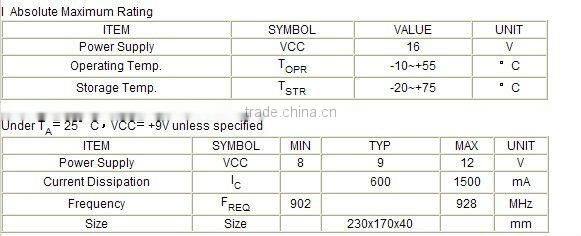

CHARACTERISTICS

Outstanding Features

Technically, Separated UHF Reader is be with much more higher requirement on design than Integrated Reader. As Separated Reader, need much more better anti-collision capability, and better resolution on RF signal processing. It’s with much more complex mechanism than Integrated one.

However, nowadays, most of supplier of Separated UHF reader ,just adding the antenna interface to the Integrated one, and named it as Separated one. It seems no different from outside, but during the real application, will got problem.

Most of the Reader from China supplier is with simple function, and operation on tag. No like the famous brands in the world with the full functions. HI-B804 is the similar one to American INTERMAC, whatever, quality, capability, and functions. But with much more lower price.

Partial List of HYB804’s Advanced Features

Company Information

HYINTECH, Since 2003,8th year Trustpass Golden Supplier in Alibaba, is the leading Industrial Rugged Handheld Computer , RFID Reader & Tag Manufacturer.

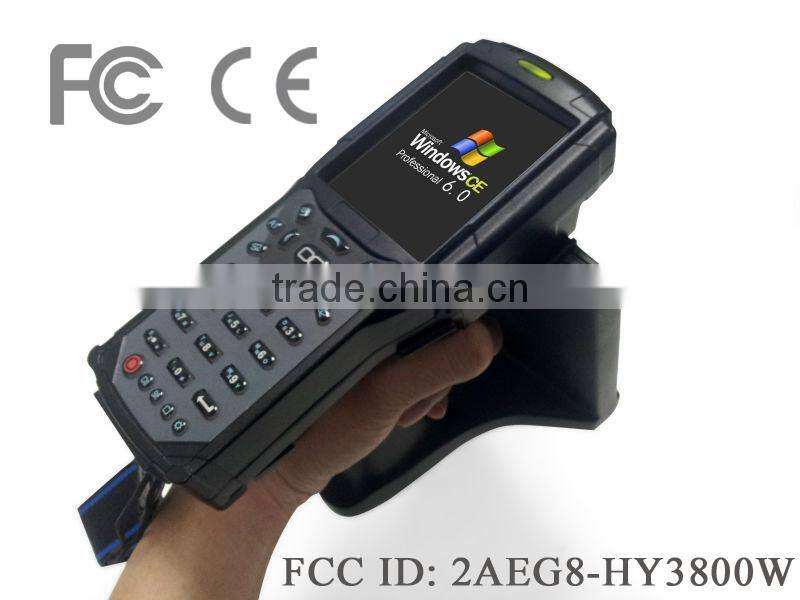

HY3800W handheld, with world leading technology, UHF 15 meters, HF(ISO15693 13.56MHZ)40CM, multi tag reading.



FCC, CE, IEC60950, RoHS.







More information, please visit our website:

/
