Strong UHF RFID tag for tracking metal object
- Beijing shenzh and HK
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | HCT | |
| Model Number | LQ800 |
Product Description

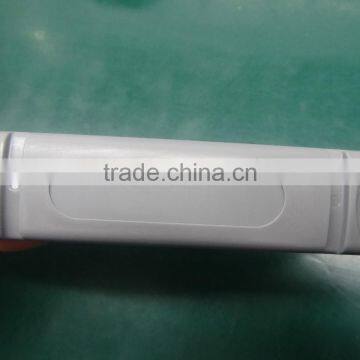

LQ 800 is long range passive UHF RFID tag capable of reading on, off, and near metal surfaces. Designed in a surprisingly small form factor, the LQ800 features a rugged design for long term use in outdoor and industrial environments.
Building Intelligent Supply Chains
With a long read range and high durability, the LQ800 is ideally suited to:
1. Manufacturing tote tracking.
2. Logistics and Postal
3.Retail supply chain
RF Specifications | |
Protocol | EPC Class 1 Gen2 |
Frequency Range (MHz) | 860-940 (GS) |
Read Range (Fixed reader) | 1.Up to 14m (on) EU & US UP to 12m (off ) EU & US |
Read Range (Handheld reader)
| Up to 4.0m (on) EU & US Up to 3.0m (off ) EU & US |
Material Compatibility | Optimized for Metal |
IC Type (chip) | Impinj Monza 4QT |
Memory
| EPC - 96bit User - 512bits TID - 64bits |
Note 1. Quoted performance achieved using standard testing methodology. Read range will vary with Reader hardware and output power. 2. EPC and User memory are reprogrammable, TID is locked at point of manufacture | |
Physical Specifications | |
Material | ABS Rigid Plastic |
Size (mm) | 110 x 25 x 12.85(mm)/4.33 x 0.98 x 0.51(in) |
Weight | 60g |
Environmental Specifications | |
Operating Temperature | –40 ° to +85 °C |
Long term Max Temperature | exposure - (days, weeks, years) +85 °C |
Short term Max Temperature | exposure - (minutes,hours) +105 °C |
Halt Thermal Cycling
| 20 ° to +85 °C Exposure Time 250 Cycles |
IP Rating | IP68 |
Shock and Vibration | MIL STD 810-F |
Impact | 10kg from 1m |
Fixed | Adhesive, Cable Tie, Mechanical (std) |
