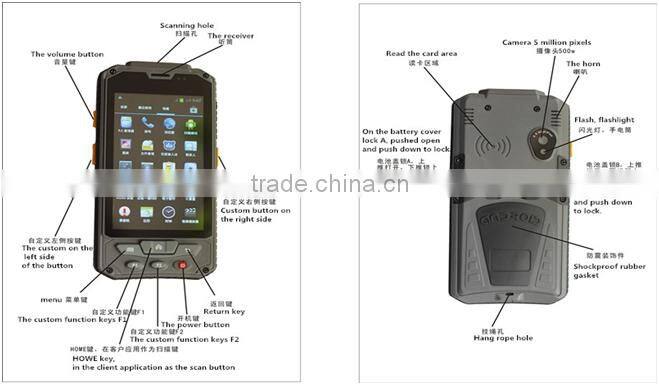

Barcode Scanner for 1D and HF RFID Reader

Model

HCT-80609

The processor

Cortex A9 Dual-core 1.2 GHZ processor

Memory capacity

ROM:4G    RAM:1G

The operating system

Android 4.2

Wireless communications

GPRS(Optional)

GPRS, EDGE , 4-band 900/1800,850/1900

WCDMA(3G, standard)

band 850/2100,Cat.8 HSDPA Cat.6 HSUPA

WIFI(standard)

Conform to the IEEE 802.11b/g

Bluetooth(standard)

Conform to the Bluetooth 4.0

Display

4.3 inch IPS Display, resolution of the 480*800, High definition full perspective, distinct under the sun

Touch screen

Support multi capacitor touch

Indicator light

Network indicator light, recharge indicator

audio

Support the voice broadcast

Micro SD card

Support 32G MICRO SD card

Data security

data security protection, in a comSJetely off electricity (remove the battery and the power converter), data will not be lost even completely no power supply(no battery and no external power supply)

GPS indicators

(standard)

Channel: 12- channel

Receive types: L1, C/A code and carrier phase smoothing

Re-capture: < 1s

The latest ASIC chip; COAST patented Algorithm; EVEREST multipath suppression technique

Error range: < = 10 meters

Navigation map

Support Careland,  Baidu, Google, Amap and other navigation map

The input method

Full-screen handwriting, half screen handwriting, strokes and pinyin, Numbers, letters, symbols

Physical interface

High-speed USB2.0 device interface, 3.5 stick Plug-in recharge interface

Camera

(standard)

The rear 500M megapixel camera with flash

The flashlight

Low power consumption LED lights, emergency use

The fingerprint module(Optional)

Registration time < 3s, compare time < 0.1s, compare time of 0.5s (100 PCS)

False Reject Rate < 0.1%, False Accept Rate < 0.001%, fingerprint capacity: 512

One Dimensional barcode(SE955/N43XX)(Optional)

Read code system

Can recognize all kinds of main one-dimensional bar code: Code 39,Code 93,Code 128,Codebar,EAN-13,EAN-8,UPC-A,UPC-E,ITF 14,UCC/EAN-128,ITF 25,Matrix 25,EAN-128,ISBN

Read distance

0 cm~50 cm

Read rate

first read rate >= 99%, misread rate <= 0.01%, non-read rate <= 0.01%

Two dimensional barcode(Optional)

Moto-SE4500

Hardware decoding, Far decoding speed and misread rate <= 0.01%

Newland-EM4100

Hardware decoding, Far decoding speed and misread rate <= 0.01%

RFID(Optional)

Ultra high frequency

(915MHz)

2~3 m distance for EPC C1 GEN2 / ISO18000-6C protocol of 900 MHZ tag read operation (associated with tags and antenna)

High frequency

(13.56MHz)

0~7 cm range for ISO15693, ISO14443 double protocol 13.56 MHz tags for reading and writing (associated with tags and antenna)

Low frequency

125 K / 134.2 K animal ear tag

PSAM

Support two PSAM card

High Frequency (CPU card read)

Support CPU card read and write, used with PSAM

Active in close communication(Optional Customers need to provide module)

Active 2.45 G

Distance of more than 200m, 200 pcs label can be read all at once

433M

Distance of more than 200m, distance is adjustable

Battery performance

The battery

4100mah lithium polymer battery, standby time: more than 150 hours, working time: more than 8 hours, ac adapter charging (1A)

The battery standby time

After full charge, shut off wireless communication and standby for 360 hours, can run normally

Battery charging time

Charging time < 4.5 hours

Work time after charging

More than 8 hours (one charge)

The work environment

Operating temperature

-20℃~50℃

Storage temperature

-20℃~70℃

Relative humidity

10%~90%RH, no condensation

Protection grade

IP65

Physical parameters

The total weight

Less than 300g (including battery, charger are not included)

The fuselage size

148 (length) * 77.5 (width) * 27 (thick) ± 2 mm

The attachment

Standard

1of lithium battery, 1of charger, 1of USB data line

HCT-80609

Android4.2+3G+WIFI+GPS+bluetooth +camera

HCT-80609-1

Android4.2+3G+WIFI+GPS+ bluetooth +camera +HF(13.56M: 14443+15693)

HCT-80609-2

Android4.2+3G+WIFI+GPS+ bluetooth +camera +1D(Honeywell scanning head)

HCT-80609-3

Android4.2+3G+WIFI+GPS+ bluetooth +camera +2 d scanning(Symbol  SE4500)

HCT-80609-4

Android4.2+3G+WIFI+GPS+ bluetooth +camera + UHF(900M)

HCT-80609-5

Android4.2+3G+WIFI+GPS+ bluetooth +camera +fingerprint

HCT-80609-6

Android4.2+3G+WIFI+GPS+ bluetooth +camera +2.4G

HCT-80609-7

Android4.2+3G+WIFI+GPS+ bluetooth +camera +433M

HCT-80609-8

Android4.2+3G+WIFI+GPS+ bluetooth +camera +PSAM

HCT-80609-9

Android4.2+3G+WIFI+GPS+ bluetooth +camera + 125K/134.2

HCT-80609-12

Android4.2+3G+WIFI+GPS+ bluetooth +camera +1D+HF

HCT-80609-13

Android4.2+3G+WIFI+GPS+ bluetooth +camera +2D+HF
