UHF RFID Reader
- Beijing or HK
- Credit Card
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | HCT | |
| Model Number | HCT-UHFR-10801-B |
Product Description
Specifications
1.long reading range2.lower price with best quantity
3.WIFI, ethernet are optional
4.RS232/485,Weigand prots together.
GENERAL DESCRIPTION

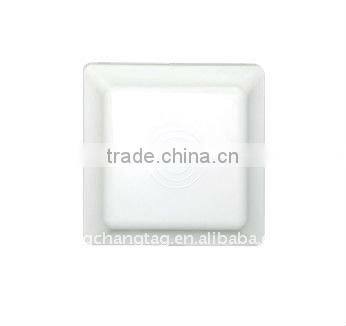

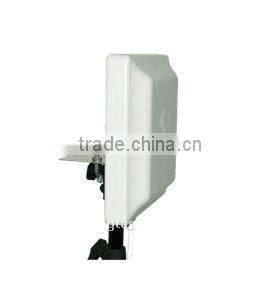

HCT-UHFR-10801-B is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
FEATURES
l Self-intellectual property;
l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
l 902~928MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l 8dbi antenna optional with effect distance up to 5m*;
l Support auto-running, interactive and trigger-activating work mode;
l Low power dissipation with single +9 DC power supply;
l Support RS232, RS485, Wiegand interface;
l Provide DLL and Demonstration Software Source code to facilitate further development.
CHARACTERISTICS
l Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
Operating Temp. | TOPR | -10~+60 | °C |
Storage Temp. | TSTR | -25~+80 | °C |
l Electrical and Mechanical Specification
Under TA=25°C,VCC=+9V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 8 | 9 | 12 | V |
Current Dissipation | IC |
| 350 | 650 | mA |
Frequency | FREQ | 902 |
| 928 | MHz |
Effective Distance | DIS | 300 | 500 |
| cm |
INTERFACE
ITEM | COMMENT |
Red | +9V |
Black | GND |
Yellow | Wiegand DATA0 |
Blue | Wiegand DATA1 |
Purple | RS485 R+ |
Orange | RS485 R- |
Brown | GND |
White | RS232 RXD |
Green | RS232 TXD |
Grey | Trigger input(TTL level) |
* Effective distance depends on antenna, tag and environment.
