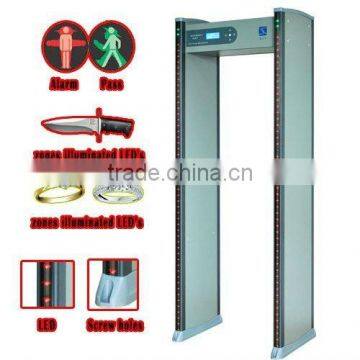

High Sensitivity Intelligent Walkthrogh Security Metal Detector XLD-B(LCD)

high sensitivity intelligent walkthrogh security metal detector

Model No.: XLD-B(LCD)

Features:

* 6/8/10 detector zone   These equal parts lap over each other and they can alarm at the same time.

* Display   It selects high definition television LCD display.

* Alarm zone indication  LED indicator lamps are built in the side of every alarm zone. Thus, it is more obvious and accurate to indicate the position where the metal article locates on the people.

* Sensitivity of every zone adjustabl  With a sensitivity range of 0-255, the detector can exclude jewelry, buckle, and metal zipper and so on .At the highest sensitivity, it can detect an article as small as a clip.

* Strong anti-jamming capability  The system filters and balances signals through digital signal processing technology (DSP) to efficiently avoid distortion and failure.

* Operation methods  The parameters are adjusted by a remote controller or by manual adjustment on the operation panel.
* Alarm tones  There are three options for alarm as high, low and no tones and the length of the tone is adjustable.
* Password protection  It is set an administrator password exclusive to authorized person. It can prevent modifying parameters by others effectively.

Other functions   Intelligent statistics depend on the number of people and the times of alarm
* Internet access (customize)
According to different requirements, a computer can control forty detector doors at the same time.
* Parallel network
Several detectors can be put into use in parallel network with a distance merely 35cm.  Safety of *The power supply  The power supply is at the top of the host. It is every safe.

Easy installation  The metal detector door of XLD series is designed as a combination. Thus, it is easy to install and take down following the concise and understandable instructions.
* Harmless It is harmless to people who have cardiac pacemaker inside and the pregnant woman as well as to magnetic floppy disc and magnetic tape.

Technical   Parameter:

Power supply  220V        Consumption power  <30w
Workplace environment   -20°C~+45°C
 Overall dimension 2200mm(height)X800mm(width)X500mm(depth)
 Tunnel dimension  2050mm(height)X700mm(width)X500mm(depth)
 Weight of the whole machine Approximately  98kg
