GENERAL DESCRIPTION

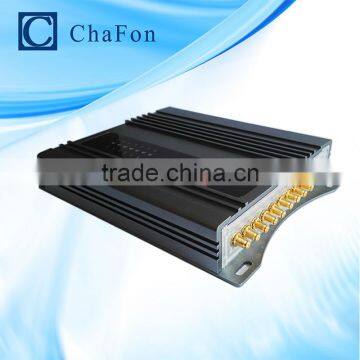

CF-RU6120 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

FEATURES

l  Self-intellectual property;

l  Designed with Impinj R2000 RFID engine;

l  Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;

l  860~868MHz/902~928MHz frequency band(frequency customization optional);

l  FHSS or Fix Frequency transmission;

l  RF output power up to 30dbm(adjustable);

l  12 SMA antenna port with antenna auto-tuning and failure-detection;

l  Support auto-running, answer, trigger and real-time-inventory work mode;

l  Tag buffer size up to 800PCS (Max. 496bits EPC length);

l  Support EPC and TID inventory;

l  Low power dissipation with single +9 DC power supply;

l  Support RS232, RS485, RJ45(TCPIP) with WIFI

l  High reliability design;

l  Support on-the-site firmware upgrading

CHARACTERISTICS

l  Absolute Maximum Rating

l  Electrical and Mechanical Specification

Under T_A=25℃,VCC=+9V unless specified

INTERFACE

1.Power (DC JACK)

2.GPIO (DB15 Female)

3.Serial communication port RS232 (DB9 Male)

4.TCPIP network (RJ45)

5.TNC antenna port ANT1~ANT12

6.LED indicator LED1~LED7
