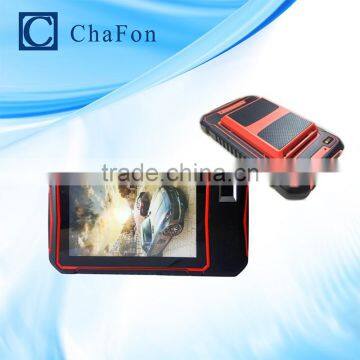

Tablet with RFID Reader ca be with LF HF or UHF frequency

Features

The processor

Cortex-A7 Quad-Core 1.3GHz Processor

Memory capacity

ROM:EMMC 16GB RAM:LPDDR3GB

The operating system

Android 4.22

Wireless communications

GPRS (Optional)

GPRS, EDGE , 4-band 900/1800,850/1900

WCDMA (Optional)

band 850/2100,Cat.8 HSDPA Cat.6 HSUPA

WIFI (Standard)

Conform to the IEEE 802.11b/g

Bluetooth (Standard)

Conform to the Bluetooth 4.0

Display

7 inch IPS screen,Resolution1024*600,HD wide angle, visible in the sun

Touch screen

Support more capacitive touch

Indicator light

Network indicator light, charge indicator

audio

Support voice broadcast

Micro SD card

Support 32G MICRO SD card

Data security

With Anti-power down data security protection, Even if, Completely no power,

data will be not loss

GPS indicators

Standard:12 channels, Error range:<=10m

Optional: High Accuracy GPS,Accuracy:2m

Navigation map

Support Careland, Baiddu, GOOGLE, map etc

The input method

Full-screen handwriting, half screen handwriting, strokes and pinyin,

Numbers, letters, symbols

Physical interface

High-speed USB2.0 interface, 3.5 stick related plug-in interface

camera(Optional)

Front 200W camera,  Rear 500W camera, with Flash Light

The flashlight

Low power consumption LED lights lighting, emergency use

Battery performance

The battery

10000mAh lithium polymer battery, Standby time:>150h,Working>12h,AC Adapter:(2A)

The battery standby time

After the battery is fully charged, Close Wireless communication function for standby, after 360 hours, still can operate in normal

Battery charging time

Charging time < 6 hours

Battery Working time

More than 12 hours (a charge)

Battery performance

The battery

4100 mah lithium polymer battery, standby time: more than 150 hours,

working time: more than 8 hours, ac adapter charging (1 a)

The battery standby time

After a full charge, the wireless communication function on standby, after 360 hours, can run normally

Battery charging time

Charging time < 4.5 hours

Charging time

More than 8 hours (a charge)

The work environment

Operating temperature

-20℃~50℃

Storage temperature

-20℃~70℃

Relative humidity

10%~90%RH

Protection grade

IP65

Physical parameters

The total weight

Less Then 500g(Including Battery, Not Including Charger

The fuselage size

208(L)x130(W)x20(H)+-2mm

The attachment

Standard

lithium battery 1pc, Charging head 1pc,USB Data communication lines

Optional functions Module

Fingerprint Module

Sensor Type: Inductive.Image Size:256*288.Image Resolution:500DPI.

Registration time<3s,Compare time<0.1s,Over time<0.5S(100)

FRR<0.1%,FAR<0.001%.Fingerprint capacity:512

1D barcode(N431X)

Read code system

Can read all kinds of main 1D barcode: code 39,code 93,code 128, Codebar, EAN-13, EAN-8, UPC-A, UPC-E, ITF 14, UCC/EAN-128, Matrix25, EAN-128, ISBN

Read distance

0 cm~50 cm

Reading rate

First read rate of 99% or more, the error rate of 0.01% or less, false reject rate is 0.01% or less

2D barcode

Moto-SE4500

Decoding speed is fast ,Misreading rate<=0.01%

Honeywell-6600

Decoding speed is fast, Misreading rate<=0.01%

RFID

UHF(915MHz)

reading distance:5m or more than 1m for EPC GEN2/18000-6C tag

HF(13.56MHz)

read and write distance:0-7cm for ISO15693,ISO14443 dual-protocol tag

LF

125K/134.2 for animal tags

PSAM

Support two PSAM card

HF(CPU card)

Support CPU card for reading and writing, for use with PSAM

NFC

Support NFC protocol

Active short-distance communication(Optional)

Active 2.45G

range about 200m,can read more than 200pcs tags at one time

433M:

more than 200m,range is adjustable

ZIGBEE

Applicable for Wireless Networking data collect
