Handheld Bluetooth RFID USB Card Reader DL990

Handheld RFID Proximity Reader DL990

Our website is   .This  134.2KHz LF Bluetooth RFID Reader DL990 is designed as a plug and play device for industrial and outdoor environments.

Features

•Wireless data transferring via the Bluetooth connection

 •Can work with WinCE 5.0 or Windows Mobile 5.0/6.0 based SmartPhones or PDAs (Bluetooth featured).

•Palm sized

•Long battery life - continuously reads tags for up to 6000 times per charge

•Free SDK provided

•Excel/Word/Notepad keyboard wedge, data can be automatically updated and viewed in the real-time mode through any kind of text editors on PCs or PDAs

Specifications:

   1. Frequency: 134.2KHz

   2. Reading Distance: 6 CM (Tags dependent)

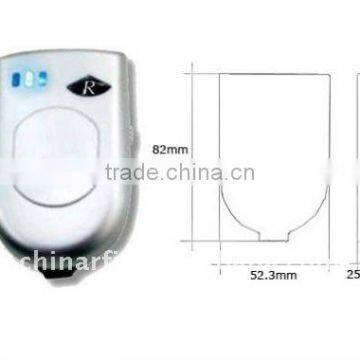

   3. Size: 82mm x 52.3mm x 25.8mm

   4. Weight: < 98 g

   5. Communication Interface: Wireless Bluetooth; USB

   6. Antenna Connection: Built-in

   7. Transponder Compatibility: Hitag-S ( ISO11784/ISO11785 )

   8. Bluetooth Transmission Range:  > 10 M

   9. Reading Time: 0.1 S

   10.Power Consumption:  < 0.8 W

   11.Operating Voltage:  DC 3.7 to 4.2 V

   12.Bluetooth Standard: Class Two

   13.Communication Baud Rate: 9600 bps

   14.Re-chargeable Lithium Battery: 950mAh, DC3.7V

   15.Humidity: 5% to 90% relative

   16.Operating Temperature: -20 degree to 65 degree

   17.Storage Temperature: -25 degree to 85 degree

We can design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirements. For more info about RFID products please kindly visit our website http:// or mail to us, our sales will contact you as soon as possible.
