2015 New Type Bucket Conveyor Elevator Machine
- Tianjin Qingdao
You May Like
Product Details
| Condition | New | Type | Other, Bucket Conveyor, Belt type | |
| Material | Other, Carbon steel, stainless steel | Material Feature | Heat Resistant | |
| Structure | Belt Conveyor | Load Capacity | 5.3-142m3/h | |
| Place of Origin | Henan, China | Brand Name | Tongxin | |
| Model Number | TD | After-sales Service Provided | Engineers available to service machinery overseas | |
| Certification | ISO9001:2008 |
Product Description
TD Belt Type Bucket Elevator
≡Brief Introduction
1. A bucket elevator is used to elevate bulk materials vertically.

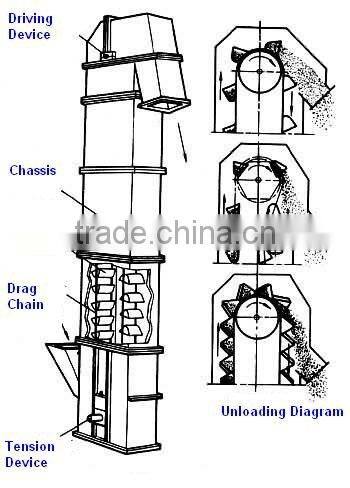

2. The elevator consists of
—Buckets to contain the material
—A belt to carry the buckets and transmit the pull
—A means to drive the belt
—Accessories for loading the buckets or picking up the material, for receiving the discharged material, for maintaining the belt tension and for enclosing and protecting the elevator
3. A bucket elevator can elevate a variety of bulk materials from light to heavy and from fine to large lumps, such as coal, cement, gravel, sand, clay, mineral ore, grain, fertilizer etc.
4. The maximum hoisting height is 20m. The temperature of conveying material is less than 60°C.
≡Features
—Large conveying capacity
—High hoisting height
—Smooth and reliable operation
—Long operating life

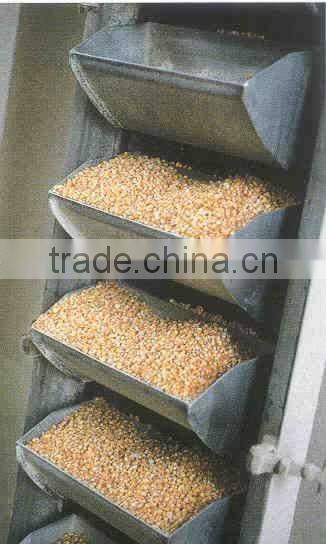

≡Pictures

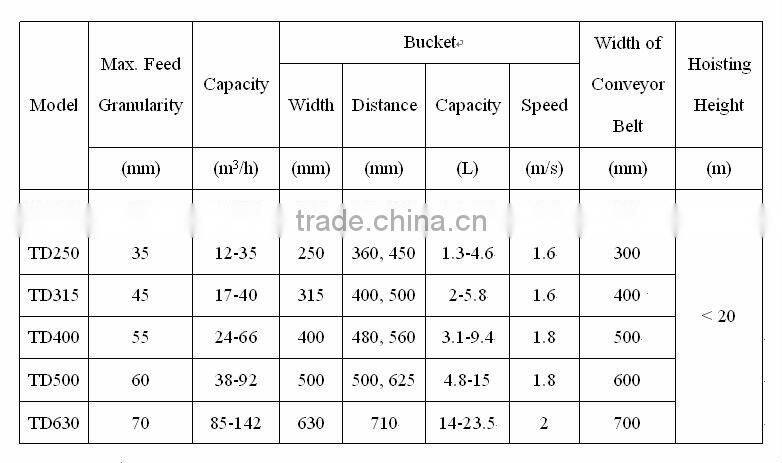

≡Technical Parameters
