2015 High Quality TONGXIN construction hoist
- 10 Set / Sets per Month
- tianjin
You May Like
-
2015 High Quality Tongxin Brand Vertical Vibration Hoist
-
Z- type series bucket elevator
-
2015 High Quality Z- type series bucket elevator with best price
-
Z type stainless steel bucket conveyor
-
High Quality Tongxin Brand High Quality Z type stainless steel bucket conveyor
-
High Efficiency Belt Type Bucket Elevator
Product Details
| Place of Origin | Henan, China | Brand Name | toongxin | |
| Model Number | LS | Usage | Construction Hoist | |
| Power Source | Electric | Sling Type | Chain | |
| Maximum Lifting Weight | 200L | Maximum Lifting Height | 630mm | |
| Lift Speed | 7.85rtm | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

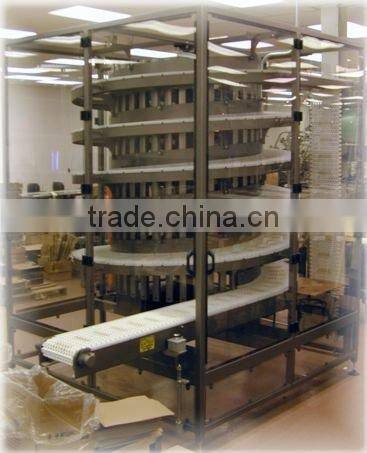

LS Spiral Elevator
1.LS screw hoist for transport medium and large block, the fragile and abrasive packing density of less than 2t/m3 materials, the material temperature does not exceed 2500C, such as lump coal, ore, gravel, coke, etc.

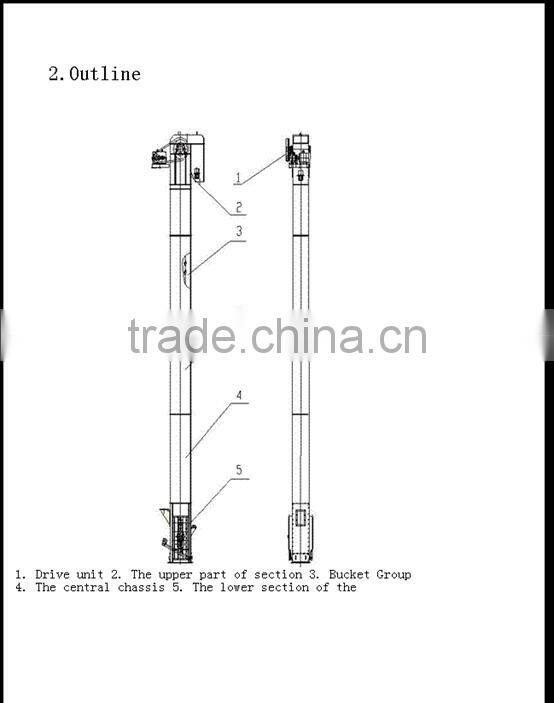

2.The main structure features:
This machine mainly made by the drive device, the upper section of the central chassis, chain bucket group, the lower section of the form.
3.Technical performance and the main parameters
Hoist Model | TD250 | TD315 | TD400 | TD500 | TD630 | TD800 | TD1000 | ||
Hopper type | J | T | |||||||
Throughput | m3/h | 15-25 | 32-46 | 50-75 | 84-120 | 135-190 | 216-310 | 340-480 | |
Hopper | Bucket width | mm | 250 | 315 | 400 | 500 | 630 | 800 | 1000 |
Bucket capacity | L | 3 | 6 | 12 | 25 | 50 | 100 | 200 | |
The Big Dipper away from the | mm | 200 | 200 | 250 | 320 | 400 | 500 | 630 | |
Chain | Pitch | mm | 100 | 100 | 125 | 160 | 200 | 250 | 315 |
Article Number |
| 1 | 2 | ||||||
Single breaking load (minimum) | KN | 112/160 | 160/224 | 224/315 | 315/450 | 450/630 | 630/900 | ||
Sprocket pitch diameter | mm | 386.37 | 386.37 | 482.96 | 618.19 | 772.74 | 965.92 | 1217.06 | |
Spindle Speed | rtm | 24.71 | 24.71 | 19.78 | 15.45 | 13.26 | 9.89 | 7.85 | |
Note: The table throughput by filling factor = 0.6 ~ 0.85 calculated.
