Factory supply carbonated water machine manufacturer

FOB Price

USD $1,000 - $15,000 / Unit

1 Unit(Min.Order)

Supply Ability 10 Unit / Units per Month
Port FOB Shanghai for carbonated water machine
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Beverage, Other, Beverage, Carbonated Drink
Packaging Type	Bottles	Packaging Material	Plastic
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220V	Power	2.2KW
Place of Origin	Jiangsu, China	Brand Name	JZ
Model Number	DCGF	Dimension(LWH)	250017002650mm
Weight	1.5T	Certification	CE ISO
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

P/roduct information

Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description

Main features
1.This machine has a compact structure, completed control system, easy to operate and highly automated.
2.By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.
3.The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.
4.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
5.The machine adopts high effective cap sorting system and completely self control and protective device.
6.The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.
7.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
8.The electric components and pneumatic components are all introduced from world famous brand products.

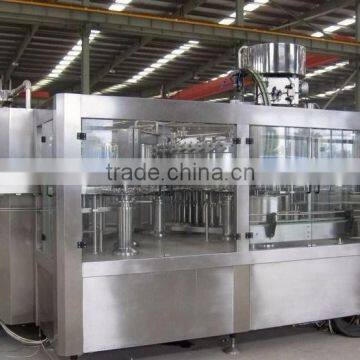

Product display

Product Parameters

Model	DCGF 18186	DCGF 24248	DCGF 323212	DCGF 404015	DCGF 505018	DCGF 606020
Head of washing, filling, sealing	18-18-6	24-24-8	32-32-8	40-40-10	50-50-18	60-60-20
Production capacity (bottle/hour)	3000-4000	5000-6000	7000-8000	9000-10000	11000-12000	15000
Suitable bottle diameter(mm)	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml
Filling precision	≤±5mm	≤±5mm	≤±5mm	≤±5mm	≤±5mm	≤±5mm
Motor power	3.84kw	4.1kw	5.6kw	7.5kw	9kw	11kw
Filling pressure	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4
Overall dimension (mm)	2400×1900 ×2300	2800×2100 ×2300	4200×2300 ×2300	5000×2800 ×2400	5900×3100 ×2400	6500×3500 ×2400
Weight(Kg)	3000	4000	5000	7500	9000	11000

C/ompany information	Zhangjiagang Jiazhou Machinery Co., Ltd.

O/ur advantage	Zhangjiagang Jiazhou Machinery Co., Ltd.

O/ur certificate	Zhangjiagang Jiazhou Machinery Co., Ltd.

N/etwork Marketing	Zhangjiagang Jiazhou Machinery Co., Ltd.

P/ackaging & shipping	Zhangjiagang Jiazhou Machinery Co., Ltd.

C/ontact us	Zhangjiagang Jiazhou Machinery Co., Ltd.
