Automatic Soft drink or carbonated drink filling machine price

FOB Price

USD $1,000 - $15,000 / Unit

1 Unit(Min.Order)

Supply Ability 20 Unit / Units per Month
Port FOB Shanghai fro carbonated drink filling machine price
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, Water
Packaging Type	Bottles	Packaging Material	Plastic
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220V	Power	2.2KW
Place of Origin	Jiangsu, China	Brand Name	JZ
Model Number	DCGF	Dimension(LWH)	280025002900mm
Weight	2T	Certification	CE ISO
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

P/roduct information

Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description

We supply full automatic carbonated soft drink filling machine.
We supply complete carbonated soft drink production line (for 15years). It is plastic bottle packaging line. We have
1000-2000bottles/hour, 3000-4000bottles/hour, 5000bottles/h, 10000bottles/hour and so on, which capacity would
you prefer?
Please mail us below and I will send quotation with detailed pictures & technical data to your email. thank you!

Complete carbonated drinks production line include water treatment system, sugar melting tank, flavour blending tank,
Co2 drink mixer, water chiller, bottle filling and packing system and so on.

Main equipments as below:
1. Water treatment system (quartz sand filter, active carbon filter, softner, RO system and so on)
2. Ozone generator sterilizer
3. Aseptic water storage tank
4. Sugar melting tank & syrup filter
5. Flavour blending tank & syrup cooler
6. Co2 drink mixer & Co2 filter
7. Water chiller
8. Auto bottle washing, filling and capping line
9. Labeling machine
10. Date of manufacture printer
11. Final products film packaging machine and so on.

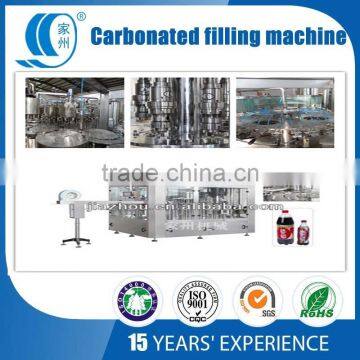

Product display

Product Parameters

Model	DCGF 18186	DCGF 24248	DCGF 323212	DCGF 404015	DCGF 505018	DCGF 606020
Head of washing, filling, sealing	18-18-6	24-24-8	32-32-8	40-40-10	50-50-18	60-60-20
Production capacity (bottle/hour)	3000-4000	5000-6000	7000-8000	9000-10000	11000-12000	15000
Suitable bottle diameter(mm)	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml
Filling precision	≤±5mm	≤±5mm	≤±5mm	≤±5mm	≤±5mm	≤±5mm
Motor power	3.84kw	4.1kw	5.6kw	7.5kw	9kw	11kw
Filling pressure	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4
Overall dimension (mm)	2400×1900 ×2300	2800×2100 ×2300	4200×2300 ×2300	5000×2800 ×2400	5900×3100 ×2400	6500×3500 ×2400
Weight(Kg)	3000	4000	5000	7500	9000	11000
