Home > Products > Filling Machine-5 gallon > Automtic 5 Gallon Water Filling Machine
Automtic 5 Gallon Water Filling Machine
- 30 Unit / Units per Month
- shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JZ | |
| Model Number | QGF | Certification | ISO |
Product Description
Description

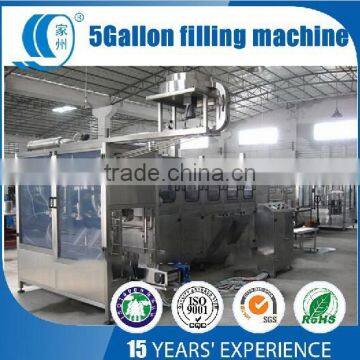

5 Gallon Water Filling Machine
1) Feature
Lonhon QGF series 20 Liter Water Bottle Machine is designed for producing 5 gallon barrel drinking water. There are 8 kinds of machines which can produce 60, 100, 150, 300, 450, 900, 1200 and 2000 5 gallon barrel drinking water per hour. Every machine is consisted of rinser, filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant rinsing. The disinfectant can be recycled. The machine also has automatic capping device, and cap rinsing device. The whole production line can automatic feeding barrel, rinsing, sterilizing, filling, capping, counting and output.
2) Technique Parameter
| QGF 60 | QGF 100 | QGF 150 | QGF 300 | QGF 450 | QGF 600 | QGF 900 | QGF 1200 | QGF 2000 |
Filling volume (L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Bottle specification (mm) | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
Capacity | 60 | 100 | 150 | 300 | 450 | 600 | 900 | 1200 | 2000 |
Air pressure (MPa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Air consumption (L/min) | 200 | 300 | 300 | 400 | 500 | 500 | 800 | 1200 | 1200 |
Power (kW) | 1.4 | 2.12 | 3.77 | 6.5 | 7.5 | 7.5 | 10 | 14 | 15 |
Rated voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Dimensions (L*W*H) (mm) | 2470*800*1580 | 3485*700*1550 | 4685*1420*1700 | 5130*2500*2220 | 6600*3500*2170 | 6600*3500*2170 | 6600*5000*2170 | 2800*2400*2700 | 2900*3500*2700 |
Weight (kg) | 800 | 800 | 1000 | 1750 | 2200 | 2500 | 2800 | 3100 | 4000 |
