Home > Products > corrugated sheet > Colored Corrugated Steel Sheet

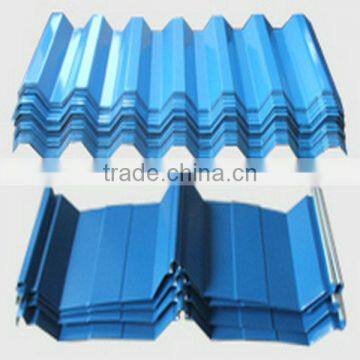

Colored Corrugated Steel Sheet
- qingdao port
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | STL | |
| Model Number | YX51-380-760 | Material | Color Steel |
Product Description
Specifications
1)Easy installation(2)High strength
(3)Low in costs
(4)Durable
(5)Nice appearance
color roof sheet is made from Pre-painted/Galvanized Steel Sheet/coil, it is a popular metal roofing material for both industrial and civil constructions
1 Raw materials
(1)Hot dipped galvanized steel sheet
(2)Pre galvanized steel sheet
(3)Galvalume steel sheet
(4)Pre painted galvalume steel sheet
2 Colors
Normal: Ocean blue (RAL5002); Grey white (RAL 9002)
Popular: Bright red
Special: Any other colors you request
3 Specification
Thickness: 0.2mm-0.7mm, min: 0.16mm; max: 1.5mm
Rib height: 25mm
Wave span:Depend on model you chose
Wave no.:Depend on model you chose
Effective Width: 320mm-1025mm
Length: No longer than 11800mm
4 Usage
(1)Roof
(2)Wall
(3)Ceiling
(4)Fence
5 Applications
(1) Gymnasium
(2) Warehouse
(3) Hospital
(4) Supermarket
(5) Shelter,
(6) Commercial facilities
(7) Industrial facilities
| Product name: | prepainted corrugated steel sheet |
| Resin constructure Technique of production: | Double painting and double baking process |
| Productivity: | 150,000Tons/year |
| Thickness: | 0.12-1.3mm |
| Width: | 600-1250mm |
| Length: | 1000-8000mm |
| Popular size: | Raw material 762mm to 665mm(after corrugated) and 9 waves Raw material 914mm to 800mm(after corrugated) and 11 waves Raw material 1000mm to 900mm(after corrugated) and 12 or 14 wavesWe also can produce as per customers requirement |
| Package weight: | 2-5 tons |
| Zinc Coating: | Z50-Z275G |
| Painting: | Top: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um |
| Standard: | JIS G3322 CGLCC ASTM A755 CS-B |
| Surface coating type: | PE, SMP, HDP, PVDF |
| Surface coating color: | RAL colors |
| Back side coatingcolor: | Light grey ,white and so on |
| Package: | export standard package or as request |
| Usage: | PPGI Corrugated Sheet is featured with light-weight,good-looking and anti-corrosion mainly used for construction industry |
8 Necessary information you shall advice for question | |||
Information you shall advice | The default option | ||
(1) | Model | Above mentioned | |
(2) | Thickness | 0.3mm | |
(3) | Paint | PE | |
(4) | Color | Sea blue; grey white;red | |
(6) | Max length | 5800mm | |
(7) | Order quantity | one full 20GP | |
(8) | Packing | Normal as mentioned | |
