Product Details
| Condition | New | Place of Origin | Henan, China | |

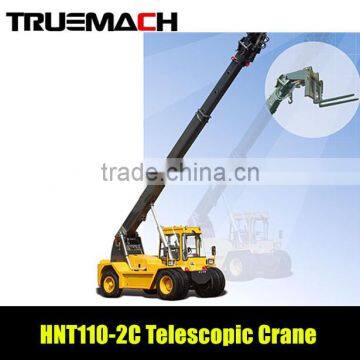

| Brand Name | TRUEMACH | Model Number | HNT110-2C telescopic forklift | |
| Type | Powered Pallet Truck | Power Souce | Diesel Engine | |
| Overall Dimensions | 5400x2200x2530mm | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Telescopic handler comes with hydraulic-mechanical transmission, hydraulic power steering, hydraulic braking and rear-wheel steering.
Two-stage quadrilaterial telescopic boom serves as the working unit.
The machine is equipped with a side shifter.
In addition, a range of options including such accessories as the bucket, lifting hook, and boom, etc. are available to the customers.
The telescopic handler offers better performance than a general forklift in terms of the handling height and cross-country ability.
The machines are applicable to the unstuffing and casing of pellatized goods in containers, as well as handling, stacking and short-distance transportation of a variety of packaged goods, suitable for mang different working enviroments, is ideal equipment for loading and unloading, lifting and transportation in mining , factory, architecture, building materials, dock, municipal engineering industries and more.
| Item | Unit | HNT30-4 | HNT40-4 | HNT110-2C | |
| Rated lifting capacity | Kg | 3000 | 4000 | ≤11000 | |
| Load center distance/lifting capacity | 3000mm | 3500mm/3000kg(boom) | 3000mm/ 6000kg9boom);5000kg(fork) | ||
| Horizontal reach at maximum extension | mm | 2570 | 5500(boom) | 6900(fork);7900(boom) | |
| Max. lifting height of mian hook | mm | 6350 | 9200(boom) | 7400(fork);10300(boom) | |
| Max. travel speed | Km/h | 30 | 30 | 25 | |
| Min. ground clearance | mm | 350 | 350 | 310 | |
| Min. turning radius (outer wheel) | mm | 7250 | 7250 | 6800 | |
| Dead weight | Kg | 8960 | 9440 | 13000 | |
| Grade ability | % | 30 | 30 | 20 | |
| Overall dimension | Length | mm | 5400 | 6100 | 5400 |
| Width | mm | 2280 | 2280 | 2200 | |
| Height | mm | 2700 | 2700 | 2530 | |
| Inner width of cab | mm | 740 | 740 | 1638/1785 | |
| Wheel tread | mm | 1900 | 1900 | 1900 | |
| Wheelbase | mm | 2520 | 2520 | 2998 | |
| Engine | Engine manufacturer | Chinese Dongfeng Cummins Diesel | |||
| Rated power | Kw | 60 (HNT110-2C 75kW) | |||
| Rated speed | r/min | 2000 (HNT110-2C 2200rpm) | |||
| Tyre | Front wheel | 16/70-20 | 16/70-24 | 11.00-20 | |
| Rear wheel | 10.00-20 | 10.00-20 | 9.00-20 | ||
Note: The above parameters are subject to change without pior notice.
