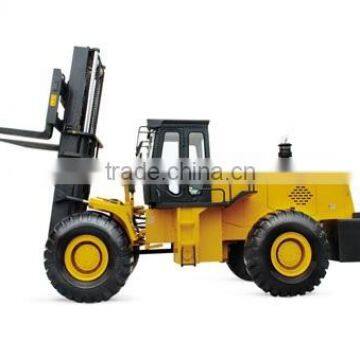

CPCY150 15Ton 4WD All Rough Terrain Forklift

FOB Price

US$ 65,000 - 80,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Fujian, China
Brand Name	Truemach	Model Number	CPCY150 rough terrain forklift
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	15,000kg	Max. Lifting Height	4380mm
Min. Lifting Height	2980mm	Fork Length	1600mm
Fork Width	180mm	Overall Dimensions	7500x2600x3200mm
Certification	CE ISO	After-sales Service Provided	Engineers available to service machinery overseas

CPCY150 15Ton 4WD Rough Terrain Forklift

General
Model		CPCY150
Power type		Diesel
Rated capacity		15,000 kg
Load center		800 mm
Characteristic&Dimension
Max. lifting height		3000 mm
Free lifting height		1950 mm
Mast tilt angle(Forward/Rear)		8°/12°
Front overhang		950 mm
Min.ground clearance(unladen/laden)		230/220 mm
Length to face of fork		75000mm (with fork)
Overall width		2600 mm
Mast lowered height		2980 mm
Mast extended height		4380 mm
Height to the top of cabin		3200 mm
Min. Turning radius		5500 mm
Performance
Max. travel speed		25(unladen)/24(laden) km/h
Max. Drawbar pull(Laden)		180 kN
Max. Gradeability(Laden)		25%
Max. Lifting speed(Laden)		270 mm/s
Tyre
Front wheel tread		1500 mm
Rear wheel tread		1550 mm
Wheelbase		3900 mm
Weight
Self weight (unladen)		25000 kg
Power&Transmission
Engine	Model		WP615.61AG
	Manufacture		We’chai DEUTZ
	Rated output/r.p.m.		162kW/2200
	No. of cylinder		6
