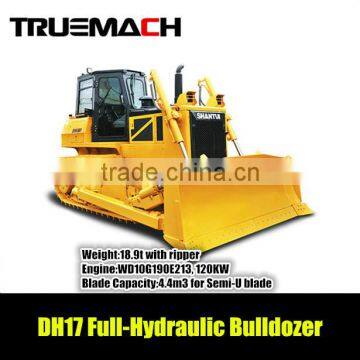

DH17 170hp Full-Hydraulic Bulldozer

-Weichai engine and high-efficiency fuel injection pump features high torque, high performances, high parts universality, and low maintenance cost.

-The electronically controlled static pressure drive system equipped can automatically adapt to the load variation and provide best bulldozing speed under different working loads.

1.The intelligent matching technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%.

2.The ergonomic hexahedral cab features large space and excellent visual field.

3.The suspended single accelerator pedal features small volume, large foot space, and high operation comfort. ?

4.The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.

5.The integrally sealed shock-absorbing system of the cab reduces the interior noise by 3~4dB.

6.The safety passage system of the whole machine guarantees the driver’s safety.

7.With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the working device can be controlled by single joystick.

8.The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency.

9.The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions.

10.The accurate control can realize the bulldozing operations in narrow spaces.

11.The chassis system features long ground length, high ground clearance, stable traveling, and excellent trafficability and the semi-U blade equipped features powerful operation capability.

12.The optional three-tooth ripper and traction frame are available to meet the diversified operation needs.

13.The structural parts inherit the excellent quality of Shantui mature products.

14.The electric harnesses adopt seamless corrugated pipes and branching deconcentrators, featuring high protection grade.

15.The core electric and hydraulic units adopt imported products, featuring stable and reliable quality and extremely high reliability.

16.The static drive system features compact structure, small volume, light weight, and easy maintenances.

17.The modular structure eases the disassembling of parts and ensures low maintenance cost.

Performance Parameters
