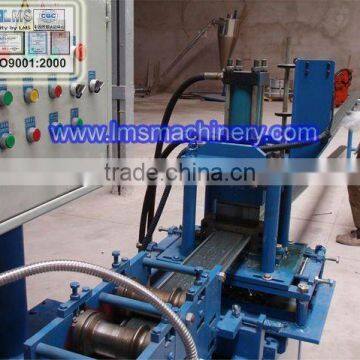

roller shutter slates roll forming machine
- Guangzhou port for Roll Forming Machine
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Steel Structure Roof Truss Machines C/Z Purlin Metal Stud Cold Roll Forming Machine
-
Automatic C and Z Shaped Steel Quickly Change Purlin Roll Forming Machine
-
Multfunction 10Tons Hydraulic Full-Automatic Decoiler With Car Work For Roll Forming Machine
-
automatic profile plate decoiler machine
-
steel coil manual decoiler for roll forming machine
-
LMS Good Quality C Shaped Cable Tray Industry Roll Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Other, rolling shutter door | |
| Production Capacity | 8-12m/min | Place of Origin | Guangdong, China | |
| Brand Name | LMS | Model Number | LMS4145 | |
| Power(W) | 7.5kw | Voltage | 380V | |
| Dimension(L*W*H) | 5m*1.3m*1.3m | Weight | 3.2T | |
| Certification | CE ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
roller shutter slates roll forming machine
Profile Drawing
door frame roll forming machine
Working Flow
door frame roll forming machine
Machine Components:
No. | Name | Qty |
1. | De-coiler | 1 Set |
2. | Roll Forming Machine | 1 Set |
3. | Hydraulic Cutting Device | 1 Set |
4. | PLC Control Box | 1 Set |
5. | Output table | 1 Set |
Technical Parameters:
1. Manual decoiler
Hand operated type
Max. outer diameter of coil: Ø 1400mm
Inner diameter of coil : Ø 400-450mm
Max width of coil : 400mm
Capacity : 2000kg
Quantity : One
door frame roll forming machine
]
door frame roll forming machine
2. Roll forming main machine
Roll forming station : 14 Nos
Material of roller: Gr15 steel
Surface heat treatment of roller : HRC 55°~57°
Roller surface with polishing treatment
Roller main shaft diameter : Ø 40 mm, material :45#steel
Main bearing : 60208
Side wall thickness : 22mm
Girth Gear thickness : 35mm
Motor : 5.5 kw , cylinder pin speed reducer
Forming speed : 10 m/min
door frame roll forming machine
3. Hydraulic Cut-Off Device
Automatic oil-pressure auto cut-off machine
Equip with cutting mould 1 set ( with waste to cut-off)
Motor: 3kw
door frame roll forming machine
4. Run-Out Table
Precision welding by #8 channel steel
Length : 6M
door frame roll forming machine
5. Eletronic Control System
Use normal electrical components to control
Main component : Taiwan Shi Lin or joint venture
Length decided by switch
Adopt to stop to cut-off
Power supply:380V 50Hz
door frame roll forming machine
Pictures
We and Our Customers
door frame roll forming machine
Terms:
l PAYMENT TERM
By T/T, 40% as Deposit and 60% Balance Before Shipment.
l DELIVERY DAYS
75 DAYS
l INSTALLATION, MAINTENANCE AND OPERATOR TRAINING
1. 1 year guarantee for spare parts is included in quotation.
2. The operator training in our factory is free.
3. The technician could be sent for installation and operator training at site, but the fee should be discussed separately.
