shop door machine rolling shutter door forming machine
- 50 Set / Sets per Month
- guangzhou port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
LMS 42mm 40mm stainless Furniture Drawer Slide Telescopic Channel production line equipment
-
LMS ball bearing Furniture Drawer Slide Telescopic Channel production line equipment
-
LMS solf colose Drawer Slide Telescopic Channel production line equipment
-
LMS stainless cabinet Drawer Slide Telescopic Channel production line equipment
-
LMS 45mm Drawer Slide Telescopic Channel production line equipment
-
LMS stainless Furniture Drawer Slide Telescopic Channel production line equipment
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Glazed Steel | Use | Other, DOOR | |
| Production Capacity | 8-10m/min | Place of Origin | Guangdong, China | |
| Brand Name | LMS | Model Number | 89X17X1.2 | |
| Power(W) | 5.5KW | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 5m*1.3m*1.3m-15m*1.3m*1.4m | Weight | 5 Tons | |
| Certification | CE/ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
shop door machine rolling shutter door forming machine
shutter door machine for shop
punching shutter door making machine
door shutter roll forming machine for sale
1. Manual decoiler
Hand operated type
Max. outer diameter of coil: Ø 1400mm
Inner diameter of coil : Ø 400-450mm
Max width of coil : 400mm
Capacity : 2000kg
Quantity : One

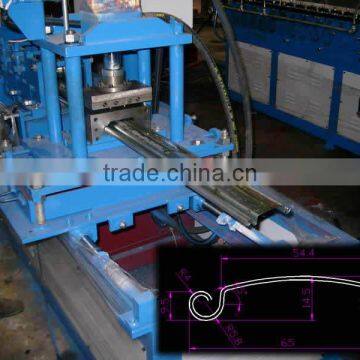

2. Roll forming main machine
Roll forming station : 14 Nos
Material of roller: Gr15 steel
Surface heat treatment of roller : HRC 55°~57°
Roller surface with polishing treatment
Roller main shaft diameter : Ø 40 mm, material :45#steel
Main bearing : 60208
Side wall thickness : 22mm
Girth Gear thickness : 35mm
Motor : 5.5 kw , cylinder pin speed reducer
Forming speed : 10 m/min
3. Hydraulic Cut-Off Device
Automatic oil-pressure auto cut-off machine
Equip with cutting mould 1 set ( with waste to cut-off)
Motor: 3kw
4. Run-Out Table
Precision welding by #8 channel steel
Length : 6M
5. Eletronic Control System
Use normal electrical components to control
Main component : Taiwan Shi Lin or joint venture
Length decided by switch
Adopt to stop to cut-off
Power supply:380V 50Hz
