Genuine Part Replacement HYDAC Replacement XDFM-60x10 Hydraulic Oil Line Medium Pressure Filter

Specifications

Genuine Part Replacement HYDAC Replacement XDFM-60x10 Hydraulic Oil Line Medium Pressure Filter

P.S These are just part of our clients, in no particular order.

XDFM series filters apply to the medium pressure line with bypass valve and clogging indicator;

this filter can effectively filter the impurity in the hydraulic oil and assure the normal operation of hydraulic system.

Filter basic construction

XDFM series filters consist of the cover and the spin-on housing. .

1. Wide range of supply for filter, filter element and other combined filtration equipments
2. Compltely interchangeable with over 500 international brand originals
3. Very competitive price and fast delivery time

4. Making strictly in accordance with ISO, DIN, IDF and 3A standards, quality comply with GMP requirement.

5. Imported filtration materials

2.1 Housing material

Filter cover: High strength casting aluminum alloy
Filter bowl: High-strength aluminum alloy

2.2 Seals

Perbunan (=NBR) (-30~+120°C);  Viton=FPM(-20~+200°C)

2.3 Filter element

Filter medium material

High strength carbon steel skeleton

2.4 Optional accessories

Without clogging indicator, with steel plug

Visual clogging indicator: CM-03

Electrical clogging indicator: CM-05

Combined visual /electrical clogging indicator: CM-08

Bypass valve (setting 6 bar)

2.5 Type of connection (chosen according to the filter type)

Metric threaded connection;  Inch thread connection

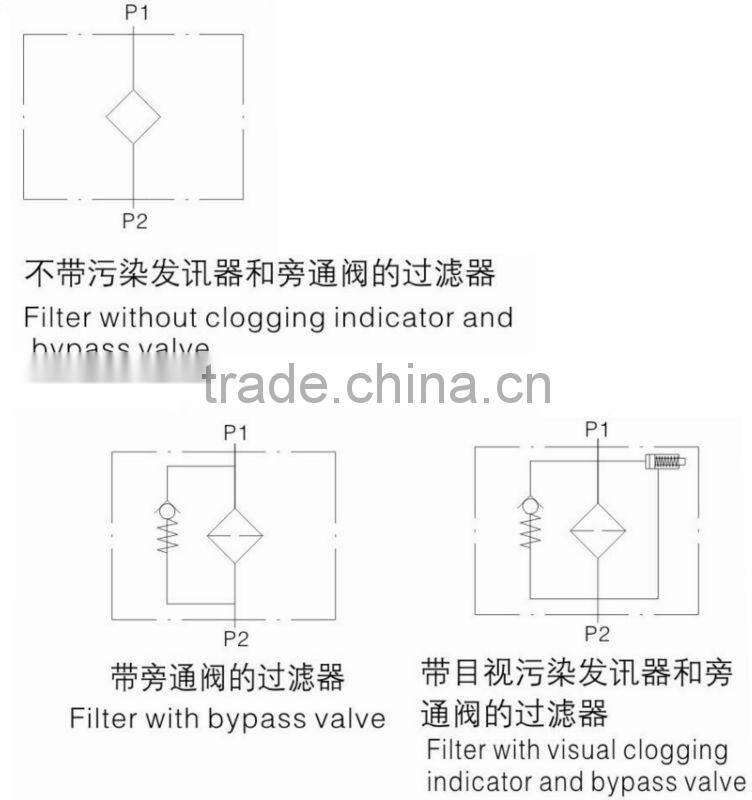

2.6 Symbols

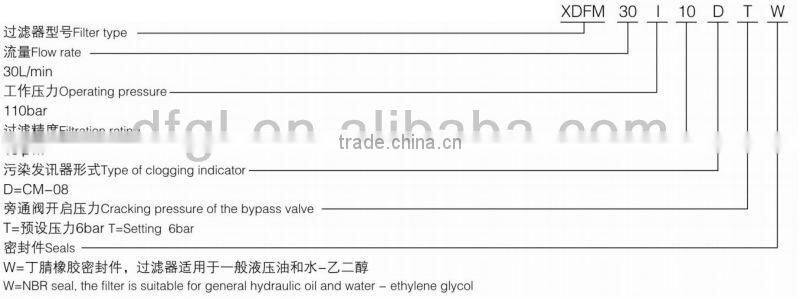

3.1 Order example

3.2 Technical Data                                                                                                                                                                                           Unit (mm)

Note: * represents filtration rating.

♦DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce

many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments,

pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully

achieved the position both in China and across the world.

♦DFFILTER filtration technology testing center covers a total area of 450 square meters, of which,

clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration

technology inspection and testing for in-house science research, production and industry service.

♦On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company

in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889

new standard and other international standards perfectly.

♦Testing center also has the developed equiment for filter performance testing, which can make the

comprehensive examination for filter element/cartridge performance. These can insure that company’s filter

with high capacity, long life, high reliable in full compliance with our customer's  requirement.

♦The testing centre can take 7 tests of hydraulic filter performance evaluation, they are as follows:

ISO 2941 Verification of collapse/burst resistance

ISO 2942 Verification of fabrication integrity and determination of the first bubble point

ISO 2943 Verification of material compatibility with fluids

ISO 3723 Method for end load testing

ISO 3724 Verification of flow fatigue characteristics

ISO 3968 Evaluation of pressure drop versus flow characteristics

ISO 16889 Multi-Pass method for evaluating filtration performance
