1. Product introduction

 XDFM series filters apply to the medium pressure line with bypass valve and clogging indicator;

 this filter can effectively filter the impurity in the hydraulic oil and assure the normal operation of hydraulic system.

2. Product characteristics

Filter basic construction

XDFM series filters consist of the cover and the spin-on housing. .

1. Wide range of supply for filter, filter element and other combined filtration equipments
2. Compltely interchangeable with over 500 international brand originals
3. Very competitive price and fast delivery time

4. Making strictly in accordance with ISO, DIN, IDF and 3A standards, quality comply with GMP requirement.

5. Imported filtration materials

2.1 Housing material

Filter cover: High strength casting aluminum alloy
Filter bowl: High-strength aluminum alloy

2.2 Seals

Perbunan (=NBR) (-30~+120°C);  Viton=FPM(-20~+200°C)

2.3 Filter element

Filter medium material

High strength carbon steel skeleton

2.4 Optional accessories

Without clogging indicator, with steel plug

Visual clogging indicator: CM-03

Electrical clogging indicator: CM-05

Combined visual /electrical clogging indicator: CM-08

 Bypass valve (setting 6 bar)

2.5 Type of connection (chosen according to the filter type)

Metric threaded connection;  Inch thread connection

2.6 Symbols

3. Type selection and technical data

3.1 Order example

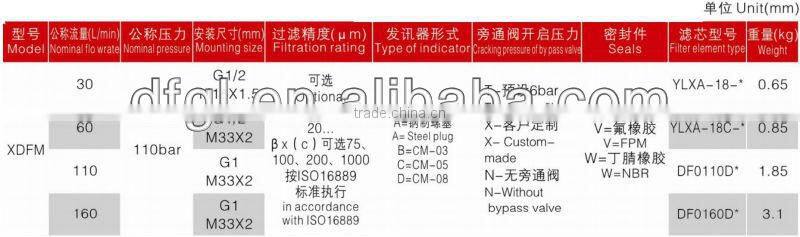

3.2 Technical Data

  Note: * represents filtration rating.

4. Mounting Size

5.  Product characteristic curves

The total filter assembly pressure drop is the sum of housing and element pressure drop,filter selection calculated as per the following curves.

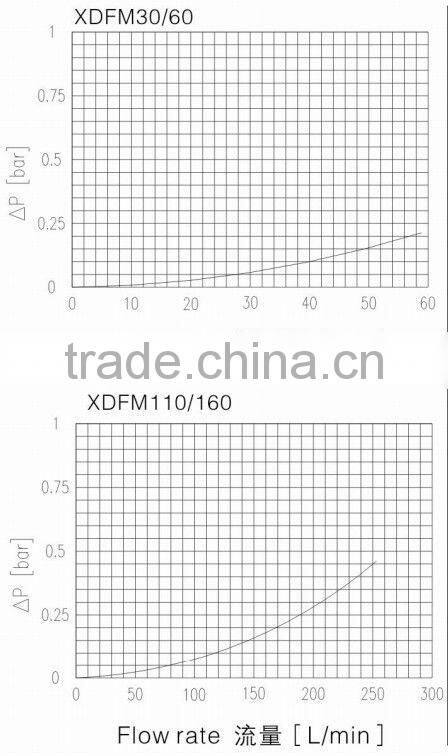

5.1 Housing pressure drop / flow rate characteristic curves

Housing pressure drop /flow rate characteristic curves are according to ISO3968, and suitable for the mineral oil with density 0.86 kg/dm³ and kinematic viscosity 30 mm²/s.

                       Filter housing pressure drop

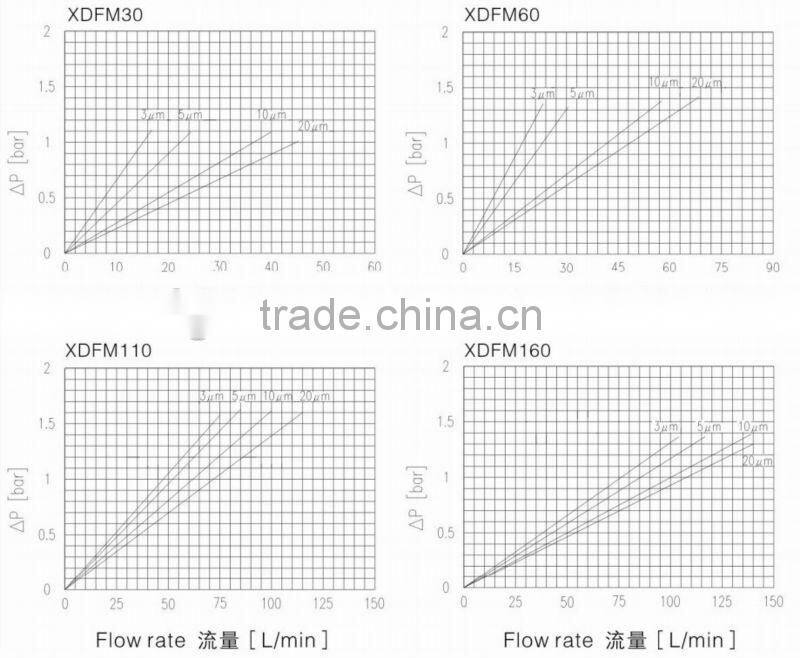

5.2 Differential pressure / flow characteristic curves of filter element

The characteristic curves of filter element are suitable for the mineral oil with kinematic viscosity 30 mm²/s. Differential pressure and viscosity is proportional.

                    Clean filter element pressure drop

  Note: If any other requriements, please consult us.
