50L Hydraulic Oil Tank Used In Excavator

                           ^{Hydraulic Oil Tank For Sale}

^{1.PRODUCT INTRODUCTION}

1.1 Product material :

Imported Japanese aluminized steel plate

1.2 Production method :

Mold punching stretch forming

1.3 The welding way :

Special welder welding

1.4 Corrosion resistance :

Excellent corrosion resistance of aluminum plate can ensure tank no rust in the life, so as to ensure that the hydraulic oil and hydraulic oil cleanliness

1.5 The electrical conductivity :

Excellent conduction performance, can effectively reduce the temperature of the hydraulic oil.

1.6 Tank internal :

Built-in diaphragm in the tank, increasing flow circulation path, can improve the effect of cooling, air separation and precipitation of impurities.

2. STRUCTURE

2.1 Integral fuel tanks

2.2 Separate tank

2.3 Open tank

2.4 Cosed  tank

3. CAPACITY

3.1 The capacity of the tank, that is, the oil level height is effective volume height 80% when the fuel tank, tank should be based on the system of fever, to calculate the heat balance principle.

3.2 Under normal circumstances, the tank has a capacity of rated flow of hydraulic system of the estimate.

3.3  Hydraulic Oil Tank  YX-50L-01 : 50L,80L,120L

4. DESIGN CONSIDERATION

4.1 Suction hose and return hose should be far apart, as far as possible with a baffle between two pipes, and in order to increase the oil circulation, make the oil has enough time separation bubble, precipitated impurities, dissipate heat. Three-quarters of the baffle height for the best overall height of oil level.
4.2 The fuel tank of the return pipe should be located in the oil under the surface, in order to avoid the oil return oil shocks in oil tank liquid level, make the oil inside the bubble, cause cavitation, adverse effects of hydraulic system.

5.PRODUCT ADVANTAGE

5.1 High anticorrosion performance
5.2 Good heat dissipation
5.3 Good filtering effect and high cleanliness
5.4 Structure optimization of impurity separation effect is good
5.5 Compact structure suitable for vehicle
5.6 Return filter is with big flow rate, pressure loss≤ 0.5 Mpa, high-rating glass fiber element is adopted with high filtration efficiency, β10≥200, β5≥200.
5.7 Pre-pressuring air filter makes oil tank under positive pressure status to reduce foaming phenomenon in return oil tank, reduce the bubbles in oil and corrosion phenomenon of oil

pump.

6.ABOUT US

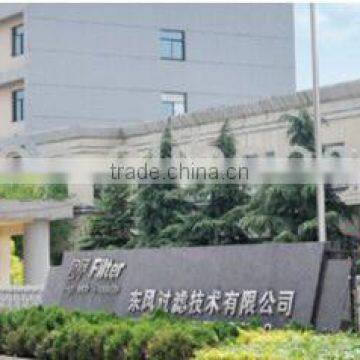

6.1 History of DFFILTRI

DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
6.2 Test center of DFFILTRI

DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
6.3 Quality management system

On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly.

7.OUR ADVANTAGE

1) Adopting the new industrial concept
2) Establishing world-class R&D and testing center
3) Possessing powerful technical force and R&D strength
4) Having the world's advanced production equipment
5) Producing high quality products that comply with international and national standards
6) Outstanding quality products to meet or exceed customer's expectation
7) Professional and wholehearted pre-market after-sales service

8.How to Contact Us?

Xinxiang Dongfeng Filter Technology Co., Ltd.

Add: No.42, West of Beigan Road, Xinxiang, Henan, China (mainland)

Telephone: 86-373-2677957

Mobile Phone: +86-18336074703

Fax: 86-373-2634868
