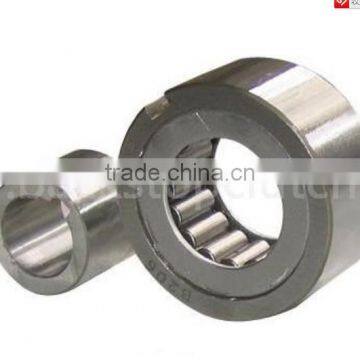

B213(S213) Overrunning Clutch Bearing With Sprags Used in Reducers in High Quality
- Shanghai ; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Integrated Freewheel FXM Series Overrunning Clutch With Sprag Lift-off X Used in Gearbox,Flende and S-EW Reducer
-
Integrated Freewheel FXM31-17 Overrunning Clutch With Sprag Lift-off X Used in Gearbox,Flende and S-EW Reducer
-
Integrated Freewheel FXM38-17 One Way Sprag Clutch Bearing With Sprag Lift-off X Used in Gearbox,Flende and S-EW Reducer
-
Integrated Freewheel FXM46-25 One Way Sprag Clutch Bearing With Sprag Lift-off X Used in Gearbox,Flende and S-EW Reducer
-
Integrated Freewheel FXM51-25 One Way Overrunning Clutch Bearing With Sprag Lift-off X Used in Gearbox,Flende and S-EW Reducer
-
FXM56-25 One Way Overrunning Clutch Backstop Bearing for Gearbox
Product Details
| Brand Name | SUMA or OEM | Bore Size | 70.029, | |
| Outside Diameter | 120, | Model Number | B213 | |
| Precision Rating | P6 | Seals Type | open | |
| Place of Origin | Jiangsu, China |
Product Description
Type S200(B200) is a non bearing supported sprag type freewheel. Including: S203(B203) S204(B204) S205(B205) S206(B206) S207(B207) S208(S208) S209(B209) S210(B210) .
The sprags run directly on the shaft provided by the user. Bearings are required to support axial and radial loads.
Lubrication and sealing must also be provided by the installation.
The housing bore to receive the outer race will be machined with a H7 tolerance.
A key will transmit the torque. The shaft on which the sprags run must have a surface hardness of HRc 60 to 62 for a
finished depth of 0, 6 mm minimum. Core hardness should be HRc 35 to 45. Surface roughness must not exceed 22 CLA.
Maximum shaft taper 0, 01 mm per 50mm length. Concentricity between shaft and housing bore should be maintained
within TIR 0, 05 mm. The preferred lubrication is oil. The design allows the use of most of the common lubricants used in
power transmission including gear oils with EP additives.
When necessary grease lubrication is also possible.

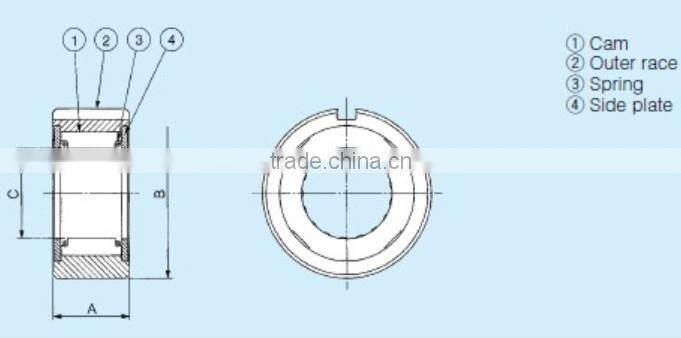

Type | Drag torque(N.m) | Overrunning Speed (r/min) | Shaft size | Outer race h7(mm) | Thickness | Key way | |
inner race | outer race | (mm) | (mm) | ||||
B203 | 39.2 | 2400 | 500 | 16.51 | 40 | 25 | 4.0×2.5 |
B204 | 58.8 | 2400 | 500 | 18.796 | 47 | 25 | 5.0×3.0 |
B205 | 98 | 1800 | 400 | 23.622 | 52 | 25 | 5.0×3.0 |
B206 | 235 | 1800 | 350 | 32.766 | 62 | 28 | 7.0×4.0 |
B207 | 372 | 1800 | 300 | 42.088 | 72 | 28 | 7.0×4.0 |
B208 | 549 | 1800 | 200 | 46.761 | 80 | 32 | 10.0×4.5 |
B209 | 549 | 1200 | 200 | 46.761 | 85 | 32 | 10.0×4.5 |
B210 | 784 | 1200 | 200 | 56.109 | 90 | 32 | 10.0×4.5 |
B211 | 784 | 1200 | 200 | 56.109 | 100 | 32 | 10.0×4.5 |
B212 | 1230 | 1200 | 180 | 70.029 | 110 | 42 | 10.0×4.5 |
B213 | 1230 | 1200 | 180 | 70.029 | 120 | 42 | 10.0×4.5 |
B214 | 1390 | 1000 | 180 | 79.356 | 125 | 42 | 12.0×4.5 |
