RSBW25 One Way Wedge Block Bearing
- Shanghai ; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
FWD331808PRS Freewheel Cage Clutch Bearing Use as Motorcycle Brake
-
MZEU90 Oneway Cam Clutch Track Roller Bearing
-
FCN20R Single Direction Roller Bearing With High Precision
-
BREU30-(K) C Pre-greased One-way Bearing With Couplings
-
MZEU80 One Way Roller Clutch Lathe Machine Clutch
-
Ratchet Wheel / One Way Clutch Ratchet
Product Details
| Brand Name | Suma or OEM | Bore Size | 106, | |
| Outside Diameter | 25, | Model Number | RSBW25 | |
| Precision Rating | P6 | Seals Type | using shield protected Outer Rings. | |
| Number of Row | Single Row | Place of Origin | Jiangsu, China |
Product Description
| RSBW25 one way wedge block bearing | ||
| Details | ||
| Model | RSBW 25 | |
| Material | GCr15 | |
| Type | roller | |
| Inner Diameter | 25mm | |
| Outer Diameter | 106mm | |
| Weight | 2.6kg | |
| Width | 48mm | |
| Overrunning Speed | 400r/min | |
| Torque | 606Nm | |
| Application | conveyor;kelp machine;other machine | |

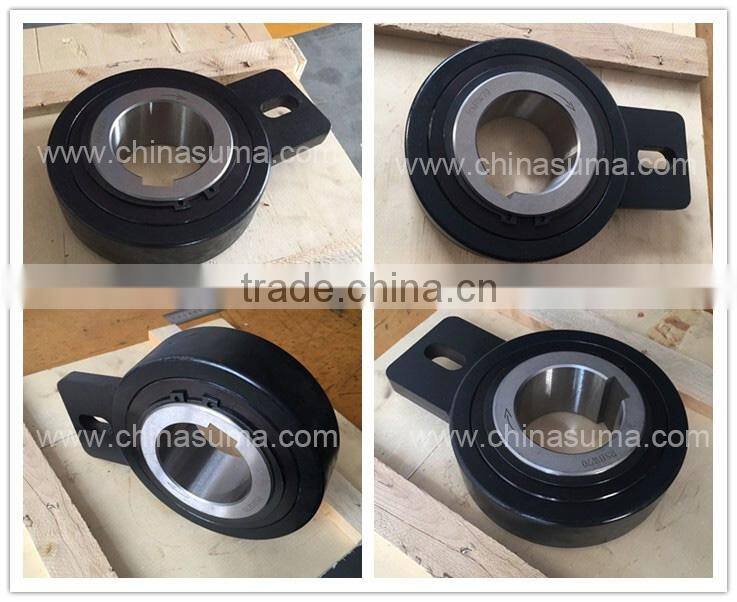

Type RSBW is a DC sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds and sealed using shield protected Outer Rings.
Unit is delivered grease lubricated ready for installation in either a horizontal or vertical position.
Primarily used as a backstop, this type provides a high torque capacity with a minimum space
requirement.
The design allows installation in difficult environments such as high humidity or water splash areas.
A bolt, secured to a fixed part of the machine and passing through the slot in the torque arm,
provides the rotational stop. Radial clearance on this bolt should be equal to 1-3 % of the slot
width. The torque arm and the bearings must not be prestressed.

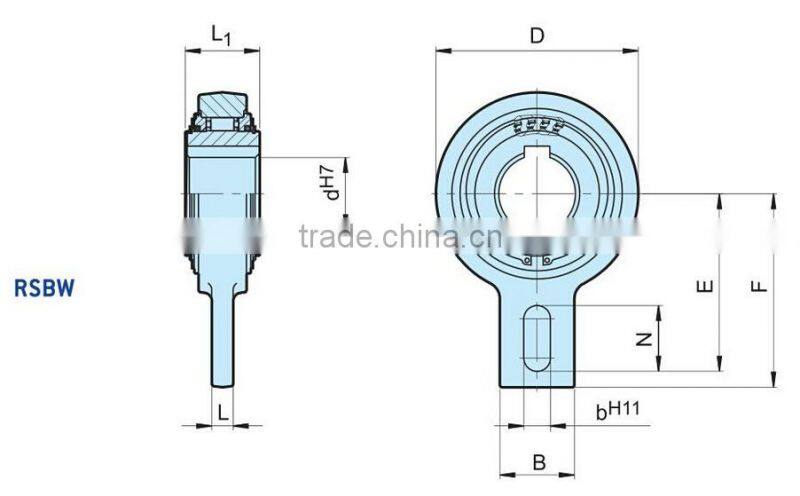

| Type | Size | Overrun speed | Weight | |||||||||
| RSBW | dH7 | TKN1) | nimax | D | L 1 | F | E | B | N | L | bH11 | |
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| 20 | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 | |
| 25 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.6 | |
| 30 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.5 | |
| 35M | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 | |
| 35 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.4 | |
| 40 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.6 | |
| 45 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.5 | |
| 50 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.5 | |
| 55 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.4 | |
| 60 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.5 | |
| 70 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.4 | |
| 80 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.9 | |
| 90 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.8 | |

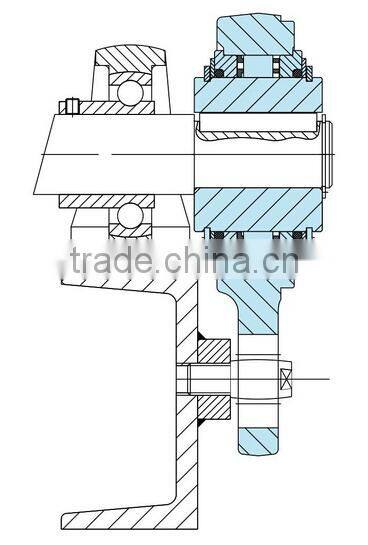

MOUNTING EXAMPLE
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology
Q: Why do we choose your company?
A: We always insist quality firstly. We have our bearing factory, therefore we have advantage in quality control and price.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.
