Packing Machine TGC-D2590 One Direction Roller Bearing With Spline Groove
- Shanghai ; Ningbo for one direction roller bearing with spline groove
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


FBL Complete Freewheels Ball Bearing With Shaft Coupling
 -


FGR...R Complete Freewheels Bearing for Assembly With Connecting Parts
 -


BA...XG BC...XG Complete Freewheels With Lever Arm
 -


High Overrunning Speed Bearing RSBI100 Sprag Freewheel for Crawl Drives
 -


One Way Bearing NSS (AS)
 -


CK-A70150 Sprag Type Freewheel One-Way Bearings CKA70150 70X150X42

Product Details
| Brand Name | SUMA | Bore Size | 20, | |
| Outside Diameter | 68, | Model Number | TGC-D roller bearing one way |
Product Description

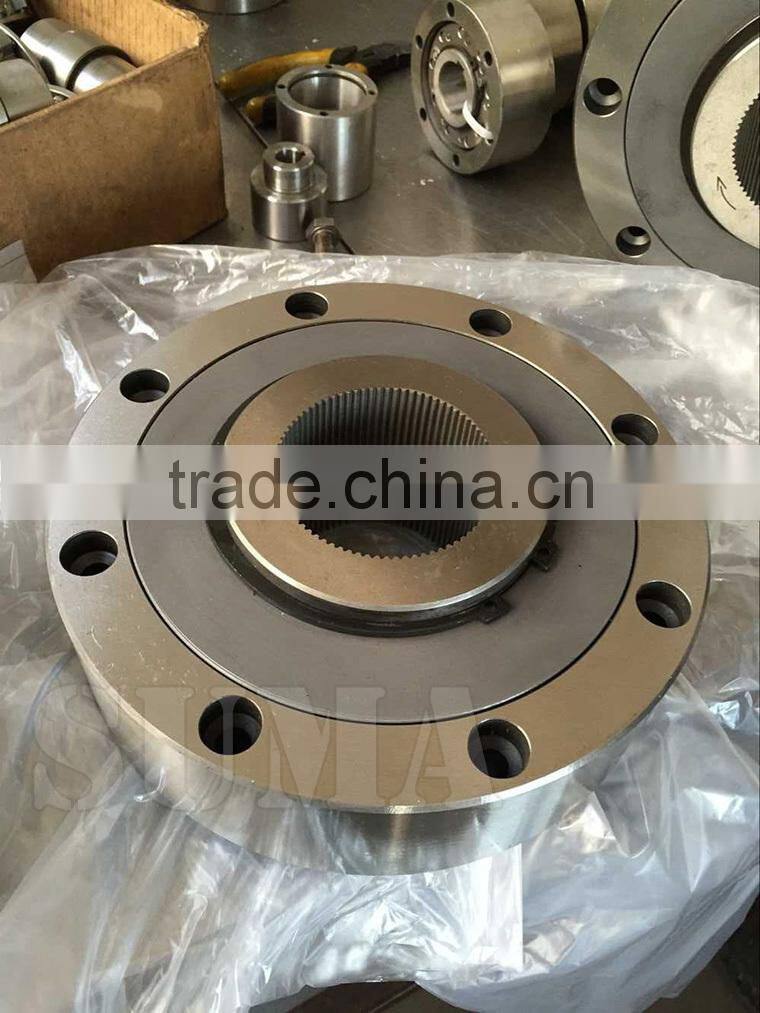

Packing machine TGC-D2590 one direction roller bearing with spline groove
Features of one direection roller bearing
Type TGC-D is a roller type freewheel non bearing supported. Earrings are required to support
axial and radial loads. Lubrication and sealing must also be provided by the installation.
Standard lubrication is oil.
Product name  | one direction roller bearing  | |
Model  | TGC-D2590  | |
Torque capacity  | 215Nm  | |
Inner diameter  | 25mm  | |
Outer diameter  | 90mm  | |
 Overrunning speeds  | Inner race  | 850r/min  |
Outer race  | 1300r/min  | |
Material  | GCr15  | |
Thickness  | 37mm  | |
Weight  | 1.3kg  | |
Structure  | Roller type freewheel  | |
Application  | Printing, packing, medical, food, chemical , paper making machinery  | |
Package  | Wooden box or customized  | |
Payment terms  | TT, L/C, D/A, D/P, Western Union  | |
Delivery time  | 7-10 days after order confirmed  | |

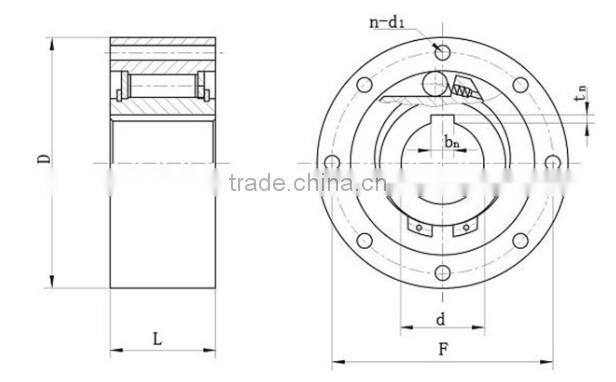

PARAMETER LIST of one direction roller bearing
| TYPE | NOMINAL TORQUE [N. m]  | OVERRUNNING | DIMENSION IN CONTOUR [mm] | WEIGHT | ||||||
| LIMINING SPEEDS [r/min] | [Kg] | |||||||||
| INNER RACE | OUTER RACE | d | D | F | L | n-di | bnX tn | |||
| [H7] | [h7] | |||||||||
| TGC-D1247 | 12 | 1550 | 3000 | 12 | 47 | 38 | 20 | 3-5. 5 | 4x1.8 | 0.21 |
| TGC-D1555 | 42 | 1150 | 2700 | 15 | 55 | 45 | 30 | 3-5. 5 | 5x2. 3 | 0.44 |
| TGC-D2068 | 111 | 1000 | 1800 | 20 | 68 | 58 | 34 | 4-5. 5 | 6x2.8 | 0. 70 |
| TGC-D2590 | 215 | 850 | 1300 | 25 | 90 | 78 | 37 | 6-5. 5 | 8x3. 3 | 1. 30 |
| TGC-D30100 | 380 | 750 | 1050 | 30 | 100 | 87 | 44 | 6-6.6 | 8x3. 3 | 2. 00 |
| TGC-D35110 | 547 | 650 | 975 | 35 | 110 | 96 | 48 | 6-6.6 | 10x3. 3 | 2.6 |
| TC-D40125 | 760 | 600 | 850 | 40 | 125 | 108 | 56 | 6-9.0 | 12x3. 3 | 3. 90 |
| TGC-D45130 | 855 | 525 | 750 | 45 | 130 | 112 | 56 | 8-9.0 | 14x3. 8 | 4. 00 |
| TGC-D50150 | 1634 | 475 | 650 | 50 | 150 | 132 | 63 | 8-9.0 | 14x3. 8 | 6. 00 |
| TGC-D55160 | 1995 | 425 | 600 | 55 | 160 | 138 | 67 | 8-11.0 | 16x4. 3 | 7. 20 |
| TGC-D60170 | 2660 | 400 | 550 | 60 | 170 | 150 | 78 | 10-11.0 | 18x4. 4 | 9.2 |
| TGC-D70190 | 4370 | 325 | 450 | 70 | 190 | 165 | 95 | 10-11.0 | 20x4. 9 | 11.8 |

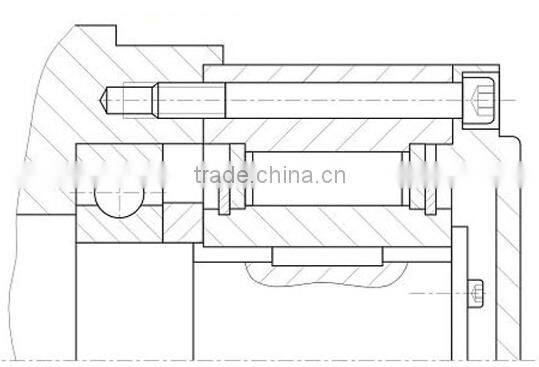

Installation of one direction roller bearing
Standard install is the outer race fitting In the rabbet and screwed to the bond. The Innerrace Is keyed to the shaft. The rabbet for install the outer race must be H7 tolerance, ensure a high axiality.

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the one direction roller bearing ?
A: Usually one direction roller bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of one direction roller bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the one direction roller bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls contact me anytime freely !
