Home > Products > One way bearing (freewheel bearing) > SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way
SUMA Bearing FE430Z2 Backstop Clutch Holdback Sprag Bearing One Way
- Shanghai Ningbo for Holdback Bearing
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Freewheel Bearing FWD...PRS Clutch With High Quality in China
-
RL478 One Way Freewheel Roller Clutch Bearing
-
GFK45 Sprag Type One-Way Bearing for High Tension Switch
-
DC One Way Bearing Sprag Cage/ One Way Bearing Race/sprag Clutch With Races
-
Industrial Spare Parts Type AA Roller Bearing
-
AE12 Roller Type Rubber Wheel Bearing With Backstop Function
Product Details
| Brand Name | SUMA of holdback bearing fe | Bore Size | 2, 80 | |
| Outside Diameter | 10, 88 | Model Number | FE clutch bearing | |
| Precision Rating | P6 | Seals Type | Non sealed | |
| Place of Origin | Jiangsu, China |
Product Description

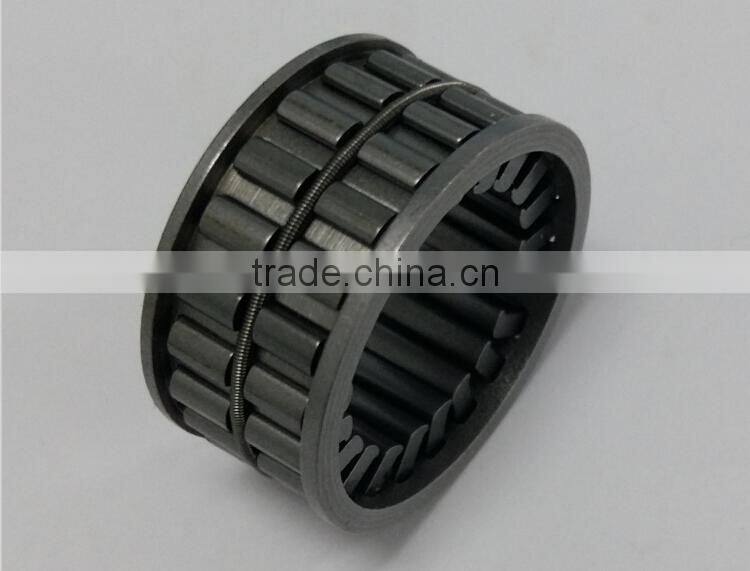

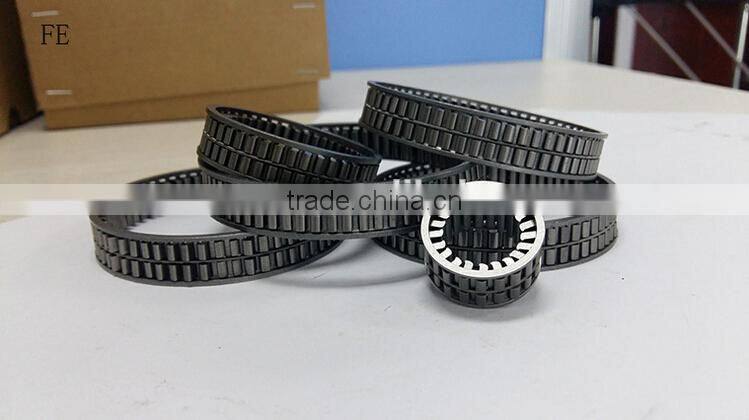

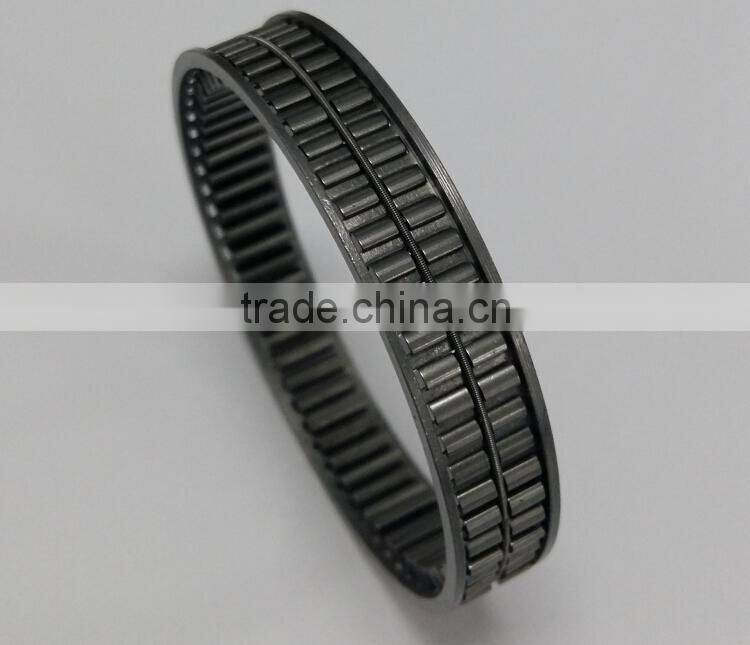

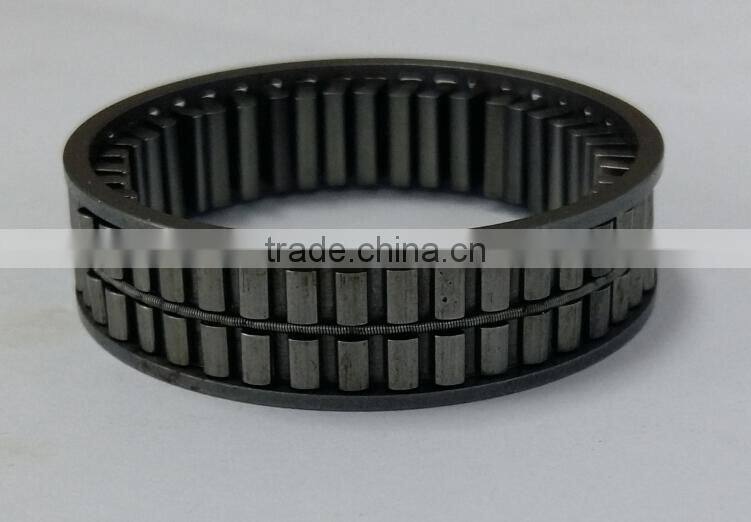

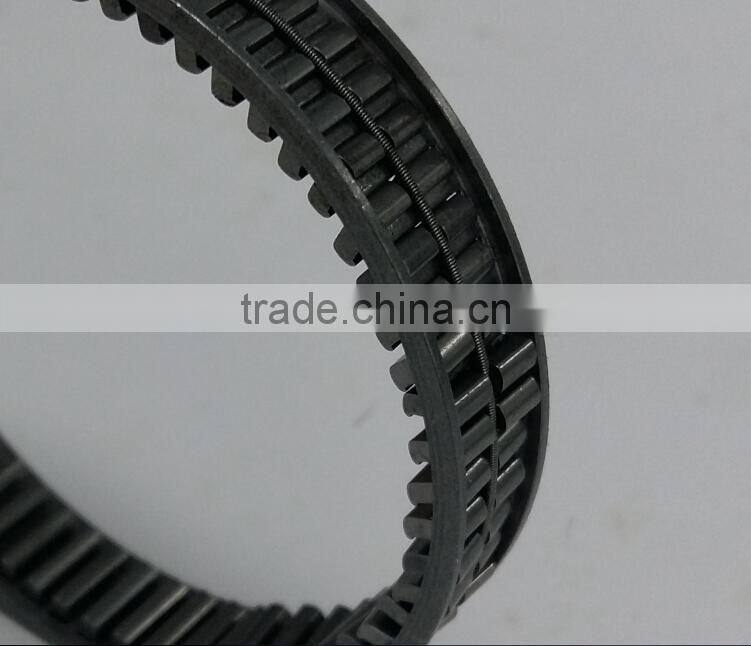

SUMA Bearing FE430Z2 Backstop Clutch Holdback Bearing 1 Way
Description: holdback bearing
Material: Chrome Steel GCr15
Structure: FE series Freewheelclutches transmit or support torque moment by friction contact
in one direction and permit idling in the opposite direction.
Application: indexing, backstop, overrunning
Sample: accept
Delivery time: 5-7 days after order confirmed.
Package: wooden box, carton or customized.
Payment terms: TT, L/C, D/A, D/P, Western Union, Paypal

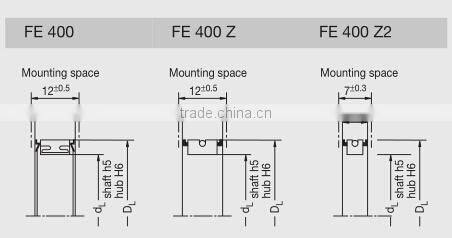

Catalogue of holdback bearing for your choice
| Dimensions [mm] | FE 400 | FE 400 Z | FE 400 Z2 | Idling speed Clutch | ||||
| dL | DL | Part Number | Torque M [N.m] | Part Number | Torque M [N.m] | Part Number | Torque M [N.m] | nmax [RPM] |
| 2 | 10 | FE 410 Z2 | 0.3 | 10,000 | ||||
| 4 | 12 | FE 412 Z | 3 | FE 412 Z2 | 1.8 | 10,000 | ||
| 5 | 13 | FE 413 Z2 | 2.9 | 9,000 | ||||
| 6 | 14 | FE 414 Z | 7 | FE 414 Z2 | 2.6 | 8,500 | ||
| 8 | 16 | FE 416 Z | 12 | FE 416 Z2 | 7.6 | 7,500 | ||
| 14 | 22 | FE 422 | 48 | FE 422 Z | 44 | FE 422 Z2 | 21 | 5,300 |
| 15 | 23 | FE 423 | 55 | FE 423 Z | 48 | FE 423 Z2 | 24 | 5,200 |
| 17 | 25 | FE 425 | 68 | FE 425 Z | 58 | FE 425 Z2 | 30 | 4,700 |
| 19 | 27 | FE 427 | 80 | FE 427 Z | 66 | FE 427 Z2 | 36 | 4,400 |
| 20 | 28 | FE 428 | 87 | FE 428 Z | 75 | FE 428 Z2 | 39 | 4,200 |
| 22 | 30 | FE 430 | 101 | FE 430 Z | 87 | FE 430 Z2 | 46 | 4,000 |
| 24 | 32 | FE 432 | 116 | FE 432 Z | 97 | FE 432 Z2 | 52 | 3,700 |
| 25 | 33 | FE 433 | 124 | FE 433 Z | 107 | FE 433 Z2 | 56 | 3,600 |
| 27 | 35 | FE 435 | 141 | FE 435 Z | 121 | FE 435 Z2 | 64 | 3,400 |
| 29 | 37 | FE 437 | 158 | FE 437 Z | 137 | FE 437 Z2 | 71 | 3,200 |
| 30 | 38 | FE 438 | 168 | FE 438 Z | 144 | FE 438 Z2 | 76 | 3,100 |
| 34 | 42 | FE 442 | 207 | FE 442 Z | 178 | FE 442 Z2 | 93 | 2,800 |
| 35 | 43 | FE 443 | 217 | FE 443 Z | 187 | FE 443 Z2 | 98 | 2,700 |
| 40 | 48 | FE 448 | 272 | FE 448 Z | 235 | FE 448 Z2 | 122 | 2,500 |
| 45 | 53 | FE 453 | 333 | FE 453 Z | 281 | FE 453 Z2 | 146 | 2,200 |
| 50 | 58 | FE 458 | 400 | FE 458 Z | 345 | FE 458 Z2 | 178 | 2,000 |
| 51 | 59 | FE 459 | 414 | FE 459 Z | 357 | |||
| 55 | 63 | FE 463 | 472 | FE 463 Z | 407 | FE 463 Z2 | 202 | 1,900 |
| 60 | 68 | FE 468 | 550 | FE 468 Z | 474 | FE 468 Z2 | 243 | 1,750 |
| 62 | 70 | FE 470 | 583 | FE 470 Z | 502 | 1,700 | ||
| 65 | 73 | FE 473 | 633 | FE 473 Z | 545 | 1,600 | ||
| 70 | 78 | FE 478 | 722 | FE 478 Z | 622 | 1,500 | ||
| 80 | 88 | FE 488 | 914 | FE 488 Z | 788 | 1,300 | ||
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Accept Payment terms are: L/C,D/A,D/P,T/T,Western Union,Money Gram
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the holdback bearing ?
A: Usually holdback bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of holdback bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the holdback bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
