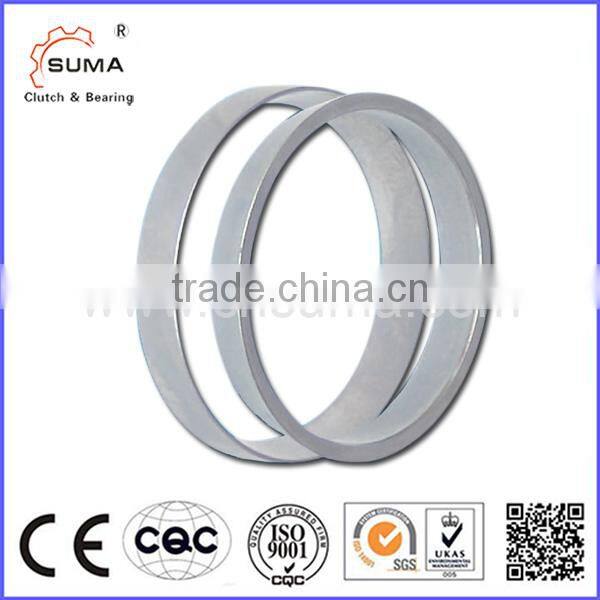

RLK 300 EXpansion Device Sleeve Individual Clamping Connections
- Shanghai; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
RLK 250 L Keyless Locking Assembly Centres the Hub to the Shaft
-
Keyless Locking Assembly RLK 250 Clamping Elements
-
RLK 133 Short Axial Width Clamping Sets Lock-alx
-
Easy to Release Bulging Joining Sleeve RLK 200
-
Expansion Bush RLK 132 Locking Elements With Short Axial Width
-
Locking Parts RLK 130 Clamping Sheath With High Torque
Product Details
| Structure | Disc | Flexible or Rigid | Flexible | |
| Standard or Nonstandard | Standard | Material | Steel | |
| Brand Name | Suma | Place of Origin | Jiangsu, China | |
| Model Number | RLK 300 |
Product Description

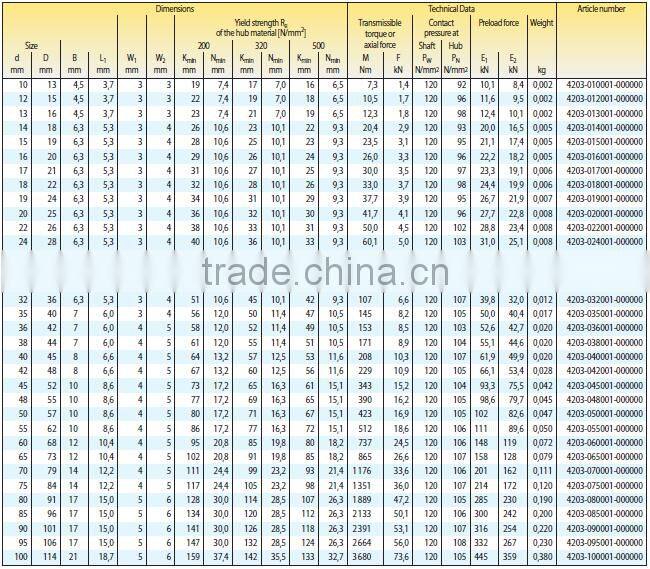

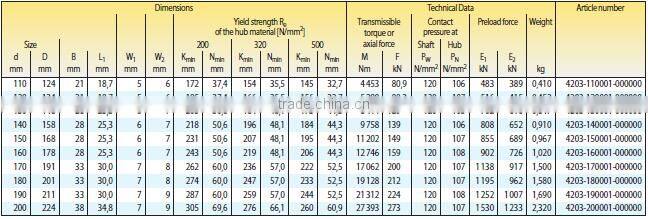

| RLK 300 EXpansion Device Sleeve Individual Clamping Connections | ||
| Details | ||
| Model | RLK300 | |
| Material | steel | |
| Type | cone clamping element | |
| Inner Diameter | 10-200mm | |
| Outer Diameter | 13-224mm | |
| Weight | 0.002-2.320kg | |
| Width | 4.5-38mm | |
| Transmissible torque | 7.3-3-27393Nm | |
| axial force | 1.4-273kN | |
Features
1. For individual clamping connections
2. Compact design
3. For shaft diameters between 10 mm and 200 mm
Specifications
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology
Q: Why do we choose your company?
A: We always insist quality firstl. We have our bearing factory, therefore we have advantage in quality control and price.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.
